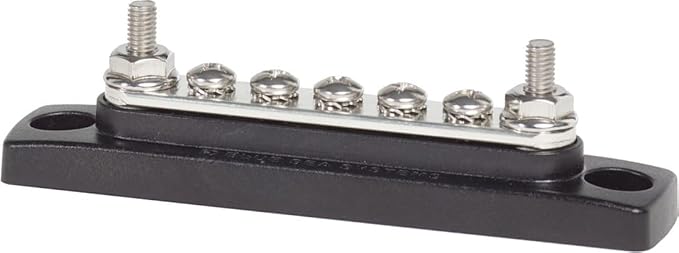

Blue Sea Systems 2304 100 Amp Mini BusBar with 5 screws, One size, Without Cover, Black
Blue Sea Systems 2304 100 Amp Mini BusBar with 5 screws, One size, Without Cover, Black
Regular price
$14.61 USD
Regular price
$14.61 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This
- 100A Mini BusBar with 5 screws (part number 2304)
- Max voltage: 300V AC/ 48V DC, Continuous Rating: 100A AC/DC

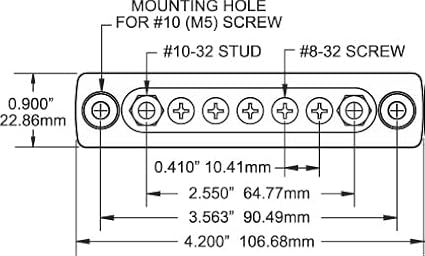

- Terminal Screws: 5 x #8-32, Terminal Studs: 2 x #10-32
- Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance
- 2 mounting holes accept #10 (M5) screws
Overview
- Current Rating : 100 Amps
- Gauge : 1.0
- Connector Type : Multi-Stud
- Number Of Contacts : 7
- Mounting Type : Panel Mount
- Material : Polycarbonate (PC)
- Color : Unspecified
- Brand : Blue Sea Systems
- Voltage : 300 Volts
- Number Of Poles : 2
