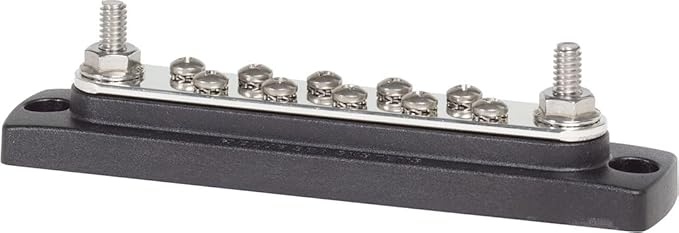

Blue Sea Systems 2301 150 Amp Common BusBar with 10 screws
Blue Sea Systems 2301 150 Amp Common BusBar with 10 screws
Regular price
$29.90 USD
Regular price
$29.90 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This
- 150A Common BusBar with 10 screws (part number 2301)
- Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC

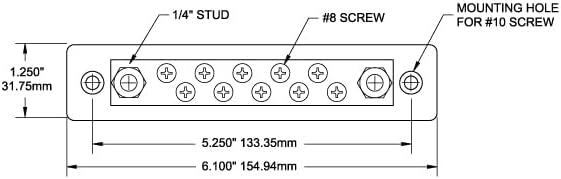

- Terminal Screws: 10 x #8-32, Terminal Studs: 2 x 1/4"-20
- Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance
- 2 mounting holes accept #10 (M5) screws
Overview
- Current Rating : 150 Amps
- Connector Type : Screw
- Number Of Contacts : 2
- Mounting Type : Surface Mount
- Color : Unspecified
- Brand : Blue Sea Systems
- Voltage : 300 Volts, 48 Volts
- Number Of Poles : 2
- Specification Met : Ul 94-vo Rated
- Number of Items : 1
