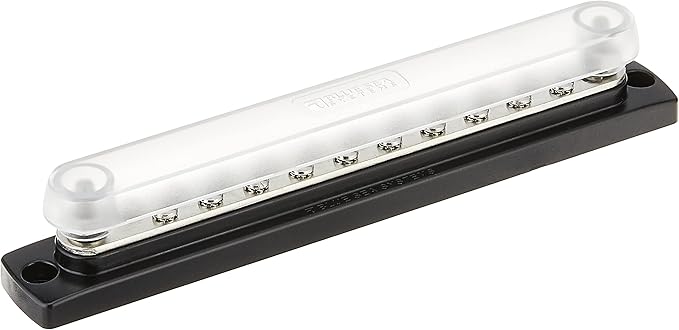

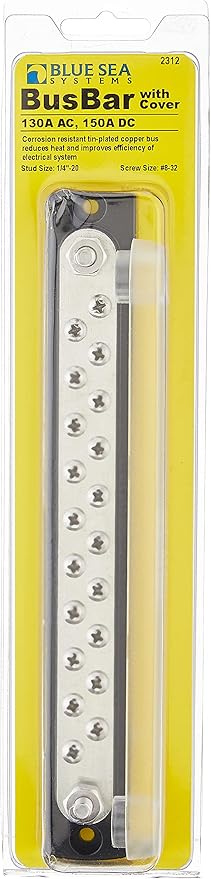

Blue Sea Systems 2312 BUSBAR 150 AMP 20X8-32 W/COVR
Blue Sea Systems 2312 BUSBAR 150 AMP 20X8-32 W/COVR
Regular price
$44.78 USD
Regular price
$44.78 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This

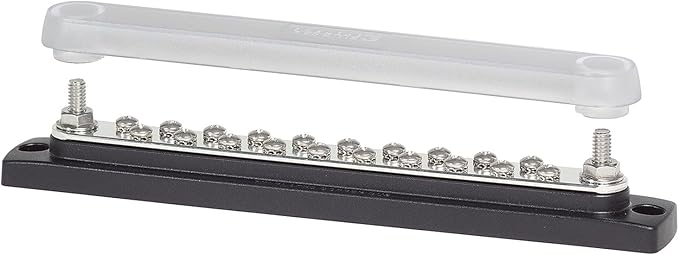

- 150A Common BusBar with 20 screws and a cover (part number 2312)
- Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC
- Terminal Screws: 20 x #8-32, Terminal Studs: 2 x 1/4"-20
- Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance
- 2 mounting holes accept #10 (M5) screws
Overview
- Current Rating : 150 Amps
- Gauge : 1/4"-20
- Connector Type : Screw
- Number Of Contacts : 20
- Mounting Type : Wall Mount
- Material : Tin-Plated Copper, Glass Reinforced Polycarbonate
- Color : Unspecified
- Brand : Blue Sea Systems
- Voltage : 300 Volts
- Number Of Poles : 2
