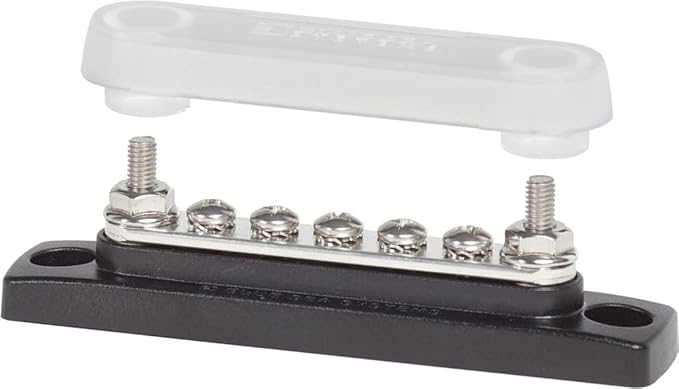

Blue Sea Systems 2314 100 Amp Mini BusBar with 5 screws and a cover

Name: Blue Sea Systems 2314 100 Amp Mini BusBar with 5 screws and a cover
Brand: BlueSeaSystems
SKU: B000OTJ89Q
Price: 26.16 USD
Availability: InStock

$26.16 USD

Shipping calculated at checkout.

Quantity

About This

100A Mini BusBar with 5 screws and a cover (part number 2314)
Max voltage: 300V AC/ 48V DC, Continuous Rating: 100A AC/DC

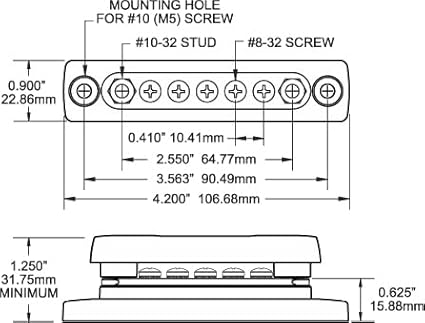

Terminal Screws: 5 x #8-32, Terminal Studs: 2 x #10-32
Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance, cover made with clear polycarbonate
2 mounting holes accept #10 (M5) screws

Overview

Current Rating : 100 Amps
Connector Type : Screw
Number Of Contacts : 5
Mounting Type : screw mount
Color : Unspecified
Brand : Blue Sea Systems
Voltage : 12 Volts
Number Of Poles : 5
Specification Met : CE, UL
Number of Items : 1
