Blue Sea Systems 2307 150 Amp Common BusBar with 4 studs and a cover, With Cover, 150A

Name: Blue Sea Systems 2307 150 Amp Common BusBar with 4 studs and a cover, With Cover, 150A
Brand: BlueSeaSystems
SKU: B0051P1L52
Price: 36.16 USD
Availability: InStock

$36.16 USD

Shipping calculated at checkout.

Quantity

About This

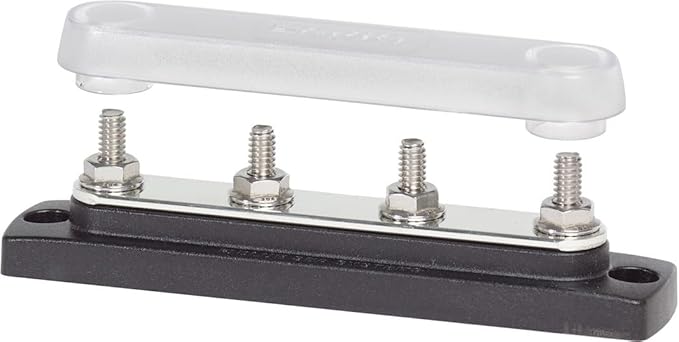

150A Common BusBar with 4 studs and a cover (part number 2307)
Max voltage: 300V AC/ 48V DC, Continuous Rating: 130A AC/ 150A DC
Terminal Studs: 4 x 1/4"-20
Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity and corrision resistance

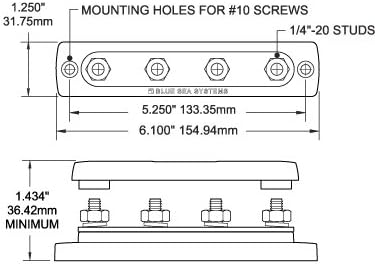

2 mounting holes accept #10 (M5) screws

Overview

Current Rating : 150 Amps
Item Pitch : 0.25 Inches
Connector Type : Screw
Number Of Contacts : 4
Mounting Type : Screw Mount
Material : Copper
Color : Unspecified
Brand : Blue Sea Systems
Voltage : 300 Volts
Number Of Poles : 4

View full details
