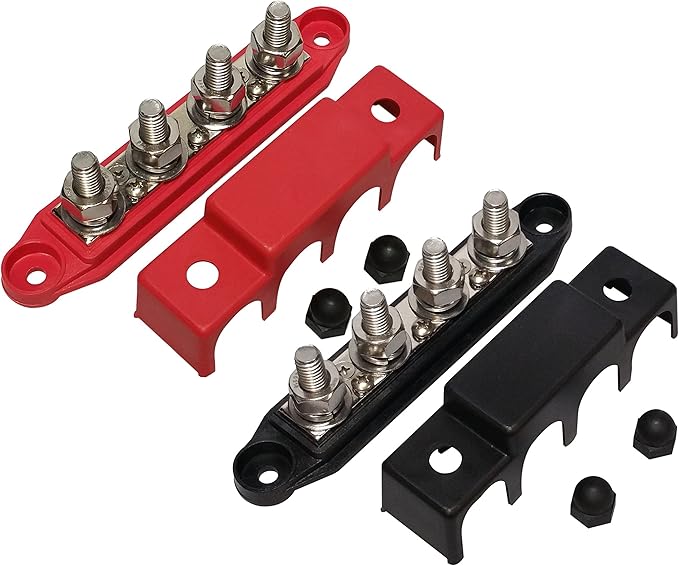

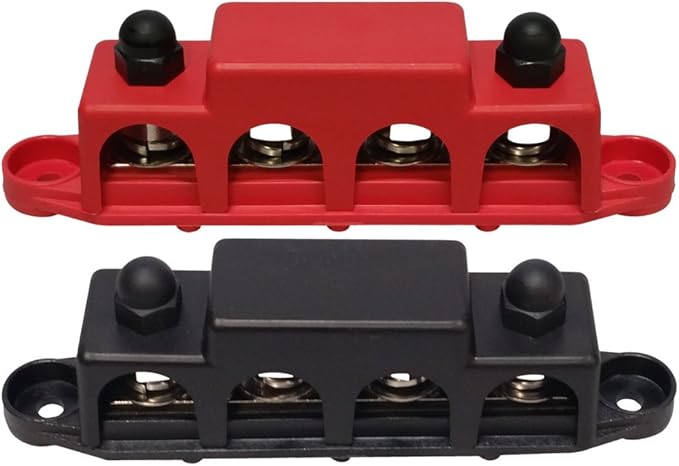

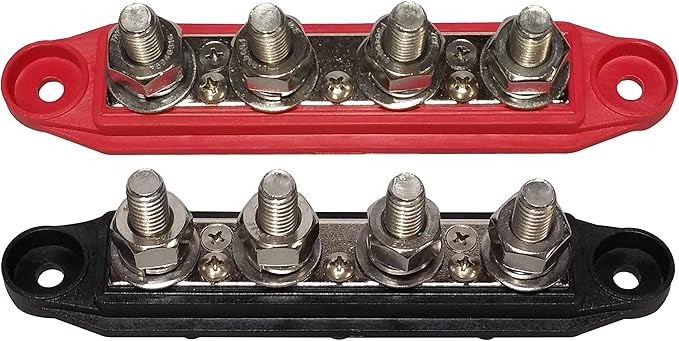

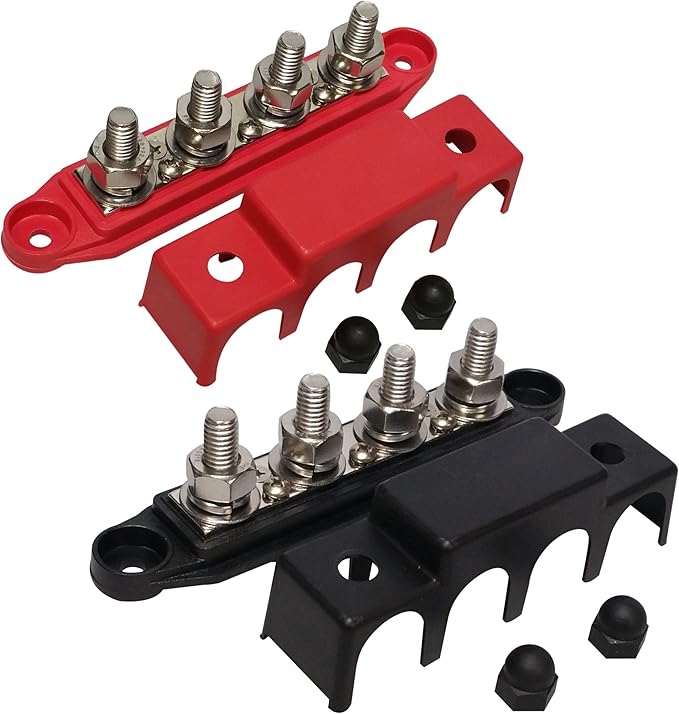

(Red & Black) 3/8" 4 Stud Bus BAR Power Distribution Block - Made in The USA - for Marine Battery Terminals, 12v Power and Ground Distribution Blocks - Terminal Block for Battery Terminals - BusBar

(Red & Black) 3/8" 4 Stud Bus BAR Power Distribution Block - Made in The USA - for Marine Battery Terminals, 12v Power and Ground Distribution Blocks - Terminal Block for Battery Terminals - BusBar

Regular price $62.38 USD
Regular price $62.38 USD Sale price
Shipping calculated at checkout.

About This

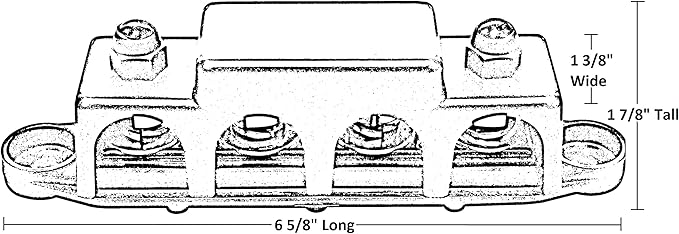

  • MADE IN THE USA - This Busbar Measures approximately 1 3/8” Wide x 1 7/8” Tall x 6 5/8” Long
  • Nickel Plated Brass Contact Plate For Optimal Current Transfer And Weather Resistance. Glass-Filled Nylon Base For Superior Insulation And Strength
  • Stainless Steel Hardware For Extreme Conditions Including Use In Marine Environments - Detachable Cover Included To Protect Connections. WE RECOMMEND A SMALL AMOUNT OF NICKEL ANTI SEIZE BE APPLIED TO THE THREADS TO PREVENT GALLING
  • 4 Stainless Steel 3/8" Studs Per Block Making This Busbar Suitable For a Variety Of Applications
  • Max Amperage: 250 amps @ 12 vdc, Max Volts: 48 vdc

Overview

  • Current Rating : 250 Amps
  • Item Pitch : 5.7 Inches
  • Connector Type : Screw
  • Number Of Contacts : 4
  • Mounting Type : DIN Rail Mount
  • Material : Glass, Stainless Steel
  • Color : Red & Black
  • Brand : JQuad
  • Voltage : 48 Volts
  • Number Of Poles : 4
