1 5

JQuad

(Red & Black) 5/16" 4 Stud Bus BAR Power Distribution Block - Made in The USA - for Marine Battery Terminals, 12v Power and Ground Distribution Blocks - Terminal Block for Battery Terminals - BusBar

(Red & Black) 5/16" 4 Stud Bus BAR Power Distribution Block - Made in The USA - for Marine Battery Terminals, 12v Power and Ground Distribution Blocks - Terminal Block for Battery Terminals - BusBar

$62.38 USD
$62.38 USD
Shipping calculated at checkout.

About This

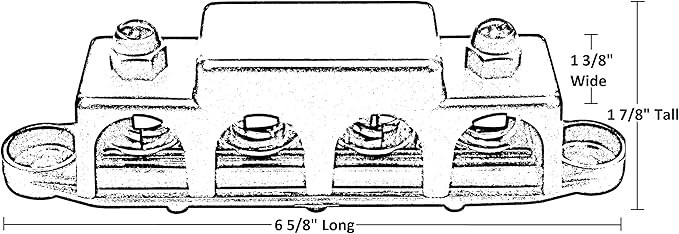

  • MADE IN THE USA - This Busbar Measures approximately 1 3/8” Wide x 1 7/8” Tall x 6 5/8” Long
  • Nickel Plated Brass Contact Plate For Optimal Current Transfer And Weather Resistance. Glass-Filled Nylon Base For Superior Insulation And Strength

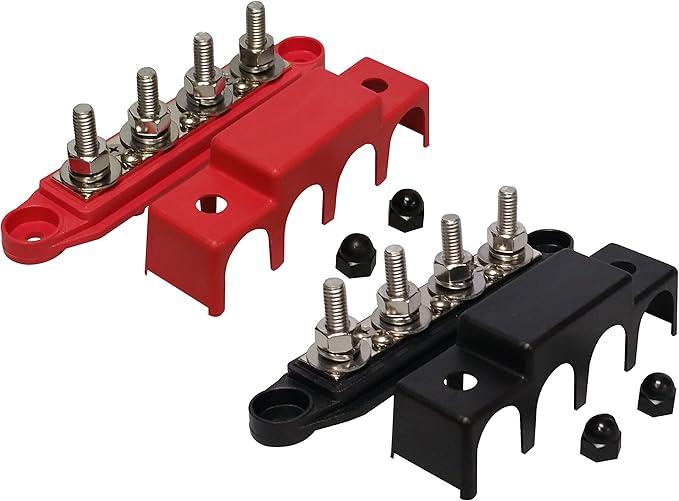

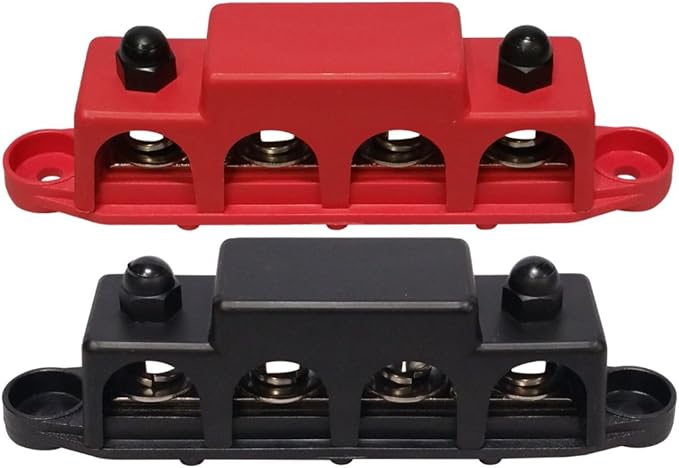

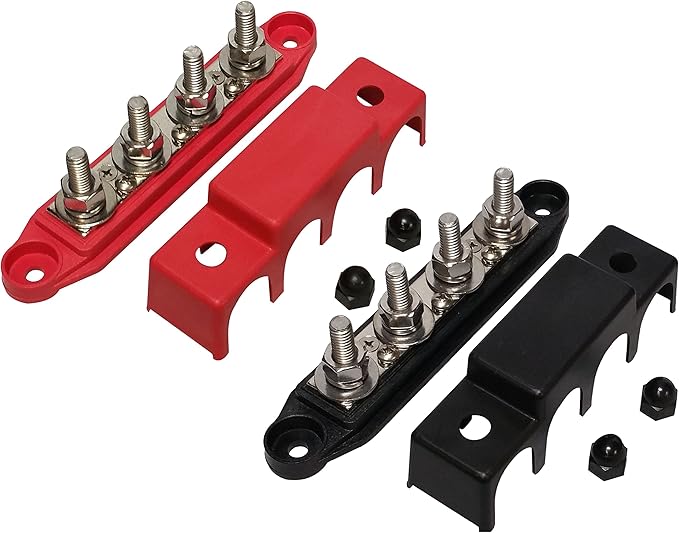

  • Stainless Steel Hardware For Extreme Conditions Including Use In Marine Environments - Detachable Cover Included To Protect Connections

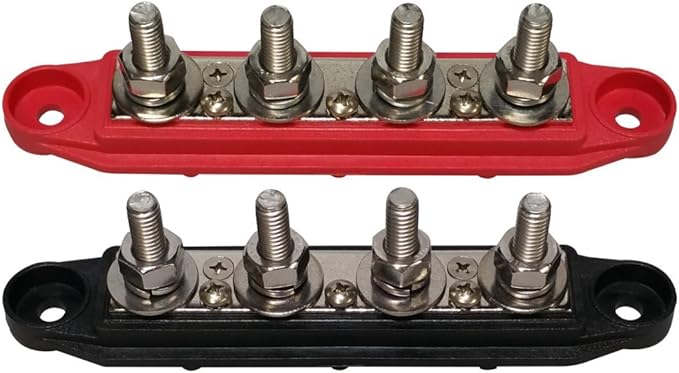

  • 4 Stainless Steel 5/16" Studs Per Block Making This Busbar Suitable For a Variety Of Applications
  • Max Amperage: 250 amps @ 12 vdc, Max Volts: 48 vdc

Overview

  • Current Rating : 250 Amps
  • Connector Type : Screw
  • Number Of Contacts : 4
  • Mounting Type : Fixed Mount
  • Material : Glass, Stainless Steel
  • Color : Red & Black
  • Brand : JQuad
  • Voltage : 48 Volts
  • Number Of Poles : 4
  • Product Dimensions : 6.63"W x 1.88"H
View full details
