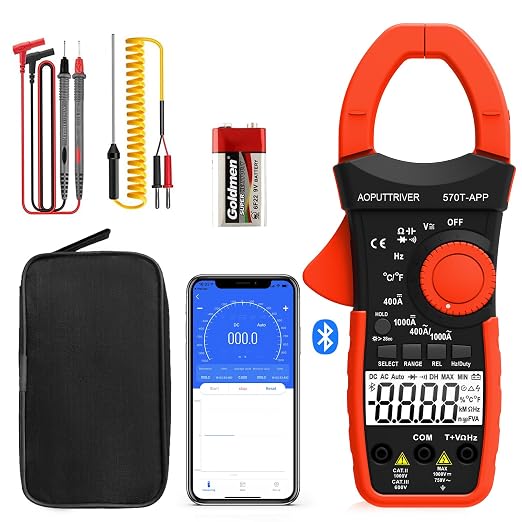

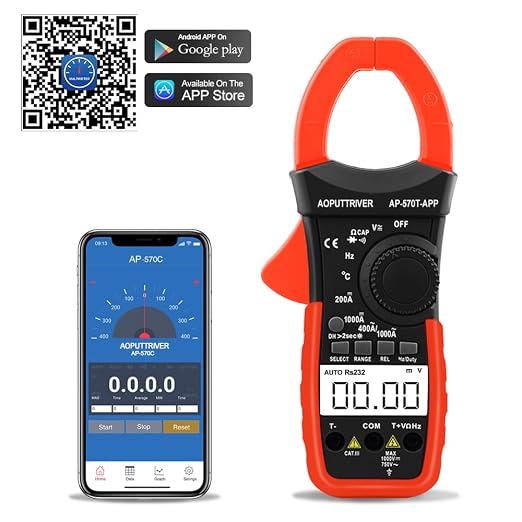

【Data Output Function】The AP-570TAPP clamp meter features serial data output capability, enabling recording, analysis, and processing via a mobile app. Before using this function, scan the QR code in the manual to install the mobile app (compatible with iPhone 4S running iOS 7.0 or Android 4.3.0 and above).
【DC/AC Clamp Meter】4000-count auto-ranging clamp meter with measurement ranges up to 400A/1000A, resolution of 100mA/1A; AC/DC voltage measurement upper limit 1000V; Resistance measurement upper limit 60MΩ; Capacitance measurement upper limit 200μF; Temperature measurement range -4 to 1832°F (switchable °C/°F); 250V DC or AC RMS. Note: Cannot measure low currents; requires greater than 1A.
Capacitance Measurement: Before testing, discharge the capacitor under test. When measuring high-capacitance components, stabilization may take extended periods (e.g., approximately 10 seconds for a 100μF capacitor).When measuring low-capacitance components (≤1μF), press the “REL” key to clear the reading before testing to eliminate the influence of open-circuit residual values on the measurement.
【Certification and Overload Protection】The AP-570T-APP clamp meter is certified for double insulation, pollution degree 2, and overvoltage category CAT II 1000V or CAT III 600V. Overload protection for 250V DC or AC RMS.

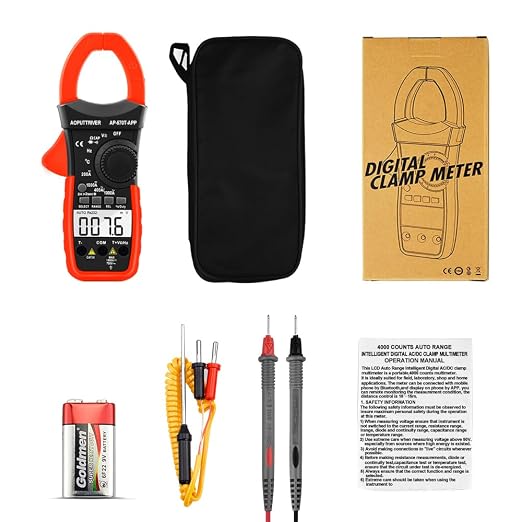

【What Included】 Package includes 1*Clamp Meter/2* Test Leads/1* Temperature Probe/1* Carrying Case and 1* Instruction Manual,1* Small Screwdriver,1* 9V(6D22) Battery
