About This

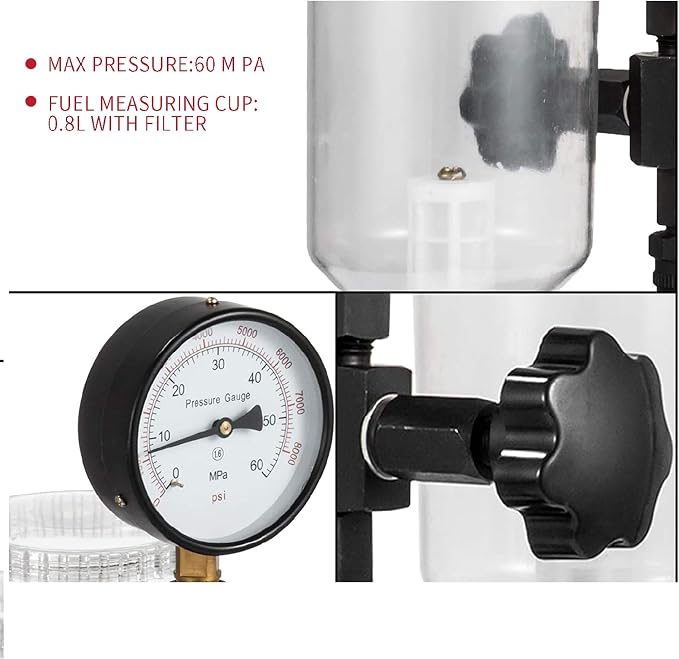

• With precision dual scale gauge, the measuring value range from 0-600 bar/ 0-8000 psi, Max test pressure up to 60M Pa. (100 mm Dial, 3/8" BSP thread.) The transparent fuel measuring cup can hold 0.8L oil, and with the filter to help conduct kinds of injector nozzles tests.

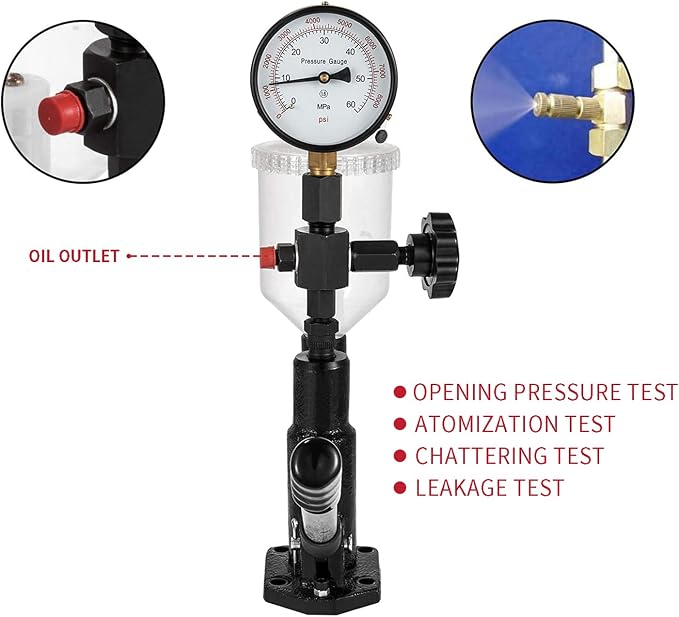

• Our diesel injector tester is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization. With such a multifunctional test capability, the diesel injector tester is the ideal tool for the examination of auto diesel injectors.

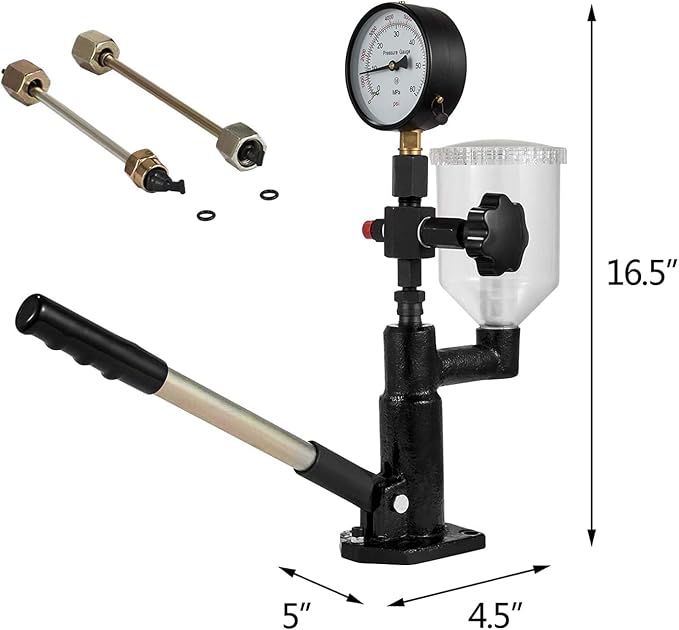

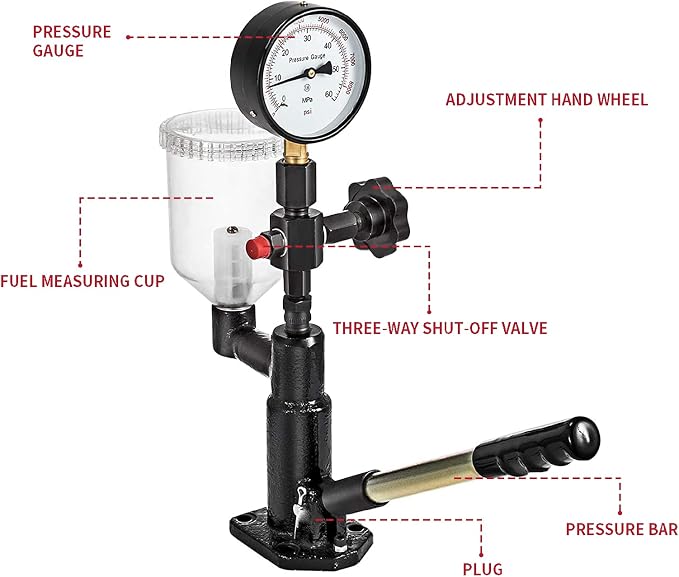

• The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two extra oil pipes are included in the package for your testing use.

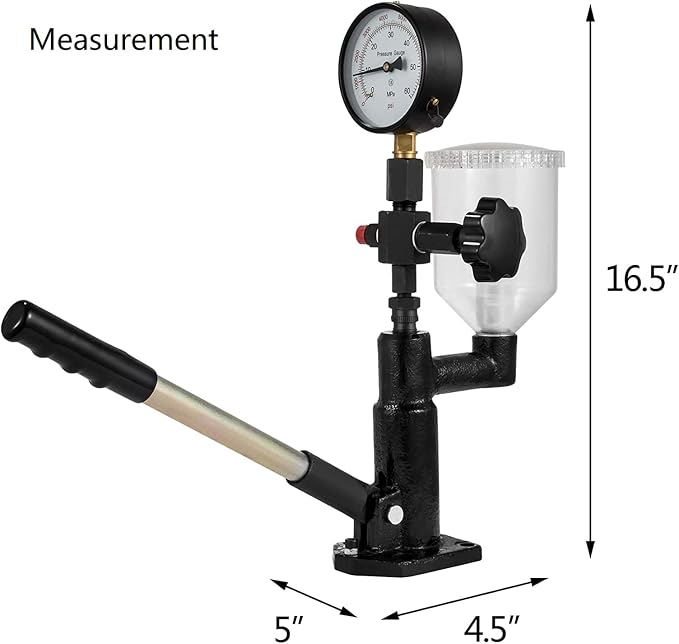

• Large engine compression tester features a solid 4.5 x 3.5-inch mountable base, a 4-inch dual scale gauge, and a rotating handle; Kit also includes an attachable 15.5-inch long lever with 4.5-inch rubber grip, a 6.5 x 4.5-inch semi-clear fuel container, and 3 high-pressure nozzles

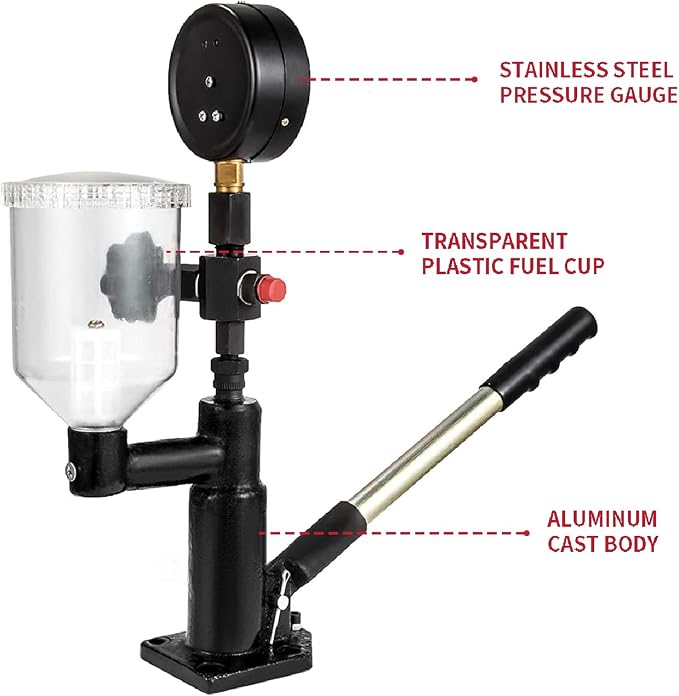

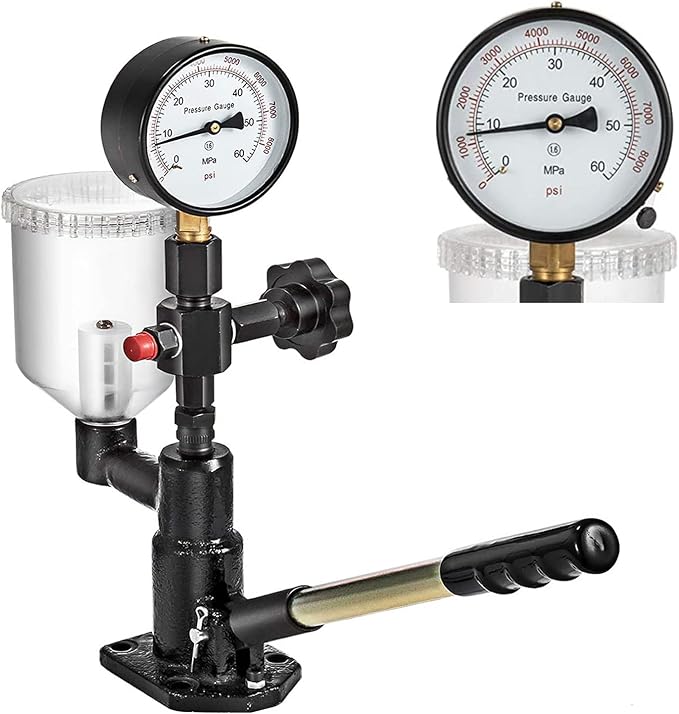

• Brass Bourdon tube Pressure gauge - 100 mm Dial, 3/8 " BSP thread Dual Scale Gauge Range:0 - 60 Mpa & 0 - 8000 PSI (See image 2 Above) High pressure pipes 'A' and 'B' type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections
