About This

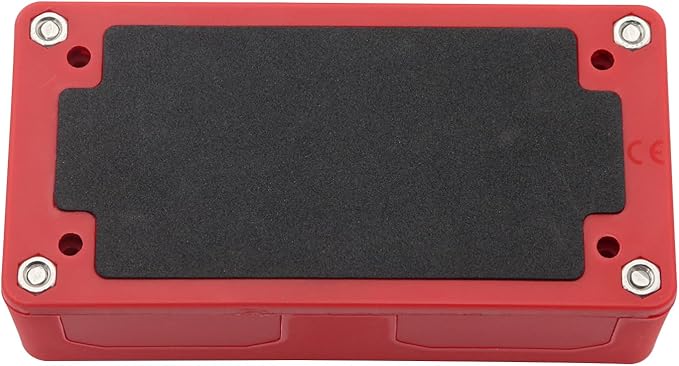

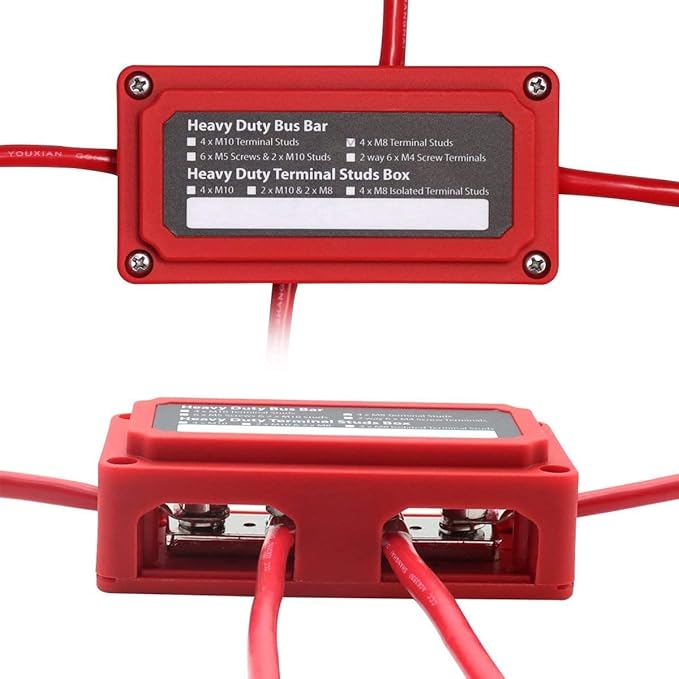

• The Power Distribution Block Bus Bar with 4 x 5/16" (M8) stud posts;
• Max. Current: 300 Amp at 12V DC per connection. Max. voltage is 48V DC

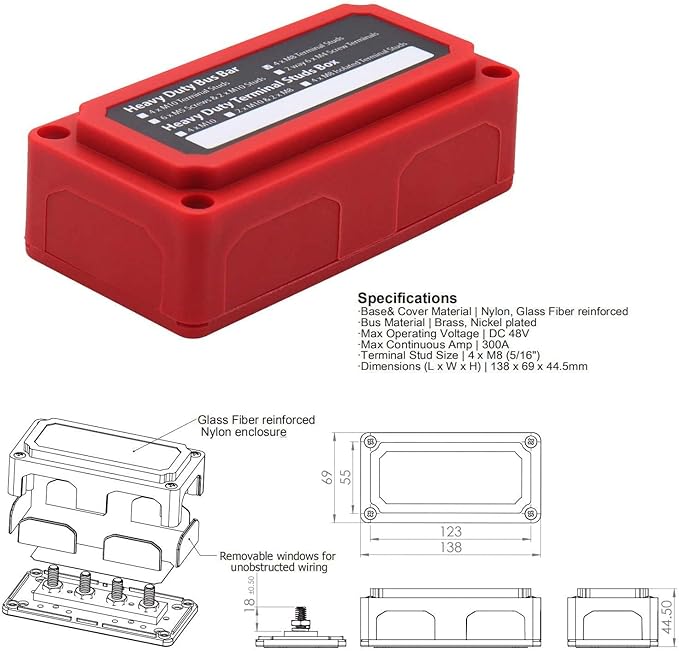

• The Battery Bus Bar Box Dimension (L x W x H): 5.433"x 2.72"x 1.75" (138 x 69 x 44.5mm)
• 6mm thicker Brass bus bar plate with stainless steel studs and nuts
• Common Bus Bar Box: widely fit for automotive, car, stereo setup, RVs, PV system, truck, trailer, solar, battery bank, off-grid, boat, yacht, marine, home, and industry max 48V DC electrical systems and more

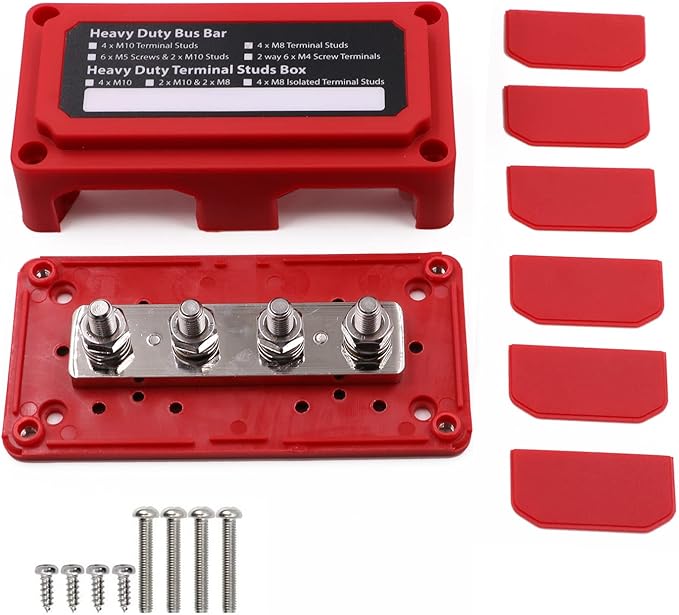

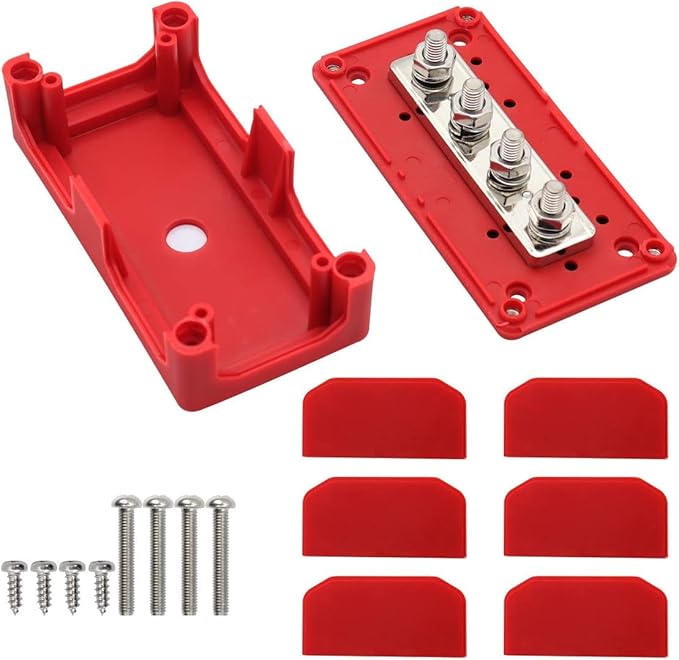

• The Heavy Duty Busbar box with Six sides removable plates. You can remove the plates or drill hole on plate to let wires and terminals go through very easy and prevent short circuit, which makes your wiring more secure and reliable

Overview

• Current Rating : 300 Amps
• Connector Type : Screw
• Number Of Contacts : 4
• Mounting Type : surface
• Material : Base& Cover Material: Nylon, Glass Fiber reinforced., Bus /Hex Nut Material: Brass, Nickel plated., Stud& Screw Material: Stainless Steel Base& Cover Material: Nylon, Glass Fiber reinforced., Bus /Hex Nut Material: Brass, Nickel plated., Stud& Screw Material: Stainless Steel
• Color : 300A- 4x5/16" (M8) - Red
• Brand : Gloaso
• Voltage : 12 Volts (DC)
• Number Of Poles : 4
• Product Dimensions : 1.75"W x 2.72"H
