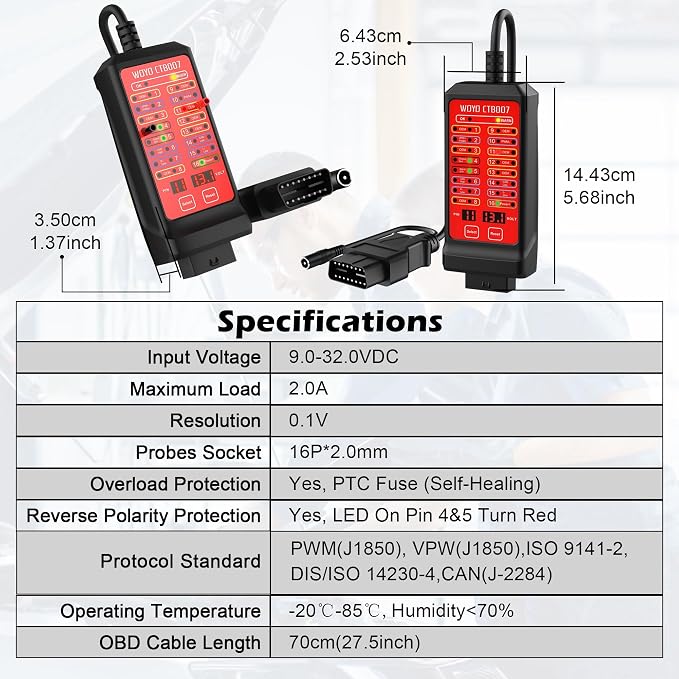

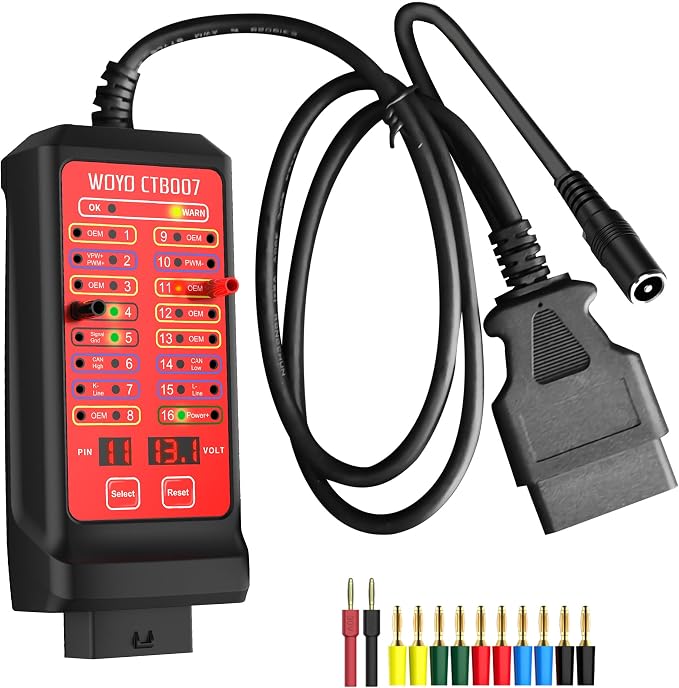

OBD2 Breakout Box, WOYO CTB007 12V/24V CAN Tester Box with 27 inches OBD Extension Cable, Digital VPP Voltage of 16 PINs, Automotive OBD2 Diagnostic Tool OBDII Protocol Communication Detector

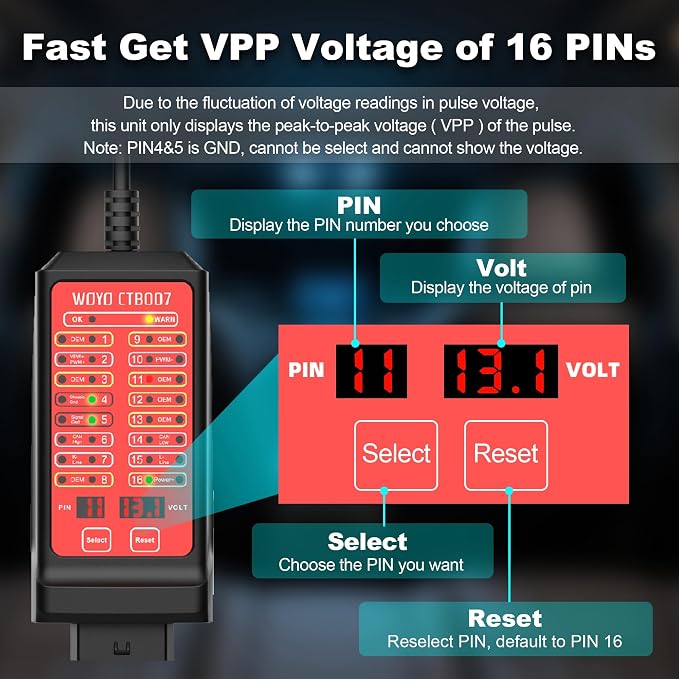

Digital LCD Displays VPP Voltage of 16 PINs: CTB007 supports to select the PIN number to read the real-time VPP voltage directly, can save your time to get the voltage.

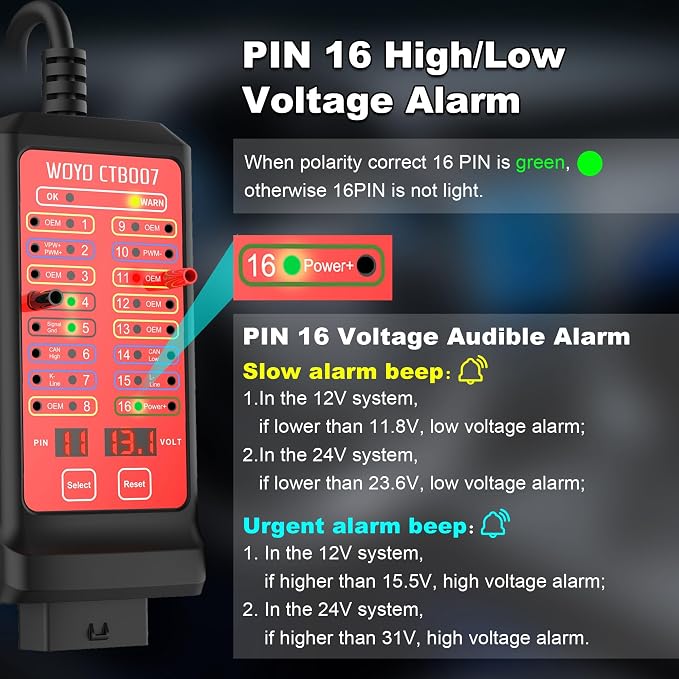

PIN 4&5 Grounding Detection & PIN 16 High or Low Voltage Alarm: CTB007 has reverse polarity protection, LED on PIN 4& 5 turn red. Before other diagnostic devices was connected to the DLC, testing the DLC (OBD2 port) if any abnormality. If there is a short circuit or polarity reverse connected, this can avoid diagnostic scan tool be damaged.

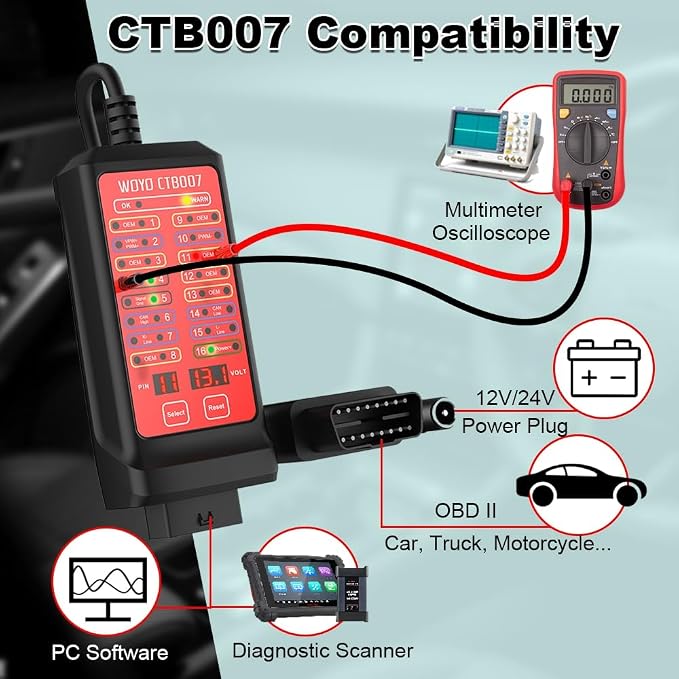

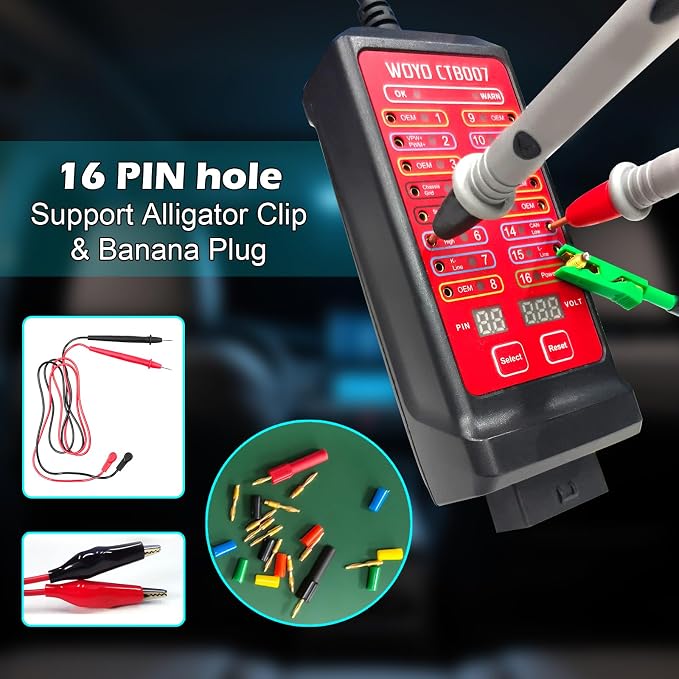

Compatible with Universal Diagnostic Tools: Equipped with a standard 16-pin connector, it can be used with devices such as multimeters and oscilloscopes when paired with an jumper cable. The standard OBD2 female connector also supports universal OBD2 scanners and diagnostic software on PCs or laptops.

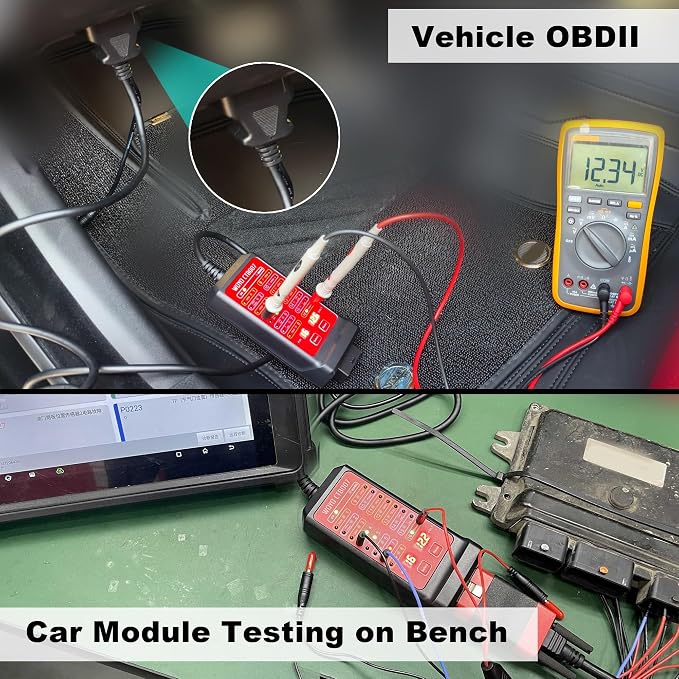

Support Vehicle Protocol Standard: PWM(J1850)、VPW（J1850）、ISO 9141-2、DIS/ISO 14230-4、CAN(J-2284). Compatible with cars, motorcycles, trucks with an OBD2 port. Also support CAN BUS/ K-Line. So the automotive technician can test the CAN BUS module on bench.

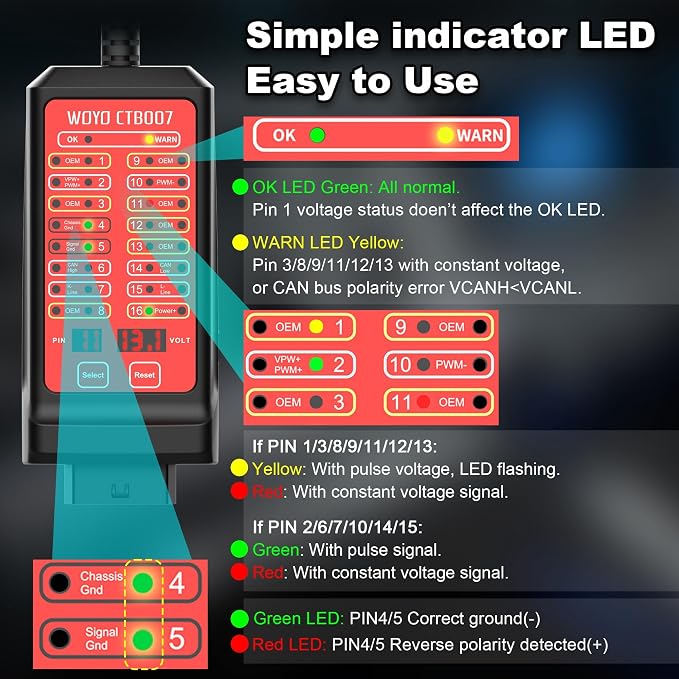

Easy to use for Mechanics or DIY Car Owners Beginners: A. CTB007 package with English user manual with detailed description of pin-to-indicator light correspondence, indicating whether pins carry pulse signals or constant voltage signals, and also detecting incorrect CAN bus polarity. B. 70cm, 27.5inches line length, easy to use and storage.
