About This

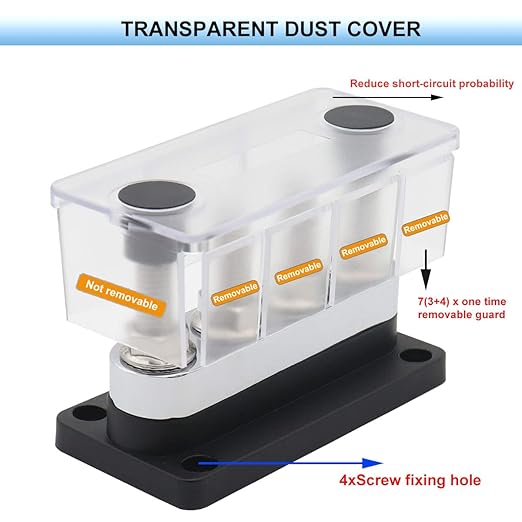

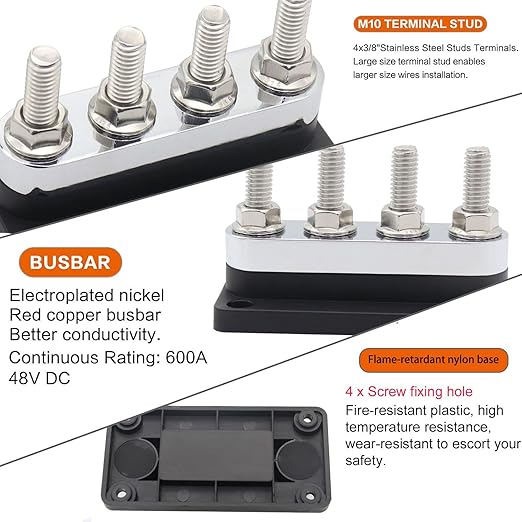

• 1, Heavy Duty Module& Marine Busbar: a 0.47inch/ 12mm thickened Nickel-Plated Copper plate support the 12V-48V battery distribution block has high conductivity and security for your high power applications. Nylon,Glass Fiber reinforced and PC made Base and Cover that ensures great mechanical strength and durability. Stainless steel screws and nuts for improved corrosion and rust resistance in salt water or corrosive environments

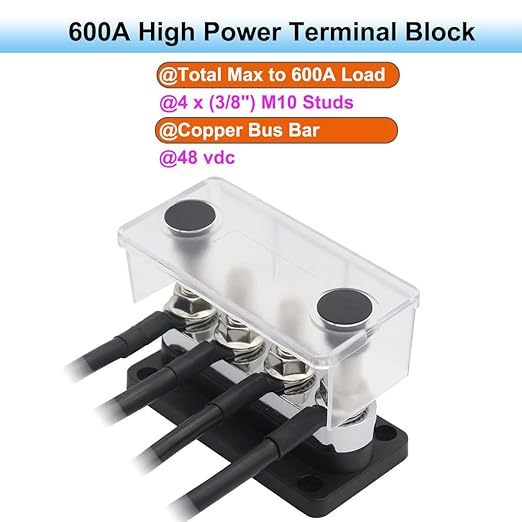

• 2, The Continuous Rating of the 4-posts power distribution block bus bar is 600 A . The max. voltage is 48V DC
• 3, Ideal for Multiple Batteries Wiring Configurations: Our 600 Amp bus bar terminal block with 4x 3/8" (M10) bolts Terminals, more connection points for the black negative pole, removable sides for easy wiring configuration
• 4, Wide Application: The 600Amp Terminals busbars with Cover is universally wiring your custom power bank, camp trailer project, car, stereo setup, RV, vehicle, trucks, marine, yacht, PV system, fresh or salt water boats, solar panel to consolidate, distribute or protect your electrical system. Solid Performance for High Power Applications

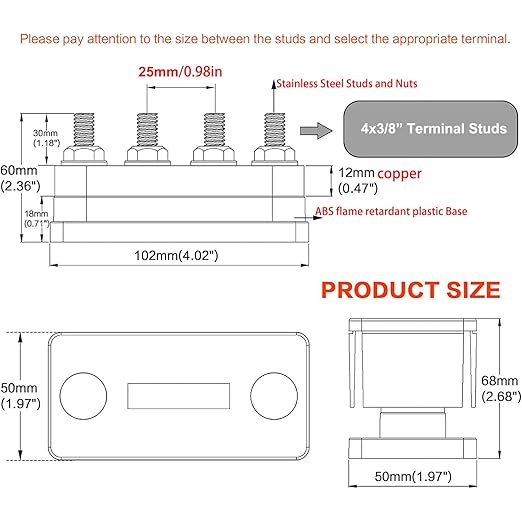

• 5, The 12 Volt Battery Terminal Block Bus Bar Box Dimension (L x W x H): 4.02X 1.97 X 2.36inch( 102X 50X 60mm)
• 6, Gauge Cable Fit: The bus bar box is rated for 600 amps and the threaded stud is 3/8"( M10). Any gauge wire will work as long as the terminal end has a 3/8" Lug and the combined amp draw of all connected wires do not exceed 600amps.
• 7, Safe Note: a, the wire and over current protection is sized based on the load; b, Make sure the Lug can work with 600A current
• 8, Easy to Install, Horizontal drilling installation, includes screws. The 4-ways Power Busbar cleaned up your electrical systems wiring

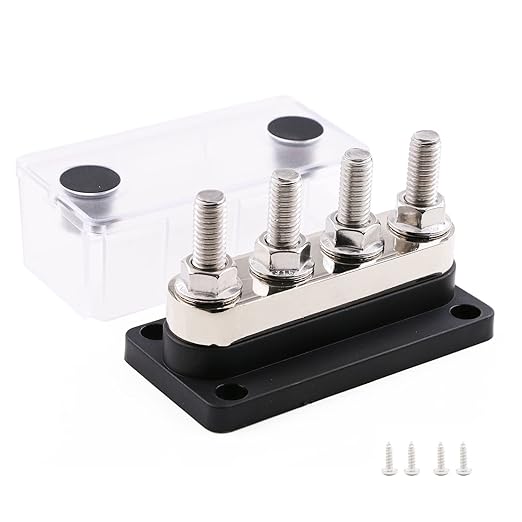

• 9, What You Get: 1x 600A ground bus bar with 4x 3/8" studs terminal( black), 1x cover, 4x Screws
• 10, The Busbars are Climate Friendly. Safer Chemicals. contain Recycled Materials. Worker well-being. Economical Package

Overview

• Current Rating : 600 Amps
• Connector Type : Screw
• Number Of Contacts : 16
• Mounting Type : Panel Mount
• Material : Nickel -plated Copper bus, Nylon, Glass Fiber reinforced and PC base, Stainless Steel Studs
• Color : Black
• Brand : Gloaso
• Voltage : 48 Volts (DC)
• Number Of Poles : 4
• Product Dimensions : 4.02"W x 2.68"H
