Bus Bar Copper 12V-48V DC 600A High Current Busbar Distribution Blocks with 4X 3/8" Posts Electrical Terminals, Heavy Duty Positive& Negative Ground Battery Buss Bars, Red&Black 2 Pack

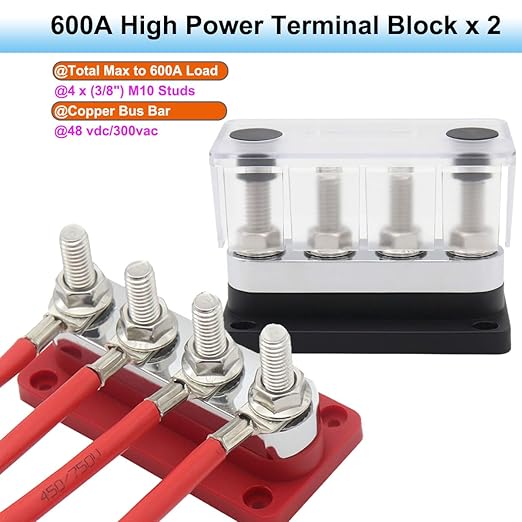

Highest amperage rated bus bar 600A with 3/8" terminal studs
The max. voltage is 48V DC
Bus Material: plate with nickel Copper. The thickened Copper bar( 12mm/ 0.47inch)

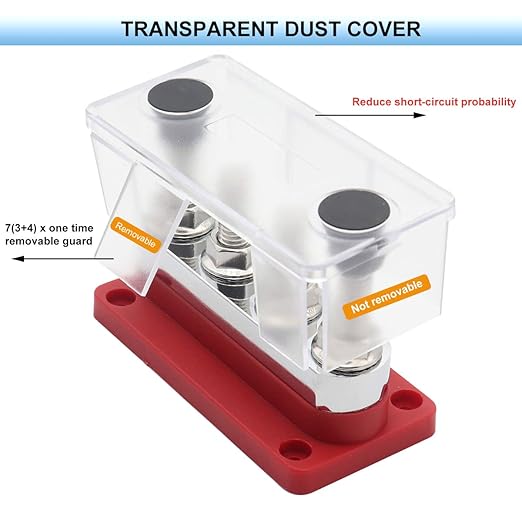

Base& Cover Material : Nylon,Glass Fiber reinforc and PC

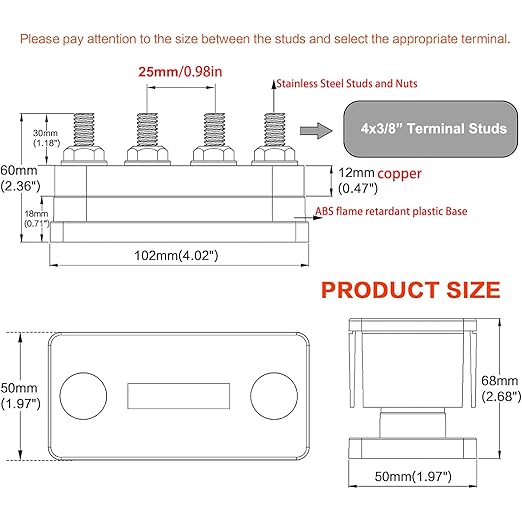

Dimensions : 4.02X 1.97 X 2.36inch( 102X 50X 60mm). Easy to Install, Horizontal drilling installation, includes screws.
Common Bus Bar Distribution Box: widely fit for automotive, car, stereo setup, RVs, PV system, truck, trailer, solar, battery bank, off-grid, boat, yacht, marine, home, and industry max 48VDC electrical systems and more

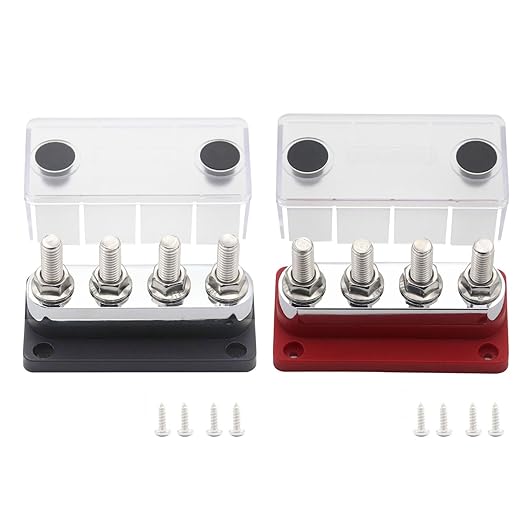

What You Get: 1x 600A positive bus bar with 4x 3/8" studs terminal( red), 1x 600A ground bus bar with 4x 3/8" studs terminal( black), 2x covers( transparent), 8x Screws
Overview
Current Rating : 600 Amps
Item Pitch : 0.38 Inches
Connector Type : Screw
Number Of Contacts : 4
Mounting Type : Surface-mount

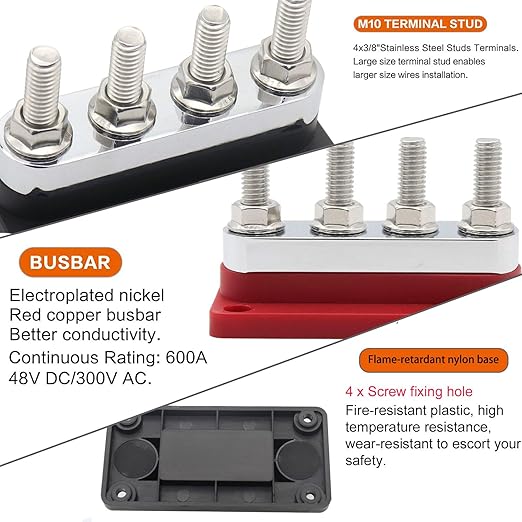

Material : Base: Nylon,Glass Fiber reinforced and PC, Bus: Nickel -plated Copper, Stud: Stainless Steel
