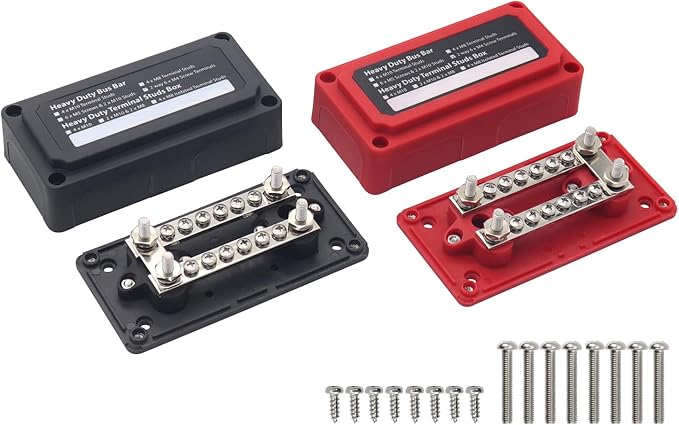

Bus Bar 12V-48V DC 100A Power Distribution Blocks Heavy Duty Module 4X 1/4" Posts+ 12x 5/32" Screws Terminals Double Rows Busbars, 100 Amp Battery Buss Bar with Cover, Red&Black 2 Pack
The Power Distribution Block Bus Bar with 4x 1/4" (M6)stud posts and 12x 5/32"(M4)Screws;
Max. Current: 300 Amp at 12V DC per connection. Max. voltage is 48V DC

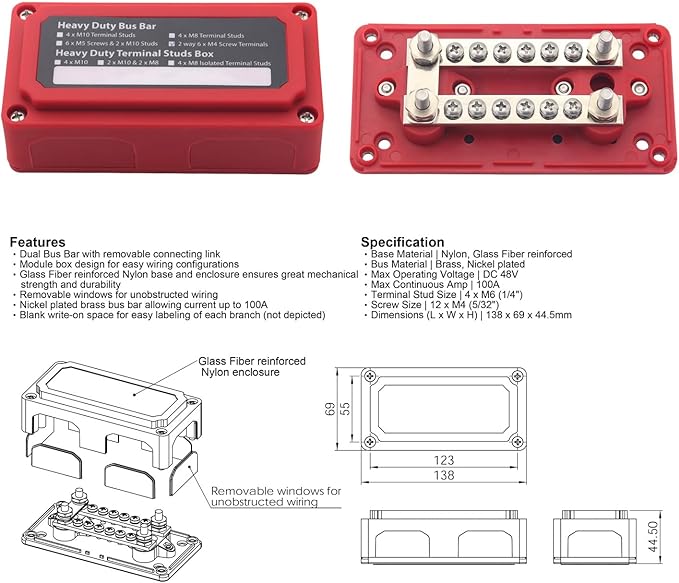

The Battery Bus Bar Box Dimension (L x W x H): 5.433"x 2.72"x 1.75" (138 x 69 x 44.5mm)

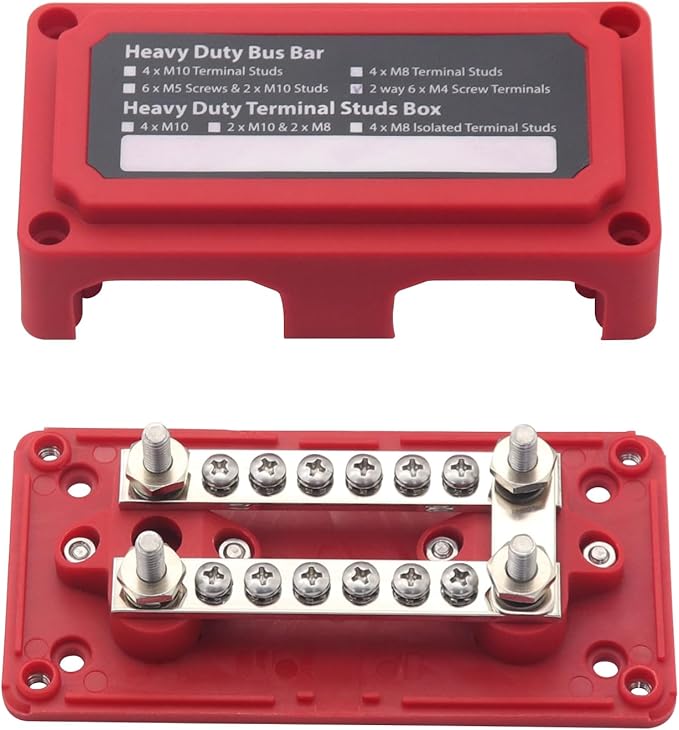

3.2mm thicker Brass bus bar plate with stainless steel studs and nuts

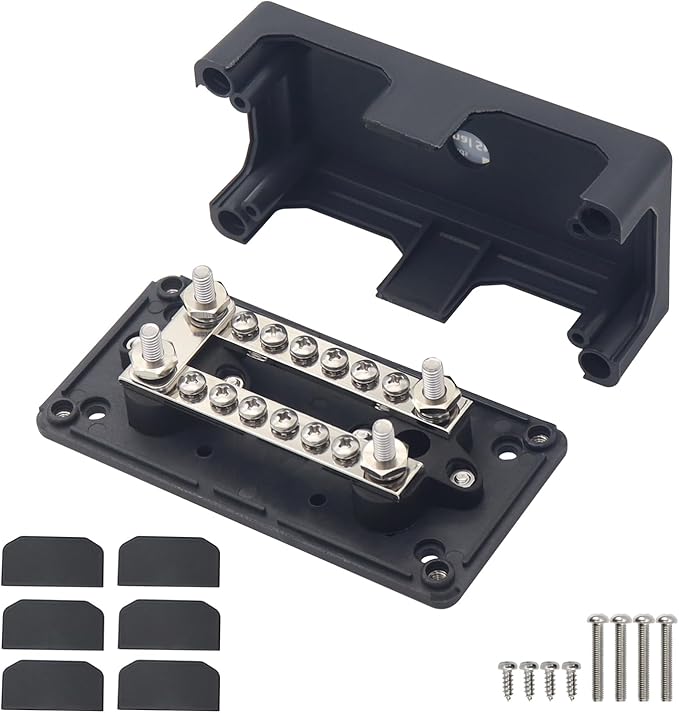

The Heavy Duty Busbar box with Six side removable plates. You can remove the plates or drill hole on plate to let wires and terminals go through very easy and prevent short circuit, which makes your wiring more secure and reliable
The Busbars are Climate Friendly. Safer Chemicals. contain Recycled Materials. Worker well-being. Economical Package
Overview
Current Rating : 100 Amps
Item Pitch : 0.13 Inches
Connector Type : Screw
Number Of Contacts : 16
Mounting Type : Surface Mount
Material : Base & Cover Material: Nylon, Glass Fiber reinforced, Bus Material: Brass, Nickel plated, Stud and Screws: Stainless Steel
Base & Cover Material: Nylon, Glass Fiber reinforced, Bus Material: Brass, Nickel plated, Stud and Screws: Stainless Steel
