About This

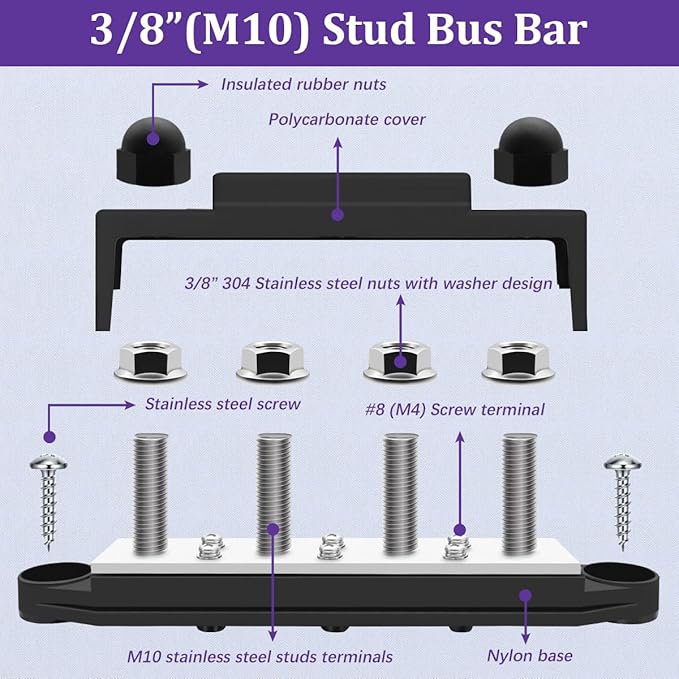

• Material: The bus bar is composed of brass bottom plate and 304 stainless steel screw terminals, which is not easy to rust; The protective sleeve and base are made of nylon, which is flame retardant, can prevent electrical short circuit and is safer

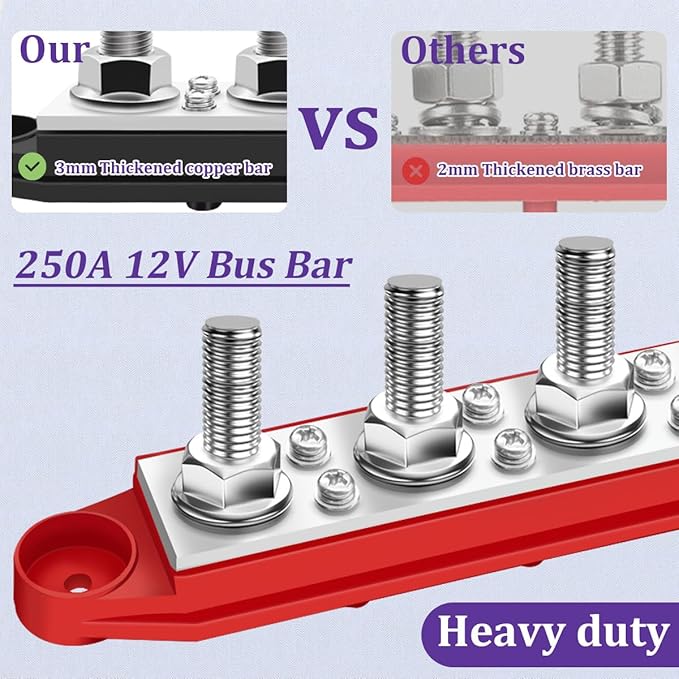

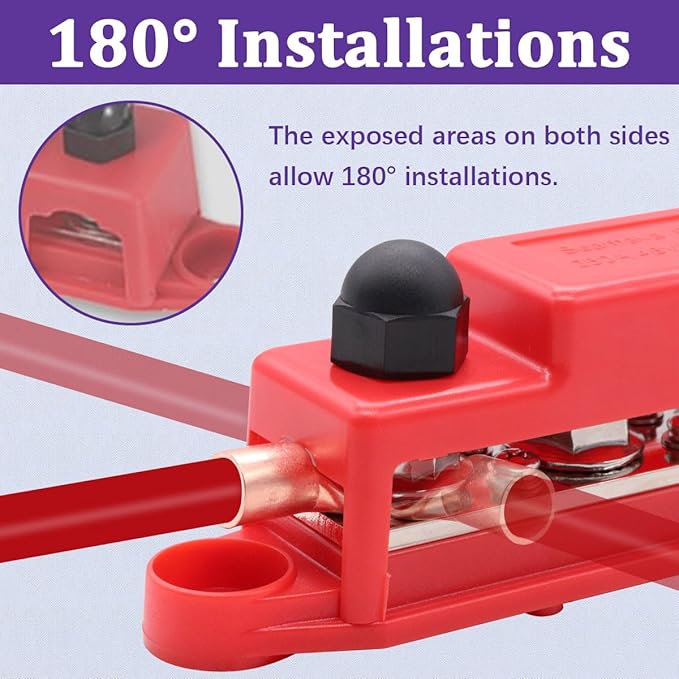

• Product features: 3mm copper busbar is thicker than other 2.0mm brass busbars and can withstand 250A actual current; The bus bar is very firm and will not fall off, and the exposed areas on both sides allow 180 installation
• Parameter: Maximum voltage: 300V AC, 48V DC, and maximum current: 250A

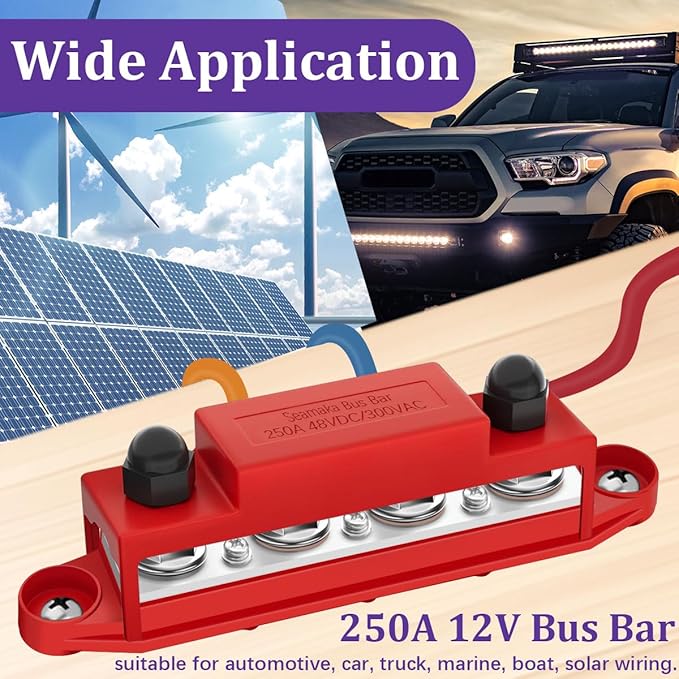

• Scope of application: Using battery bus bars for wire management and wiring can make circuit wiring neat and prevent electrical short circuit; Widely used in automobiles, automobiles, trucks, ships, boats, yachts, etc

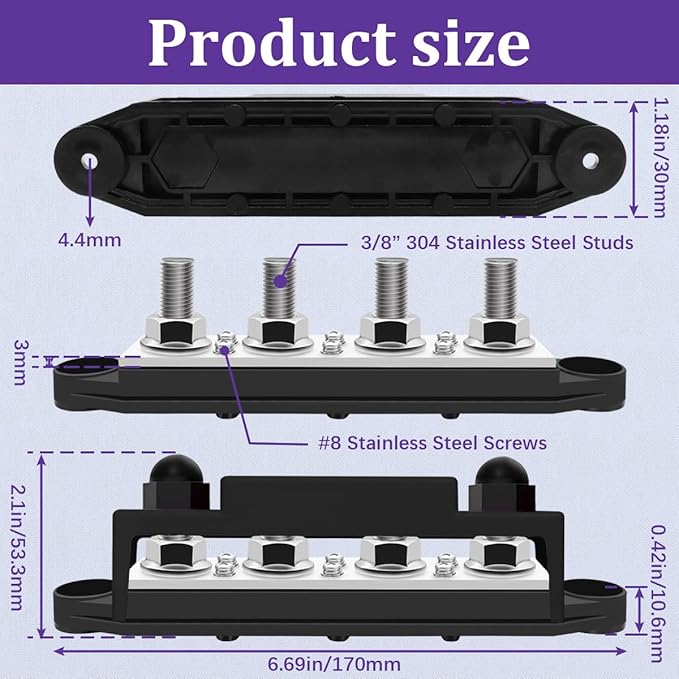

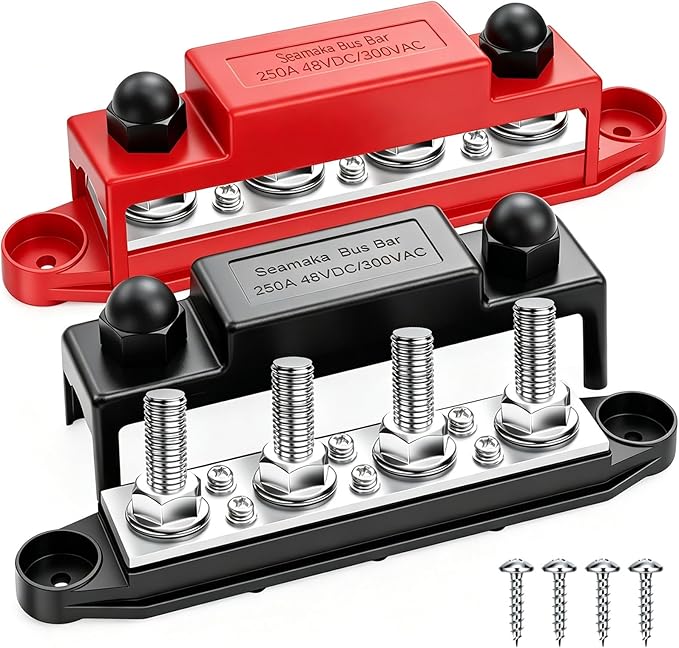

• Packaging: One red terminal: 4 x 3/8 inch (M10) with screws: 6x#8 battery bus bar, one black terminal: 4 x 3/8 inch (M10) with screws: 6x#8 battery bus bar

Overview

• Current Rating : 250 Amps
• Item Pitch : 0.38 Inches
• Connector Type : Screw
• Number Of Contacts : 6
• Mounting Type : Screw Mount
• Material : Nylon, Stainless Steel
• Brand : Seamaka
• Voltage : 48 Volts (DC)
• Number Of Poles : 6
• Centerline Length : 0.38 Inches
