About This

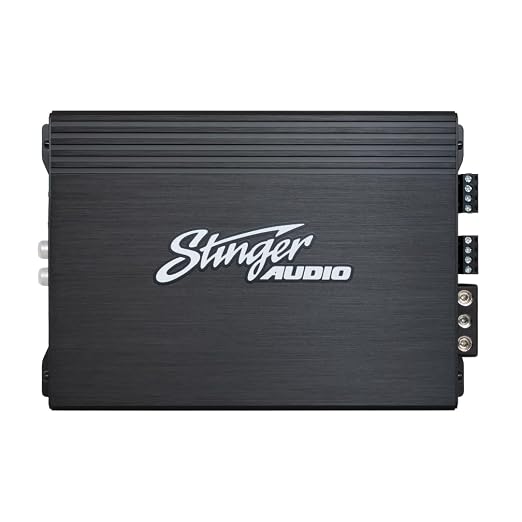

• 𝗗𝗶𝗴𝗶𝘁𝗮𝗹 𝗖𝗹𝗮𝘀𝘀 𝗗 𝗔𝗺𝗽𝗹𝗶𝗳𝗶𝗲𝗿: This 4-channel amp delivers powerful performance in a compact size, ensuring high-quality power for sound systems without taking up vehicle space (6.10" L x 9.29" W x 2.09" H).

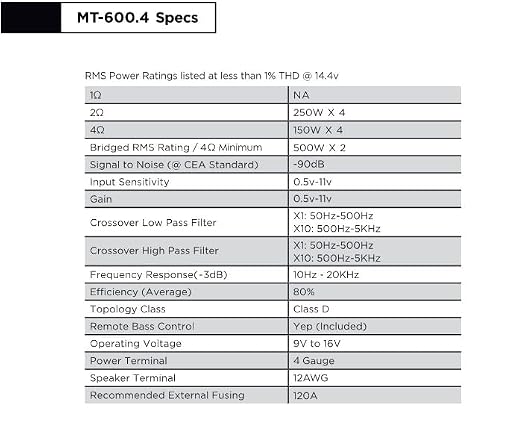

• 𝗥𝗼𝗯𝘂𝘀𝘁 𝟭𝟬𝟬𝟬𝗪 𝗥𝗠𝗦 𝗣𝗼𝘄𝗲𝗿 𝗢𝘂𝘁𝗽𝘂𝘁: Provides heart-pounding low end with precise clarity (-90dB signal-to-noise ratio). Up to 250W x 4 @ 2 ohms, 150W x 4 @ 4 ohms, or 500W x 2 @ 4 ohms minimum bridged.

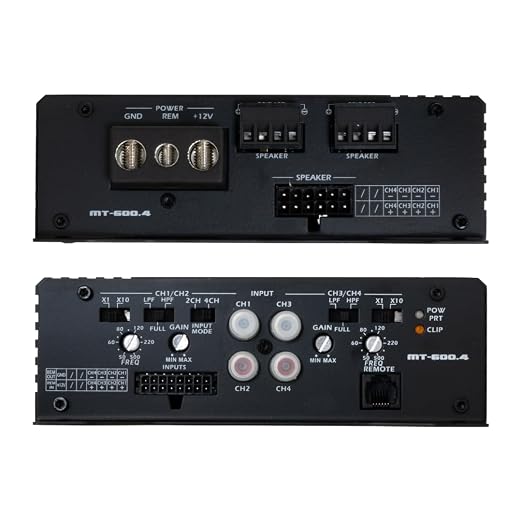

• 𝗪𝗼𝗿𝗸𝘀 𝘄𝗶𝘁𝗵 𝗢𝗘𝗠 𝗮𝗻𝗱 𝗔𝗳𝘁𝗲𝗿𝗺𝗮𝗿𝗸𝗲𝘁 𝗦𝗼𝘂𝗻𝗱 𝗦𝘆𝘀𝘁𝗲𝗺𝘀: Cut the RCA connectors and connect to speaker wires for high-level input or connect the preamp signal cables from your head unit for low-level input.

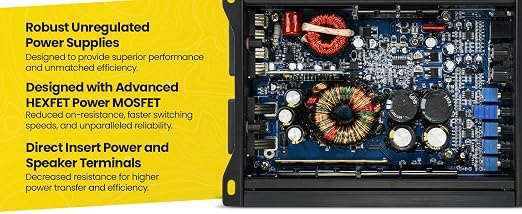

• 𝗗𝗲𝘀𝗶𝗴𝗻𝗲𝗱 𝘄𝗶𝘁𝗵 𝗔𝗱𝘃𝗮𝗻𝗰𝗲𝗱 𝗛𝗘𝗫𝗙𝗘𝗧 𝗣𝗼𝘄𝗲𝗿 𝗠𝗢𝗦𝗙𝗘𝗧: Utilizes advanced processing techniques to achieve extremely low on-resistance and reliable fast switching speed.
• 𝗨𝗻𝗿𝗲𝗴𝘂𝗹𝗮𝘁𝗲𝗱 𝗣𝗼𝘄𝗲𝗿 𝗦𝘂𝗽𝗽𝗹𝗶𝗲𝘀: Advanced pulse width modulator (PWM) integrated circuits in the power supply circuitry offer superior performance and efficiency.
• 𝗛𝗶𝗴𝗵𝗲𝗿 𝗣𝗼𝘄𝗲𝗿 𝗧𝗿𝗮𝗻𝘀𝗳𝗲𝗿 𝗮𝗻𝗱 𝗘𝗳𝗳𝗶𝗰𝗶𝗲𝗻𝗰𝘆: Features direct insert power and speaker terminals to provide decreased resistance.
• 𝗛𝗶𝗴𝗵 𝗮𝗻𝗱 𝗟𝗼𝘄 𝗣𝗮𝘀𝘀 𝗖𝗿𝗼𝘀𝘀𝗼𝘃𝗲𝗿𝘀 𝘄𝗶𝘁𝗵 𝗠𝘂𝗹𝘁𝗶𝗽𝗹𝗶𝗲𝗿: Allows you to run tweeters or mid-range speakers without an external crossover.

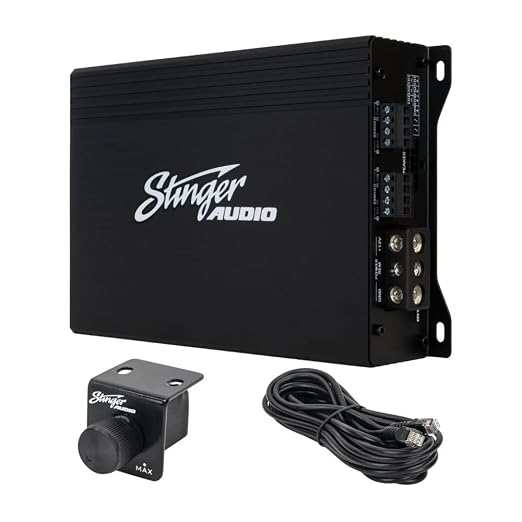

• 𝗥𝗲𝗺𝗼𝘁𝗲 𝗕𝗮𝘀𝘀 𝗞𝗻𝗼𝗯 𝗖𝗼𝗻𝘁𝗿𝗼𝗹𝗹𝗲𝗿 𝗜𝗻𝗰𝗹𝘂𝗱𝗲𝗱: Control the volume of your car subs from the driver’s seat. The knob can be mounted with the included dash bracket or flush mounted directly on the dash, console panel, or other areas for custom installations.

Overview

• Item dimensions L x W x H : 13.23 x 6.1 x 2.09 inches
• Voltage : 11 Volts
• Manufacturer : STINGER
• Maximum Supply Voltage : 16 Volts (DC)
• Mounting Type : Through-Hole Mount
