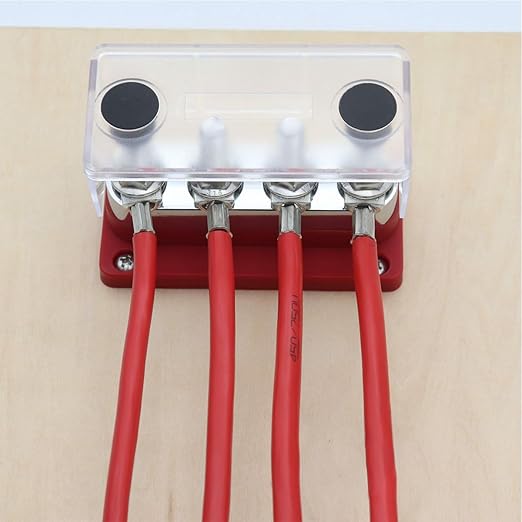

Busbar Copper 300A 12V-48V DC, 4 x 5/16” Posts Battery Terminals Bus Bar, Red Positive Power Distribution Block with Cover for Car RV Solar Truck Marine

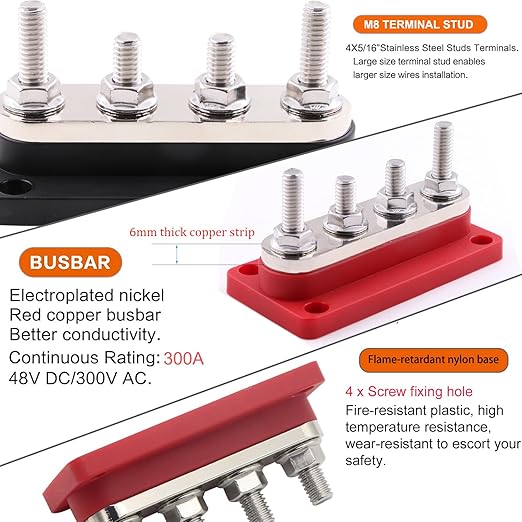

✅ Premium Construction: Heavy duty Busbar with Cover. Glass fiber reinforced nylon base & cover with thickened 0.236" nickel-plated copper plates for maximum conductivity. Stainless steel screws/nuts resist saltwater corrosion, sepcial for marine

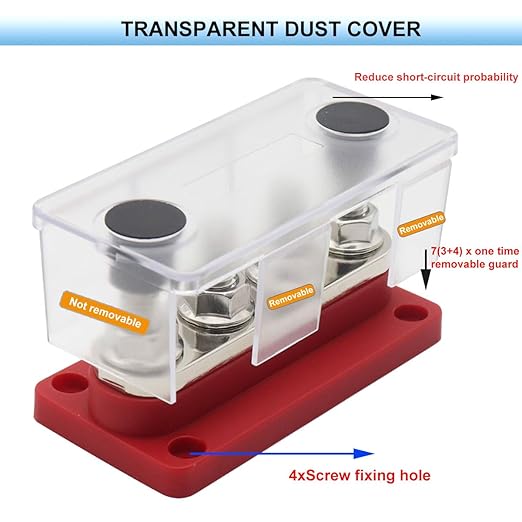

✅ Secure Multi-wire Distribution Block: 300A PowerBar with four 5/16"( M8) terminal studs– ideal for parallel/series setups in max 48v DC electric installations. Removable side windows allow quick access for wiring without tools
✅ Max voltage: 48VDC.
✅ Continuous Rating: 300 Amp at 12 Volt DC per connection

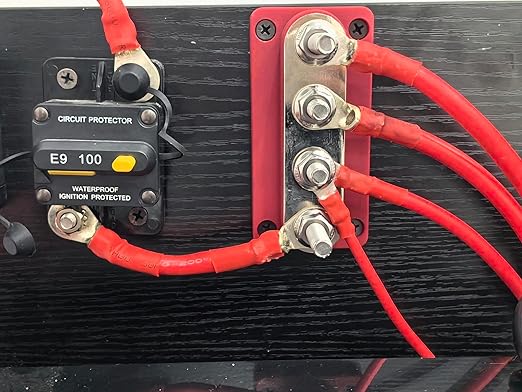

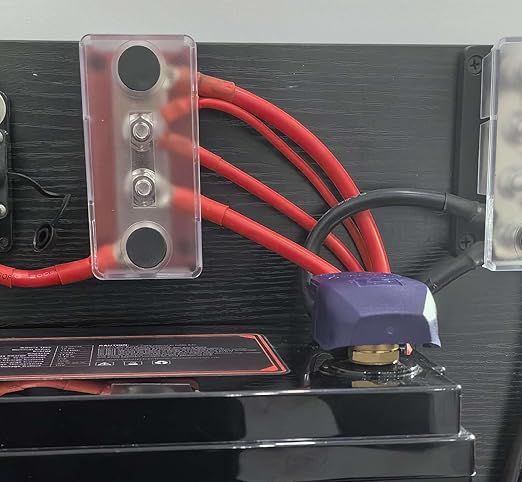

✅ Common Bus Bar Distribution Box: it widely fit for automotive, car, stereo setup, RVs, truck, trailer, solar, battery bank, off-grid, boat, marine and max 48V DC electrical systems

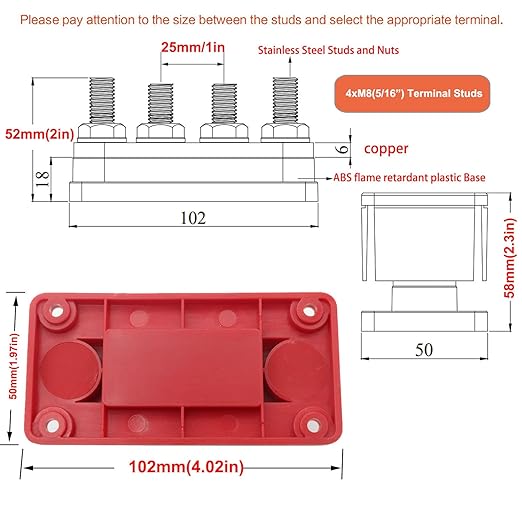

✅ Easy to Install : Compact 300A Buss Bar for tight spaces 4.02"x1.97"x2" ( 102X 50X 52mm). Surface Mount, 4 mounting holes with screws included
✅ Safe Note: a, the wire and over current protection is sized based on the load; b, Make sure your 5/16" Lug can work with 300Amps current

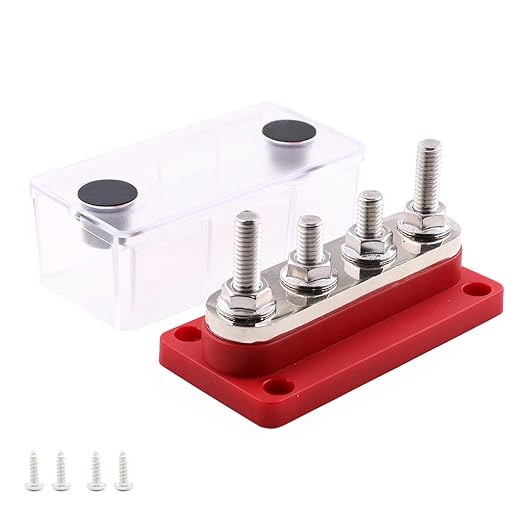

✅ What You Get: 1x 300A bus bar with 4x 5/16" studs terminal( red), 1x cover( transparent), 4x screws
Overview
Current Rating : 300 Amps
Connector Type : Screw
Number Of Contacts : 4
Mounting Type : Surface Mount
Material : Nickel -plated Copper bus, Nylon,Glass Fiber reinforced and PC base, Stainless Steel Post and Nut
