JRready ST6445 Deutsch Solid Pin Kit, Barrel Style Contacts Size 16# 20# Male Female Terminal for DT, DTM, HD Series Connector with Deutsch Pin Extractor Tool
JRready ST6445 Deutsch Solid Pin Kit, Barrel Style Contacts Size 16# 20# Male Female Terminal for DT, DTM, HD Series Connector with Deutsch Pin Extractor Tool
Regular price
$73.06 USD
Regular price
$73.06 USD
Sale price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About This

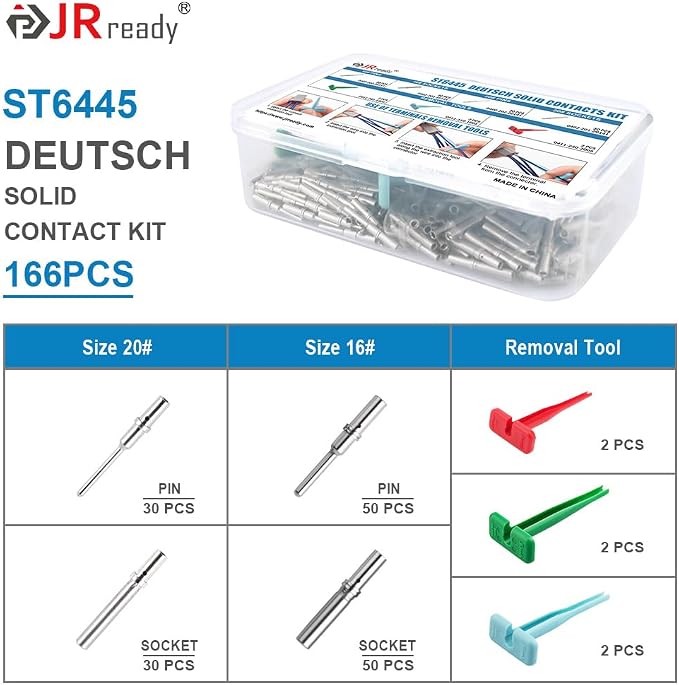

- 【Package List】 including deutsch pin and sockets 16#50pairs ,20#30pairs,total 80 pairs and Pin Extractor Tool 6PCS.

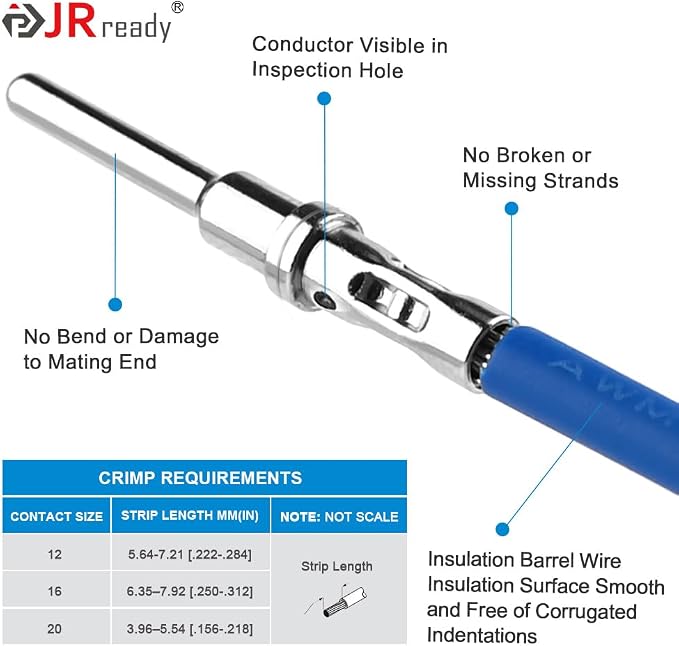

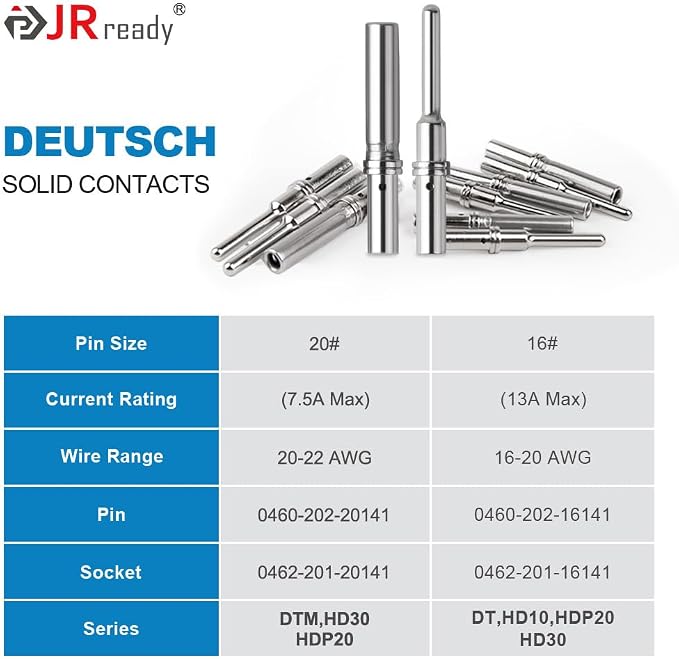

- 【Deutsch Size 16#】male and female terminals,indent-Crimp,wire range: 20-16 (AWG),current rating 13A max,Pin contact 0460-202-16141 ,Socket contact 0462-201-16141
- 【Deutsch Size 20#】male and female terminals,indent-Crimp,wire range: 22-20 (AWG),current rating 7.5A max,Pin contact 0460-202-20141,Socket contact 0462-201-20141

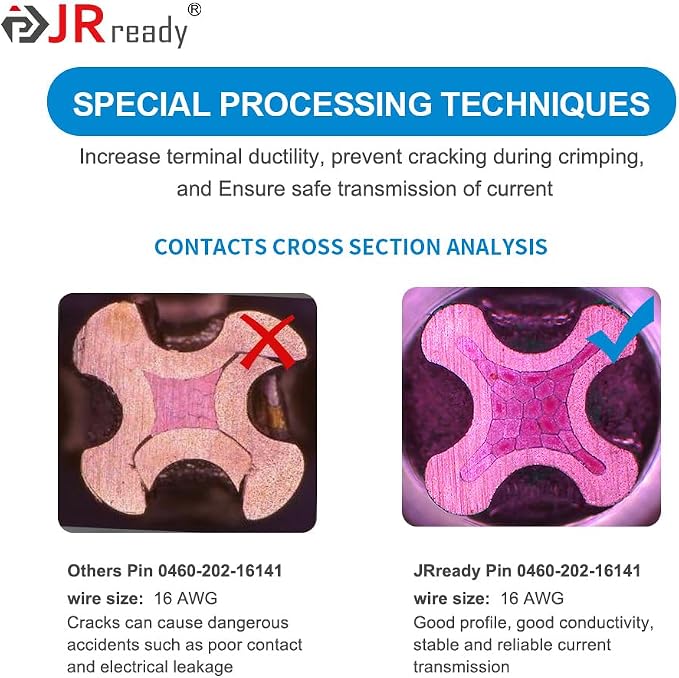

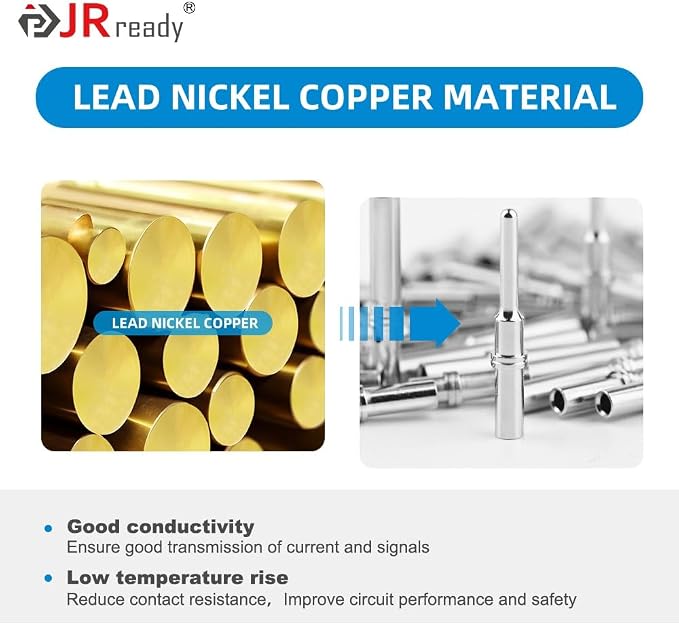

- 【High conductivity material】Using lead nickel copper material, it has high conductivity, low temperature rise, and low contact resistance, which improves circuit performance, enhances the safety and reliability of electrical equipment, and reduces faults caused by overheating or other electrical problems

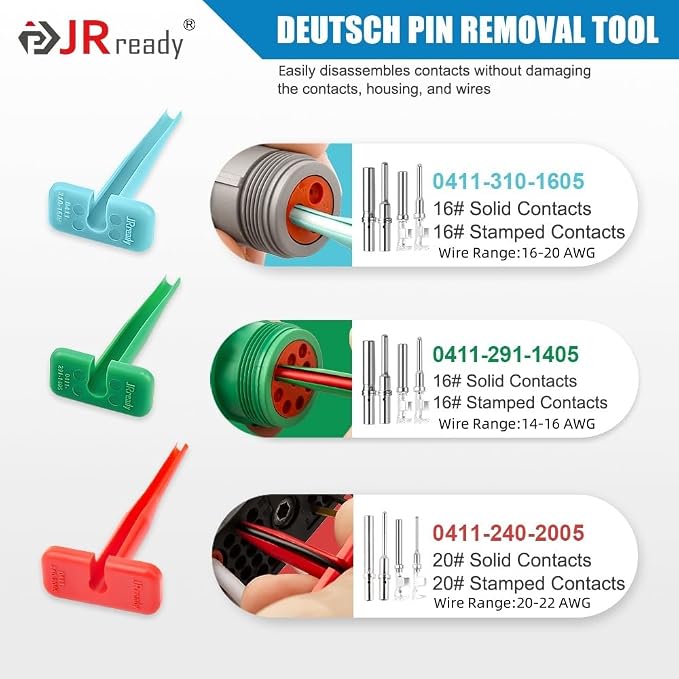

- 【Pin Extractor Tool】usage where the tool can save countless hours of labor, Compact, easy-to-use, and manufactured of heavy duty plastic to remove Stamped and Solid Contacts without damage to the wire, insulation, connector seals, or connector body.
