JRready

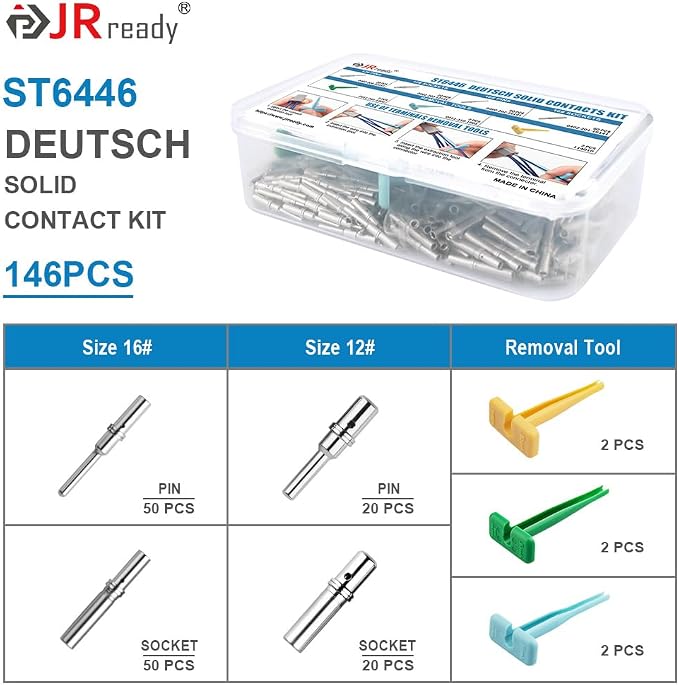

JRready ST6446 Deutsch Solid Pin Kit, Barrel Style Contacts Size 16# 12# Male Female Terminal for DT,DTP,DTHD,HD Series Connector with Deutsch Pin Extractor Tool

JRready ST6446 Deutsch Solid Pin Kit, Barrel Style Contacts Size 16# 12# Male Female Terminal for DT,DTP,DTHD,HD Series Connector with Deutsch Pin Extractor Tool

Regular price $75.58 USD
Regular price $75.58 USD Sale price
Shipping calculated at checkout.

About This

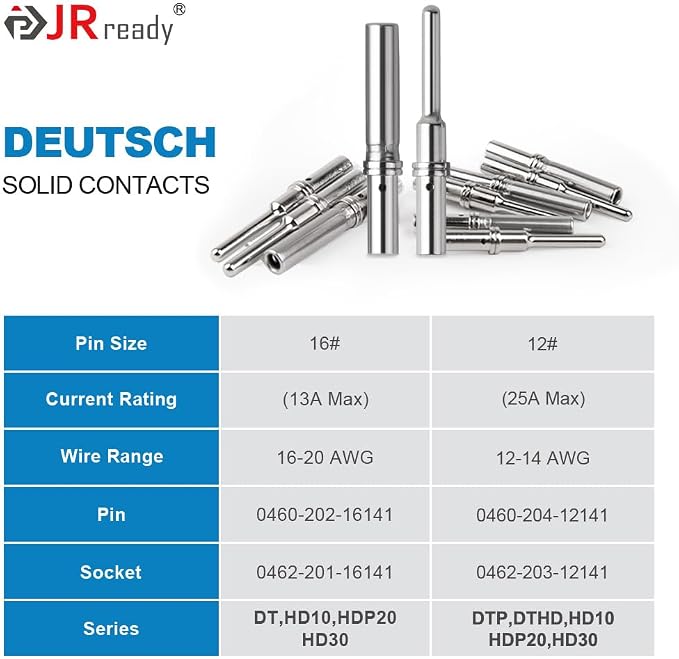

  • 【Deutsch Size 12#】male and female terminals,indent-Crimp,wire range: 16-12 (AWG),current rating 25A max,Pin contact 0460-204-12141,Socket contact 0462-203-12141
  • 【Deutsch Size 16#】male and female terminals,indent-Crimp,wire range: 20-16 (AWG),current rating 13A max,Pin contact 0460-202-16141 ,Socket contact 0462-201-16141

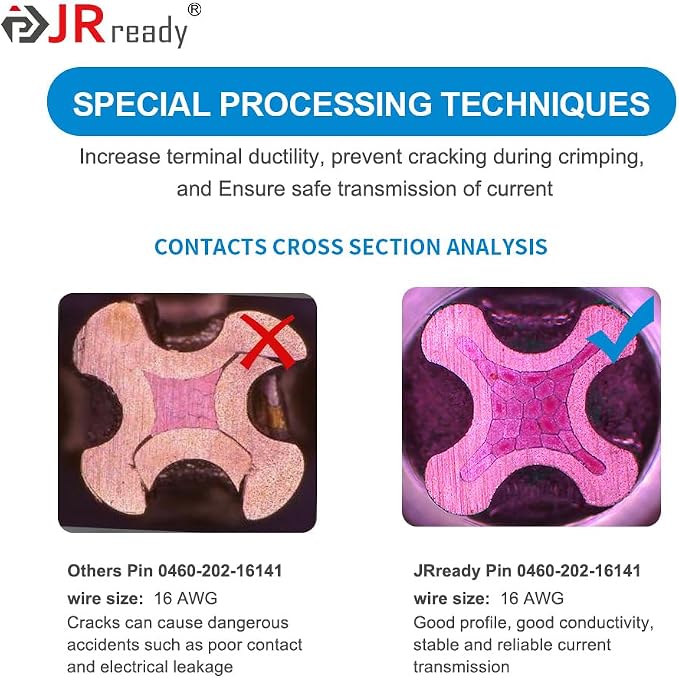

  • 【Annealing process treatment】The wire barrel of the terminal has been annealed to eliminate residual stress on the terminal and prevent cracking during crimping, which can lead to insufficient tension and easy detachment, resulting in a short circuit of the circuit and inability to achieve electrical connection

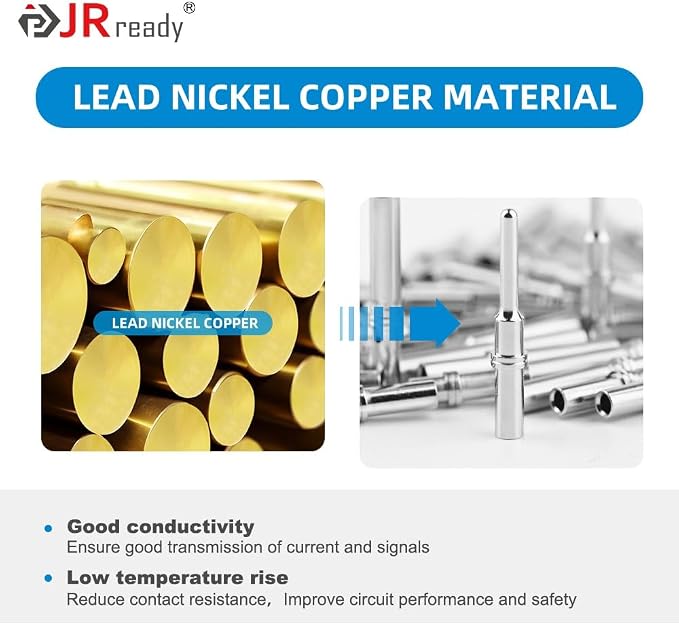

  • 【High conductivity material】Using lead nickel copper material, it has high conductivity, low temperature rise, and low contact resistance, which improves circuit performance, enhances the safety and reliability of electrical equipment, and reduces faults caused by overheating or other electrical problems

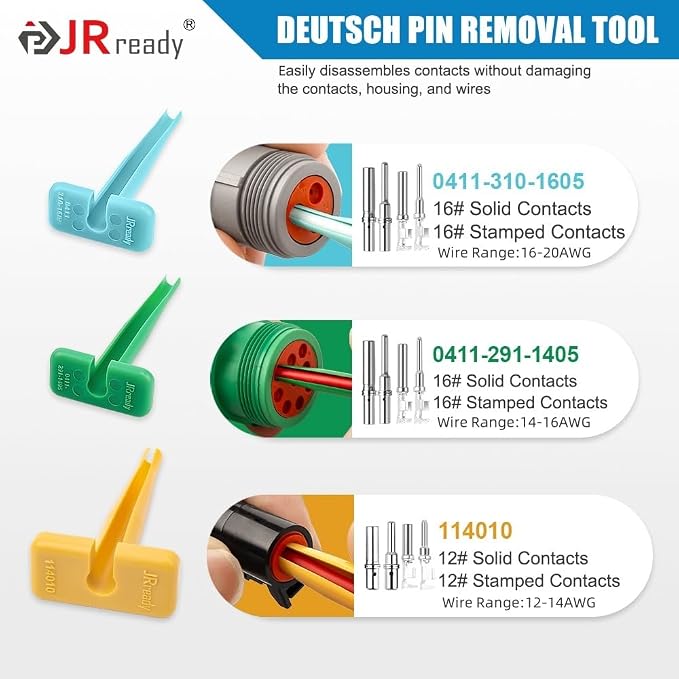

  • 【Pin Extractor Tool】usage where the tool can save countless hours of labor, Compact, easy-to-use, and manufactured of heavy duty plastic to remove Stamped and Solid Contacts without damage to the wire, insulation, connector seals, or connector body.
