QuickMarine

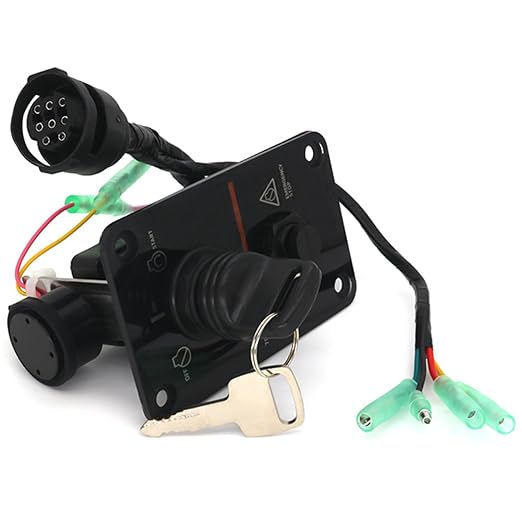

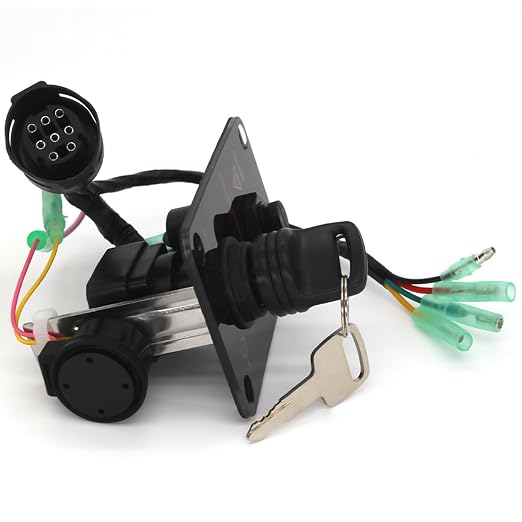

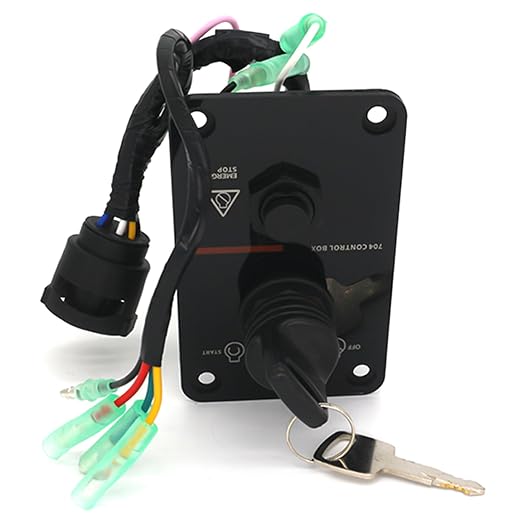

704-82570 Single Engine Key Switch Panel Assembly for Yamaha Outboard Model | Replaces 704-82570-12-00, 704-82570-08-00, 704-82570-01-00, Fits Yamaha 2 Stroke & 4 Stroke mechanical shift outboard motors

704-82570 Single Engine Key Switch Panel Assembly for Yamaha Outboard Model | Replaces 704-82570-12-00, 704-82570-08-00, 704-82570-01-00, Fits Yamaha 2 Stroke & 4 Stroke mechanical shift outboard motors

$82.60 USD
$82.60 USD
Shipping calculated at checkout.

About This

  • This main switch panel on-off-start 704 control box fits Yamaha 2-stroke and 4-stroke mechanical shift outboard motors that have 10pin wiring harness

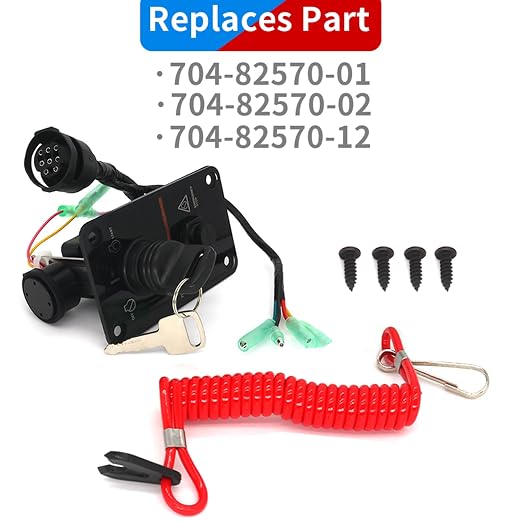

  • Compatible with Yamaha 704-82570-01, 704-82570-02, 704-82570-03, 704-82570-04, 704-82570-05, 704-82570-06, 704-82570-07, 704-82570-08, 704-82570-10, 704-82570-11, 704-82570-12, 704-82570-13

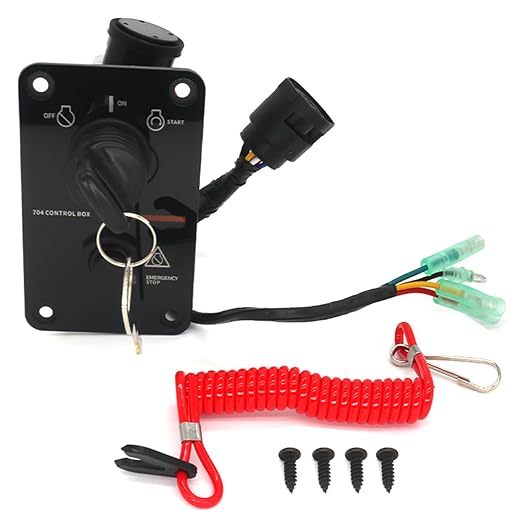

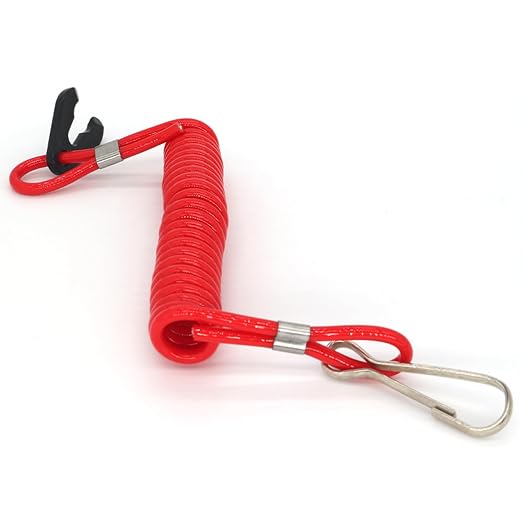

  • Package contains: 1* switch panel, 1* key, 1* safety lanyard and 4* screws as the pictures shown
  • This panel switch assy includes warning horn and connector harness, also with choke switch and engine warning buzzer, push main switch to choke
  • Easy to install, with pre-drilled mounting holes and mounting screws, the wiring diagram is also included in the package

Overview

  • Operation Mode : ON-OFF-ON
  • Current Rating : 40 Amps
  • Operating Voltage : 12 Volts
  • Contact Type : Normally Closed
  • Connector Type : Plug In
  • Brand : QUICKMARINE
  • Switch Type : Panel Switch
  • Terminal : Blade
  • Material : Plastic
  • Item dimensions L x W x H : 2 x 2 x 0.6 inches
