About This

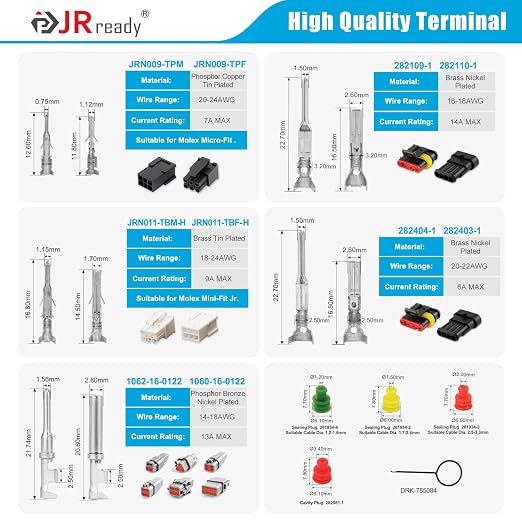

• STANDARD MOLEX TERMINAL:JRN009-TPM/JRN009-TPF: Made of Phosphor Bronze compatible with Molex Micro-Fit. Standard MOLEX pin: 43031-0007，socket: 43030-0007; JRN011-TBM-H/JRN011-TBF-H: Made of tin-plated brass compatible with Molex Mini-Fit Jr.Standard MOLEX pin: 39-00-0041，socket:39-00-0039.
• SUPERSEAL 1.5 TERMINAL: JRready AMP Superseal 1.5 Terminal is high-quality brass with nickel plating, has good high temperature resistance and corrosion resistance, ensuring long-term stability and safety. 282109-1/282110-1: Wire Range is 16-18AWG, Current Rating is 14A MAX. 282404-1/282403-1: Wire Range is 20-22AWG, Current Rating is 6A MAX.282465-1/282466-1: Wire Range is 14-16AWG , Current Rating is 14A MAX.
• DEUTSCH TERMINAL: Made from high-quality PB-free materials, these pins offer exceptional durability and resistance to corrosion.Ensure secure and reliable electrical connections, minimizing the risk of failures or malfunctions.1062-16-0122/1060-16-0122: Wire Range 18-14 AWG;
• Professional Test: JRready terminals undergo rigorous tensile testing，ensure the terminals can withstand a certain amount of force without loosening, falling off, or being damaged, and that the terminal connection has high stability, durability, and reliability.

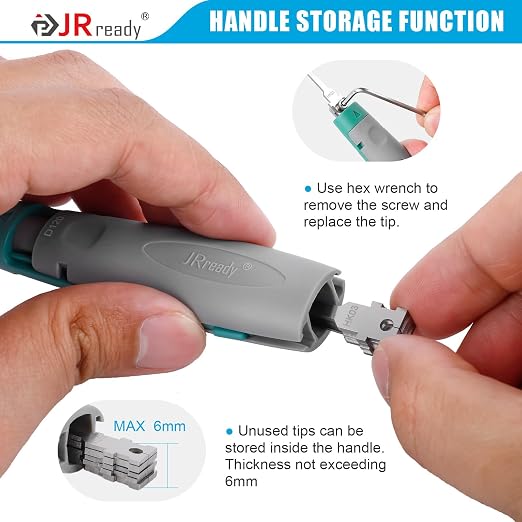

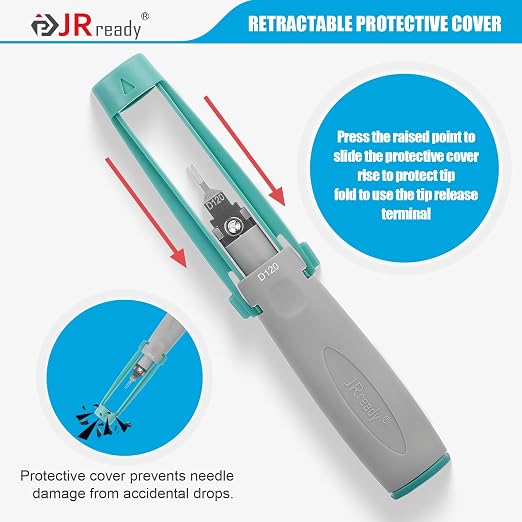

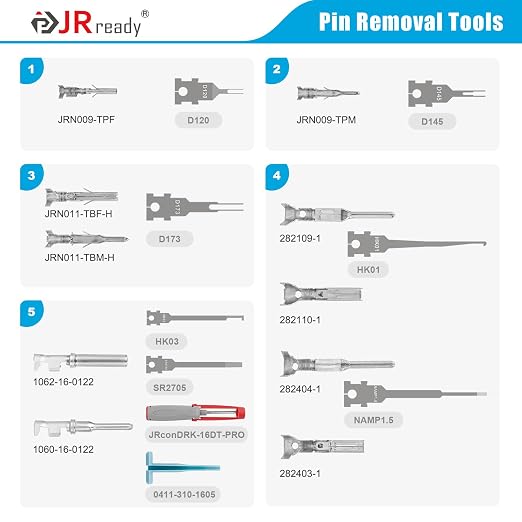

• Pin Removal Tool: The unique smooth built-in plunger design pushes pins out from behind the connector blocks, the pull-out and lock protective cover effectively safeguards the tips. The pin extractor tool features a chamfered design for accurate fit with connectors. Made from special materials with hardness up to HV500, these tips ensure durability, wear resistance, and toughness.

Overview

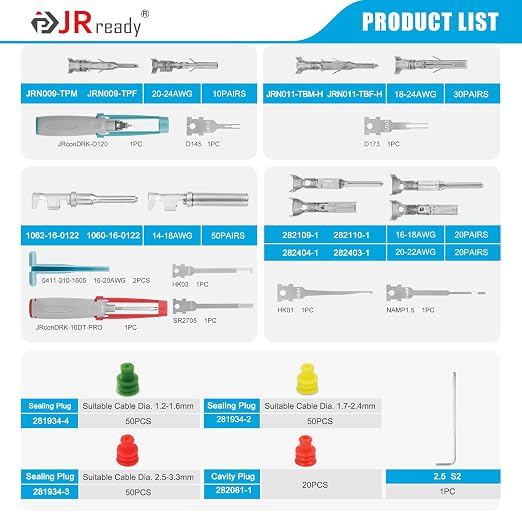

• Color : 130pairs Std Molex Deutsch Amp
• Connector Type : Pin
• Contact Material : Brass
• Insulation Material : Non-Insulated
• Terminal : Molex Micro-fit, Molex Mini-fit Jr, Amp Superseal 1.5, Deutsch
