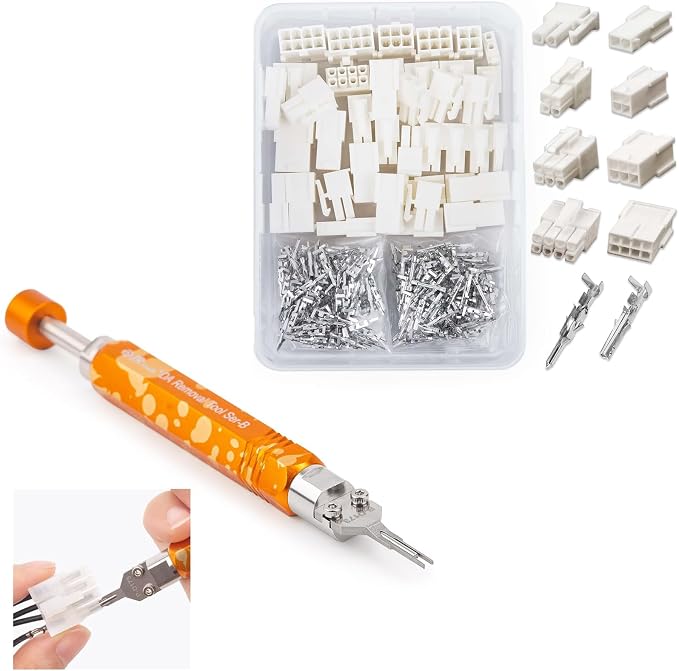

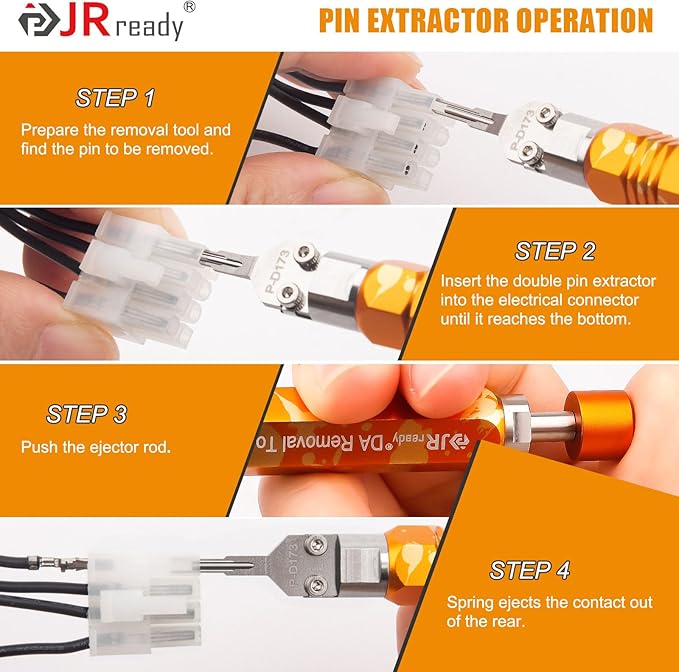

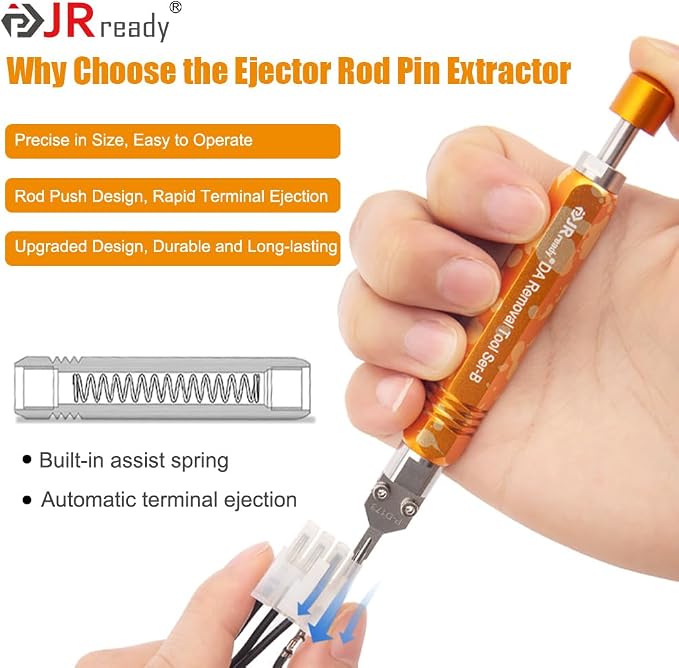

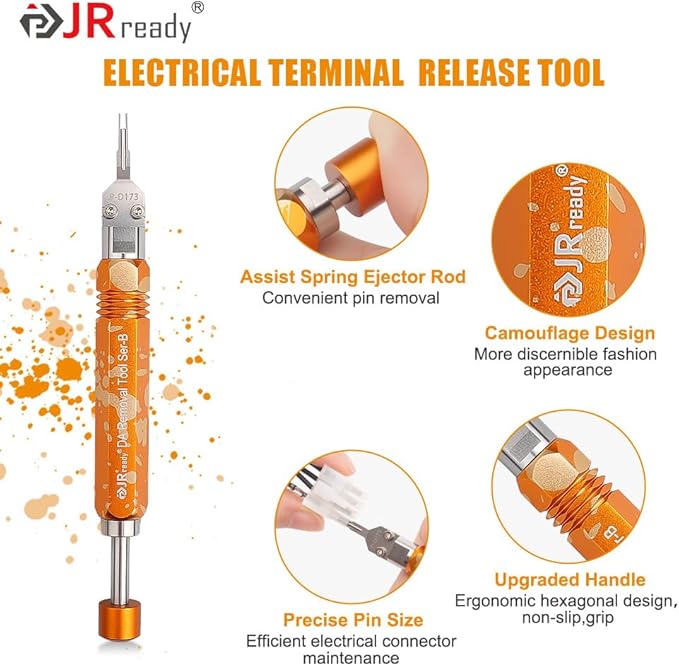

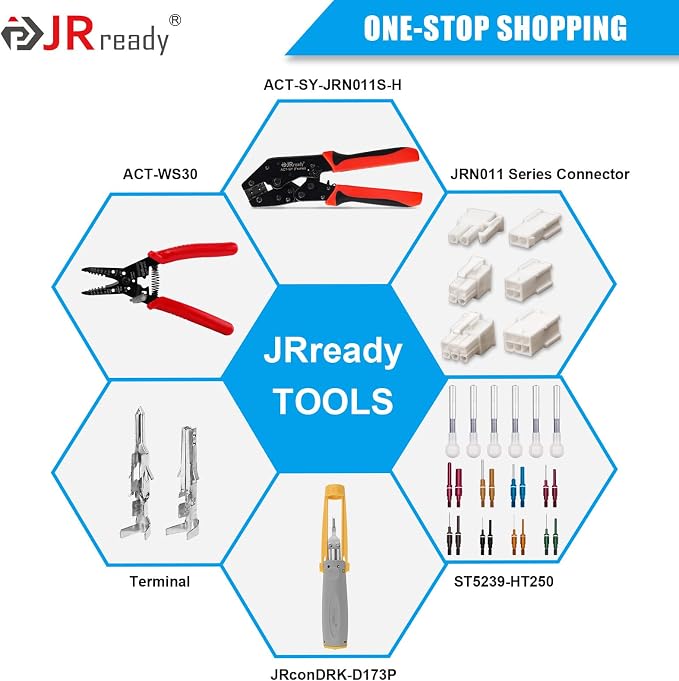

Built-In Plunger Depinning Tool — This Molex pin extractor features an integrated ejector rod to depress locking tabs and push contacts out smoothly. Compared with standard extraction tools, this electrical pin removal tool improves depinning efficiency and is even more effective at removing terminals without attached wires.
Equivalent to Molex 11-03-0044 — DAP-D173 pin removal tool designed for Molex Mini-Fit Jr terminals, including 5556 and 5558 contacts. Reliable Molex pin extractor and depinning tool for ATX, EPS and PCI-E power connectors.

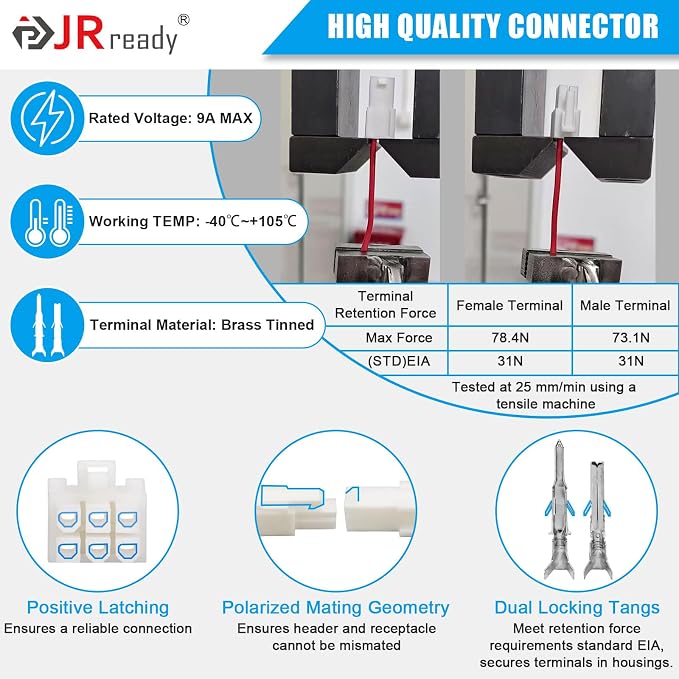

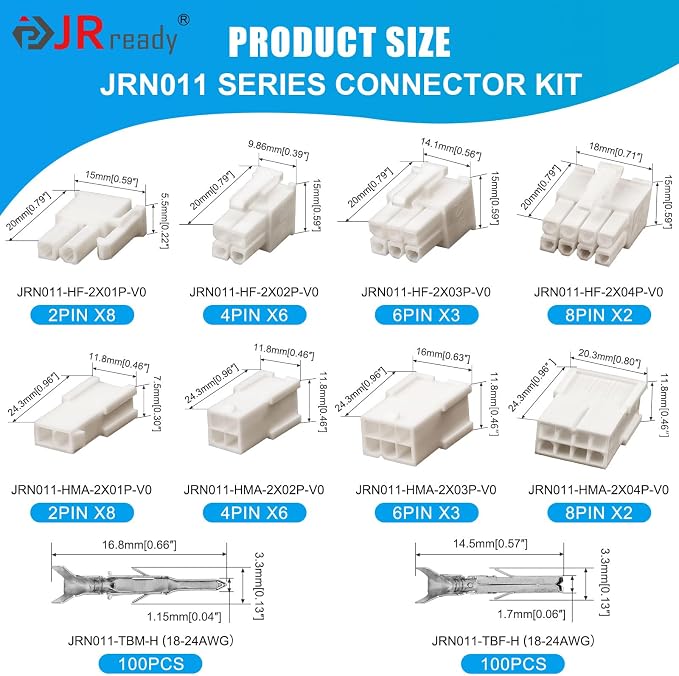

JRN011 SERIES CONNECTOR: 4.2mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 9A current is no more than 30℃. The connector can be mated and unmated over 50 times.
CONNECTOR DESIGN: Connectors are ideal for power applications up to 9 amps per circuit, and feature fully isolated terminals, positive housing locks, low engagement forces, and polarized housings.The receptacle housing can be connected with a variety of plug options, including panel mount and free hanging plugs, or vertical and right angle headers.

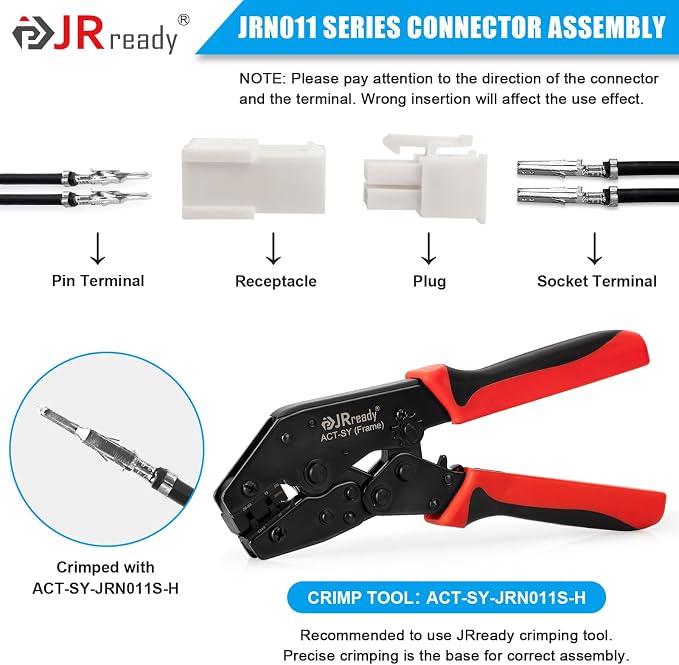

CONTACTS DESIGN: The 18-24AWG contact is made of tin-plated brass. Crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing.The kit includes a large quantity of terminals for crimping practice or as spares, providing a great user experience, especially for beginners.
