About This

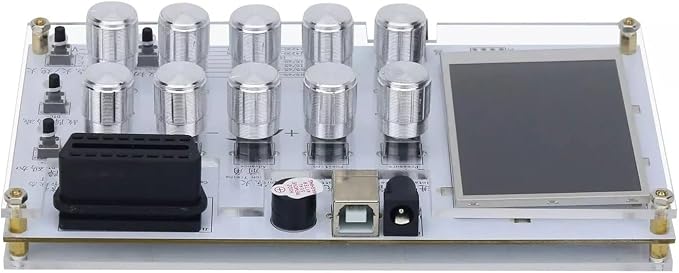

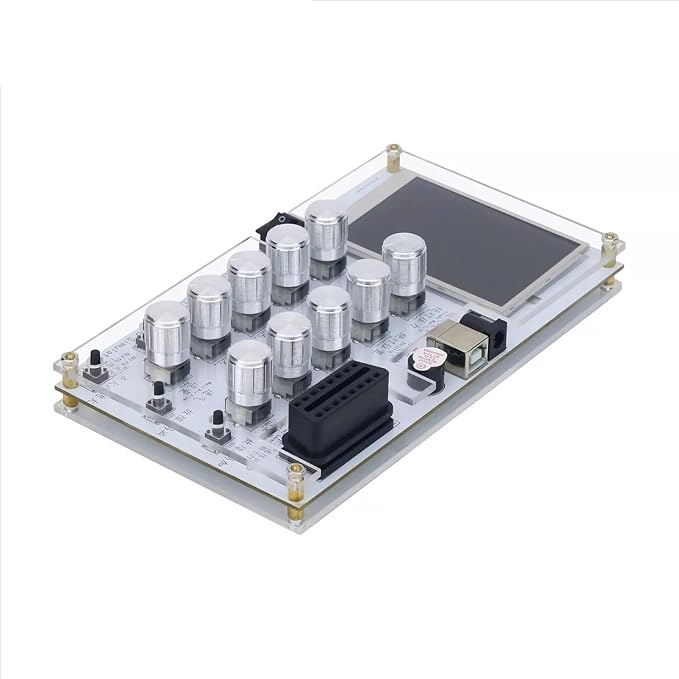

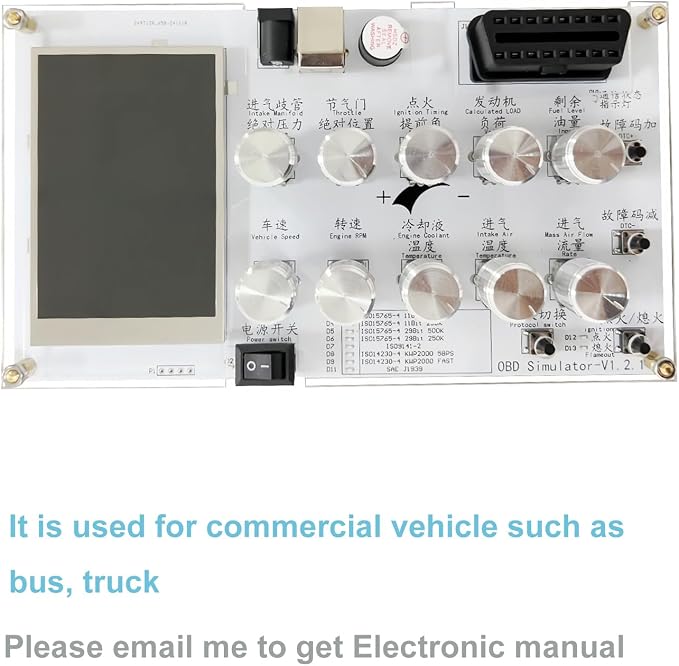

• 5-SAE-J1939 simulator.It is used for J1939 protocol only,for commercial vehicle such as bus, truck
• Package included: 5-SAE-J1939 simulator with LCD screen, power adapter, USB cable.
• After connecting with a computer via a USB data cable, it supports the simulation of nearly 140 remaining vehicle parameters.
• Supported seven protocols:ISO15765-4 11BIT 500k;ISO15765-4 11BIT 250k;ISO15765-4 29BIT 500k;ISO15765-4 29BIT 250k;ISO9141-2;ISO14230-4 KWP2000 5BPS;ISO14230-4 KWP2000 FAST
• Support real-time simulation of 12 kinds of vehicle parameters through the local knob/button.Support vehicle speed simulation;Support speed simulation;Support coolant temperature simulation (water temperature simulation);Support intake air temperature simulation;Support intake air flow simulation;Support intake manifold pressure simulation;Support absolute throttle position simulation;Support ignition advance angle simulation;Support engine load simulation;Support remaining oil quantity simulation;Support fault code simulation;Support frame number simulation

Overview

• Brand : SHARKBANG
• Power Source : Corded Electric
• Operating System : Windows 8
• Screen Size : 3.2 Inches
• Automotive Fit Type : Universal Fit
