About This

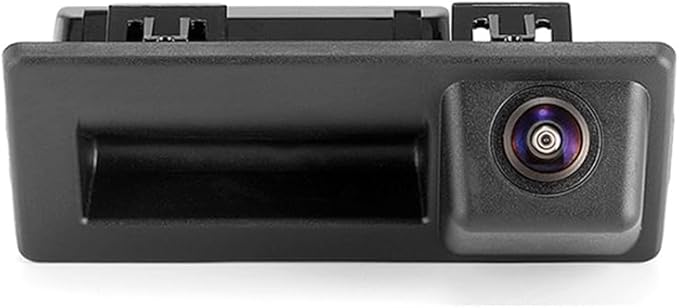

• HD Camera Sensor Precision Lens——This car rear camera adopts superb 1/2.7 inch large sensor chip.The Vehicle Backup Cameras 170 degree wide view angle fisheye lens,1.4mm aperture.Plus the Back Up Parking Camera noise reduction and powerful image processing capability,all this ensure excellent images in various light environment.

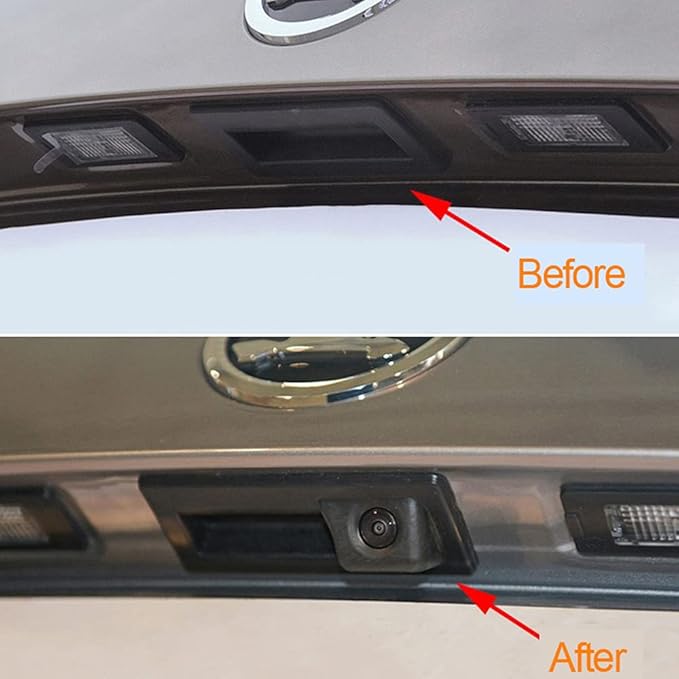

• Camera Matching Model——Backup Parking Vehicle Camra Replacement For Audi A4L 2017 2018 2019 2020;For Audi A3 2018 2019 2020;For Volkswagen VW Touran L 2016 2017;For Volkswagen VW Tiguan L 2017 2018 2019 2020 2021;For Volkswagen VW Teramont/Teramont X 2017 2018 2019 2020;For Volkswagen VW C-Trek 2017;For Volkswagen VW Sagitar2018;For Volkswagen VW Lavida Plus 2018 2019 2020;For Skoda Superb 2017 2018 2019 2020;For Skoda Octavia kamiq
• Both AHD and CVBS Video Signal Available, Camera Guideline on / off Adjustable---The car rear view camera can work with both AHD( 25HZ ) and CVBS monitors. Its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the white cable on the camera and reconnect to power supply. AHD video signal image is much clearer than CVBS. It is with guide line by default. If you don't need it, please cut the green loop and reconnect to power supply
• Remarkable Waterproof IP69——The Back Up Parking Camera for license plate adopts a sturdy housing,and Nano sealant infusion.The Vehicle Backup Cameras can be even immersed into water without worrying about

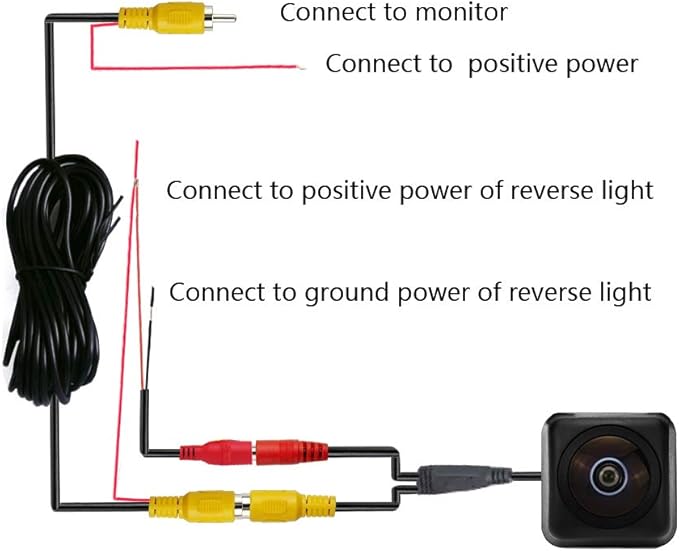

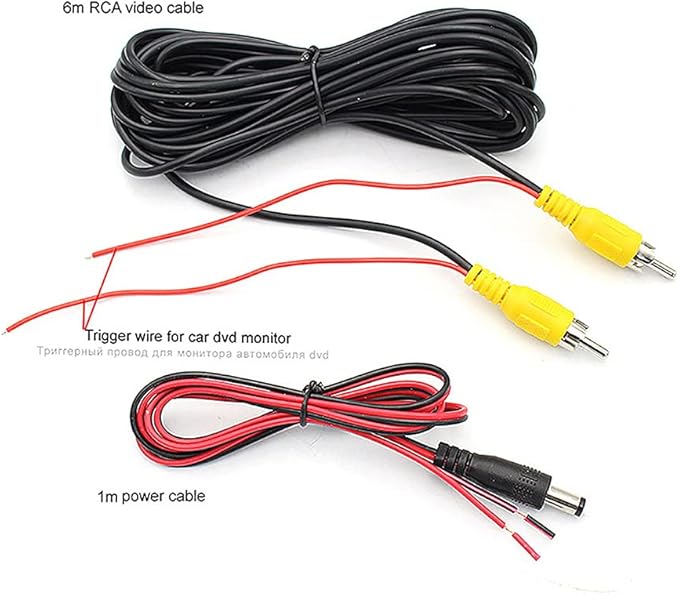

• Easy Installation——The cable on the camera is RCA, connection cable operation is very convenient and easy. Also, the video cable within the package is double-shielded type to ensure better performance
• After-sales Support——Each of the license plate backup cameras has been tested, any question after receiving this car rear view camera, contact our Customer us, and we will respond fast
• Important Notes——Please note before purchasing this backup camera is only suitable for car screen with RCA connector, not for dash cam, dash camera, mirror cam,GPS and car recorder

Overview

• Brand : aSATAH

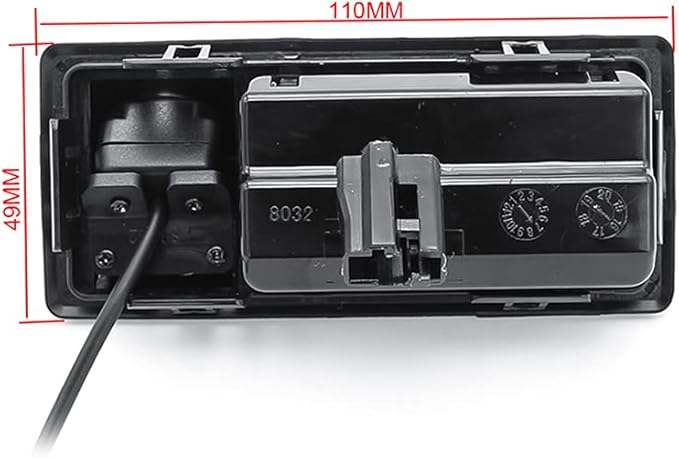

• Product Dimensions : 6.26"L x 1.77"W x 1.5"H
• Compatible Devices : Monitor
• Installation Type : Surface Mount
• Voltage : 12 Volts
• Optical Sensor Technology : CCD
• Lens Type : Fisheye
• Real Angle of View : 170 Degrees
• Connector Type : RCA
• Field Of View : 170 Degrees
