About This

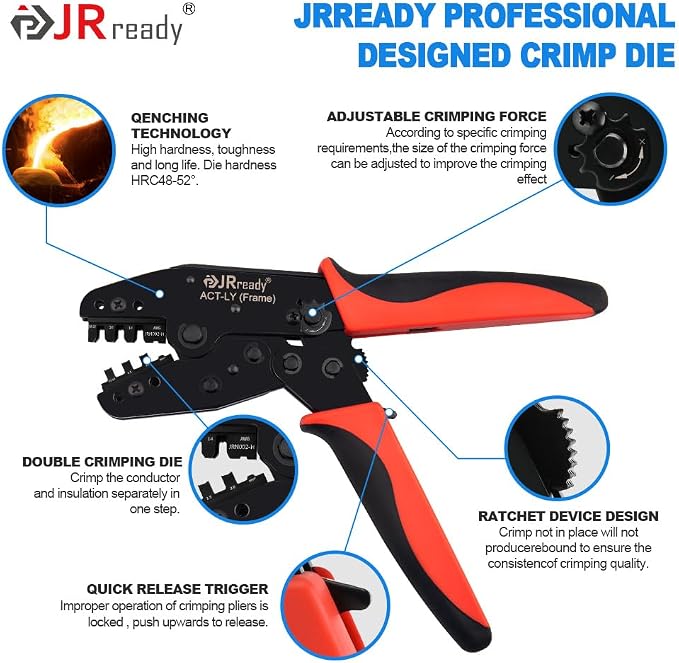

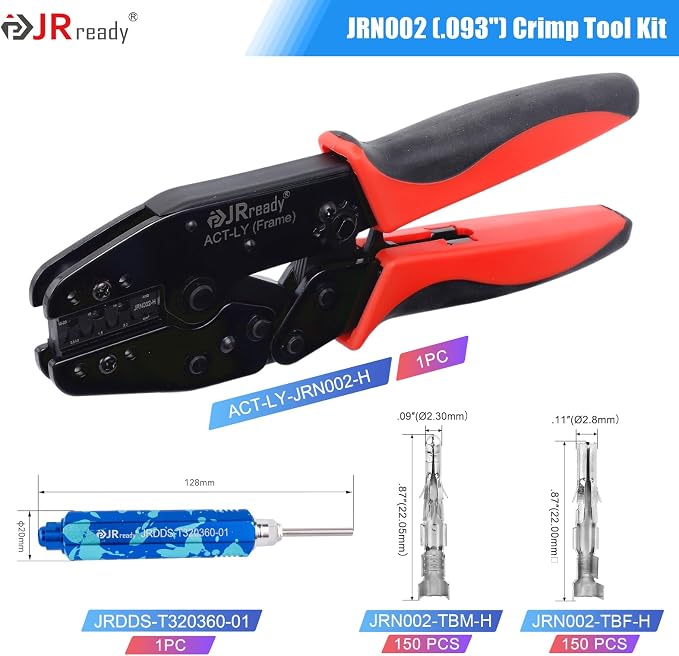

• 【Professional Crimping Tool】 ACT-LY-JRN002-H crimp tool fits 20–14 AWG (0.5–2 mm²) wires. Replaceable die set, anti-slip handles, and adjustable compression wheel ensure smooth operation and higher efficiency.

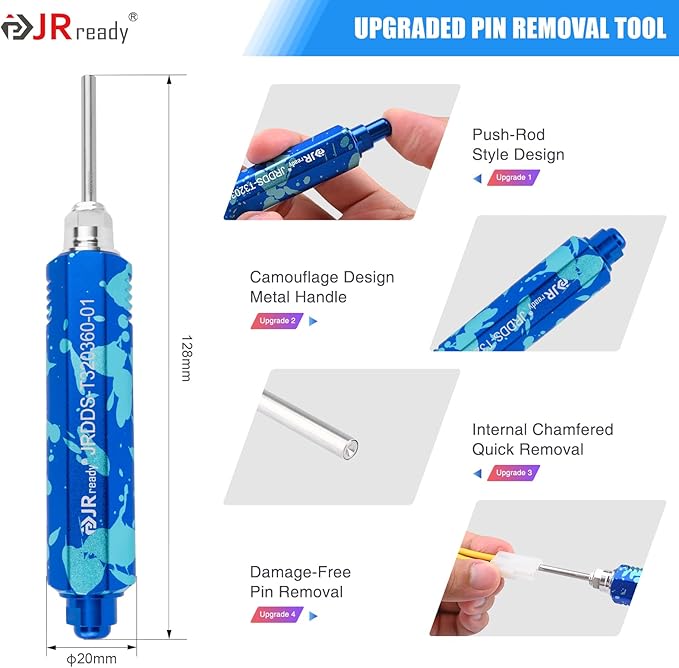

• 【Ungraded Pin Extractor Tool】 Built-in smooth plunger pushes pins out from the back of connector blocks. Pull-out and lock cover protects tips; chamfered design ensures precise fit. Hardened tips (up to HV500) deliver wear resistance, toughness, and long service life.
• 【High-Performance PA66 Housing】 Made from PA66 engineering plastic, 2.36 mm pin diameter, rated voltage 250 V AC/DC, operating temperature -40 °C to +105 °C, flame-retardant grade UL94-V2. Compatible with Molex .093" Series 5.03 mm pitch connectors. Transparent white housing may show slight color variation after air exposure—performance unaffected.
• 【Anti-Misplug Snap Design】 Two different end shapes prevent misalignment during assembly. Secure snap buckle stays tight, easy to assemble/disassemble, supports free combination of pin and socket terminals.

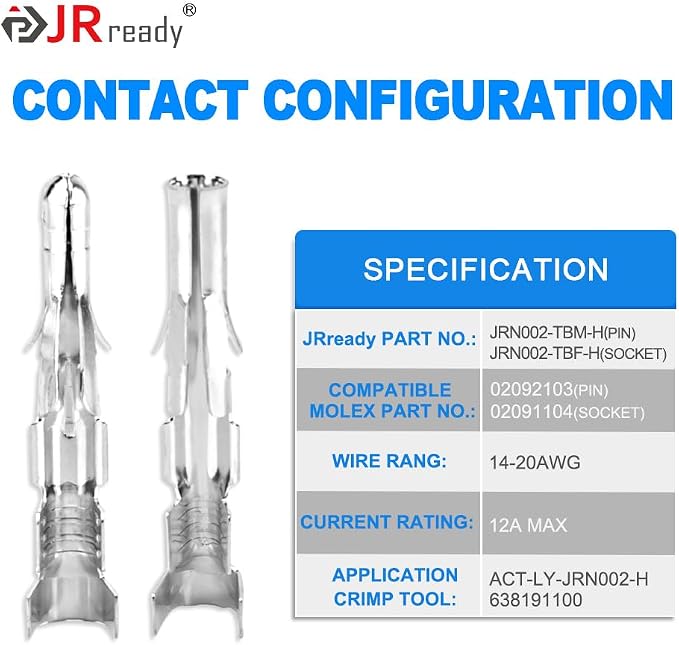

• 【High Conductivity Terminals】 Tin-plated brass terminals ensure excellent conductivity, oxidation and corrosion resistance. Dual-locking tangs prevent backing out; open design reduces insertion force and provides over 100 mating cycles. Fits wire size 14–20 AWG (0.5–2 mm²), rated current 12 A.

Overview

• Brand : JRready
• Color : Chrome
• Handle Material : Plastic, Rubber, Thermoplastic Elastomer (TPE)
• Grip Type : Contoured
• Handle Type : Anti-slip handles
