WOYO CTB007 PRO 12V/24V OBD2 Breakout Box with LCD Display 16PIN Vrms, CAN Tester Box with Built-in 120Ω for ECU Testing Tool on Bench, CAN Tester Box, 27.5inch/59inch Extension Cable (150cm/59inch)

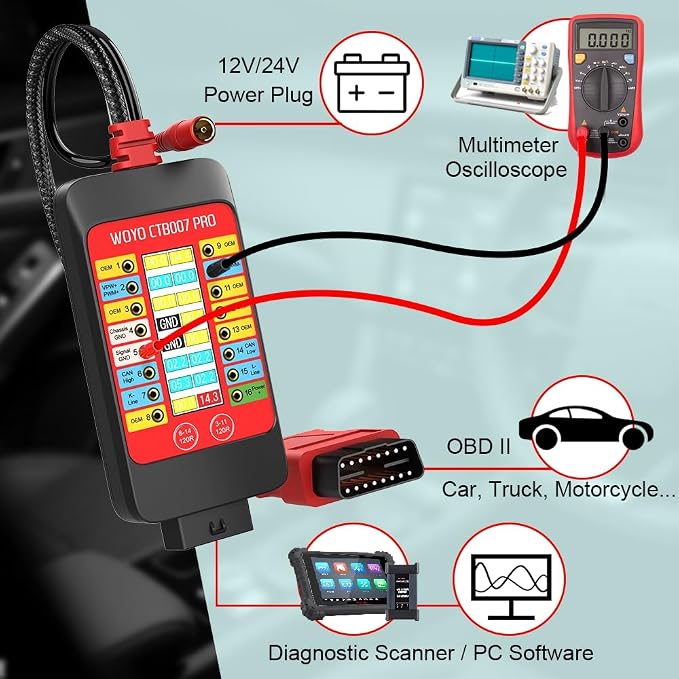

UNIVERSAL COMPATIBILITY: Professional diagnostic tool supporting both 12V-24V OBD systems for passenger cars and commercial vehicles with real-time OBD-II pin voltage monitoring.

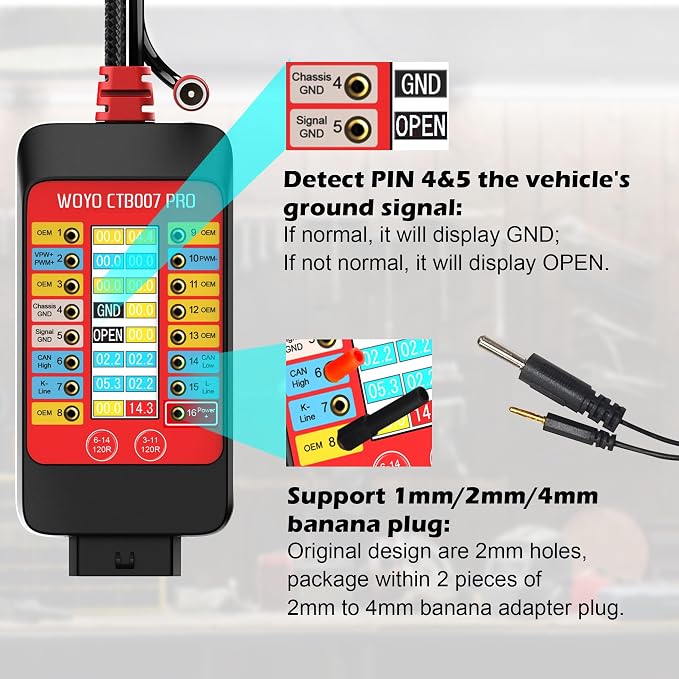

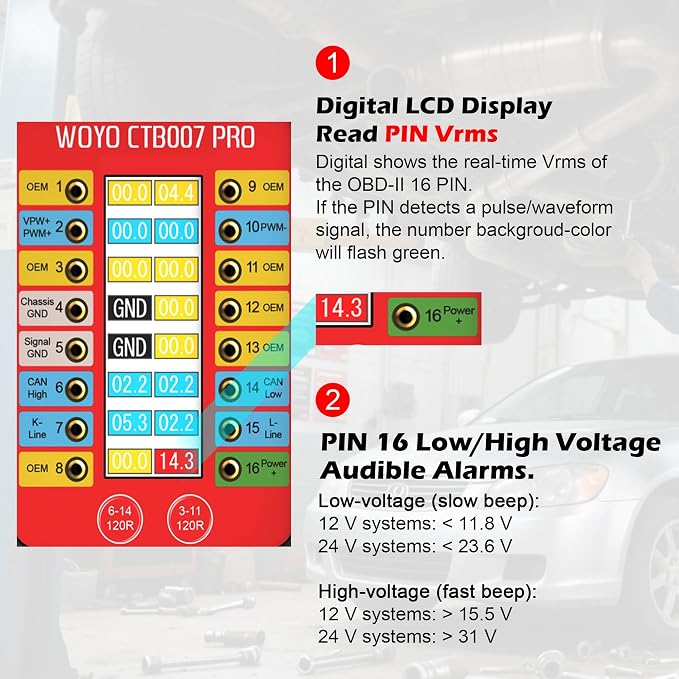

SMART DIAGNOSTICS: Features true RMS voltage monitoring for OBD 16PIN with visual indicators - green background for dynamic signals and status alerts for PIN 4&5 ground (GND) connectivity.

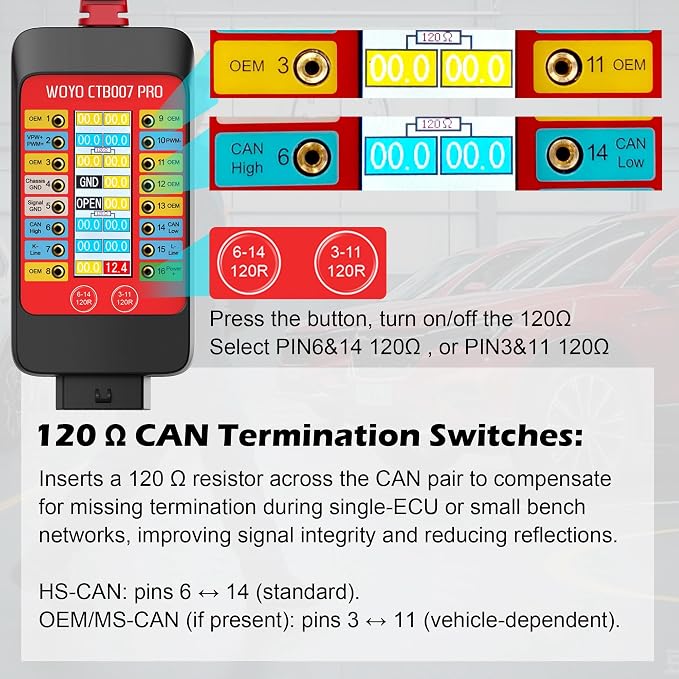

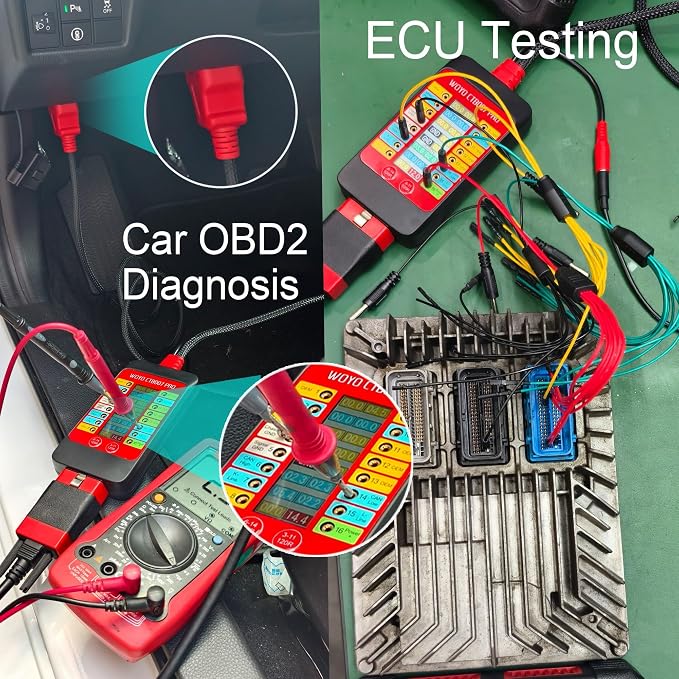

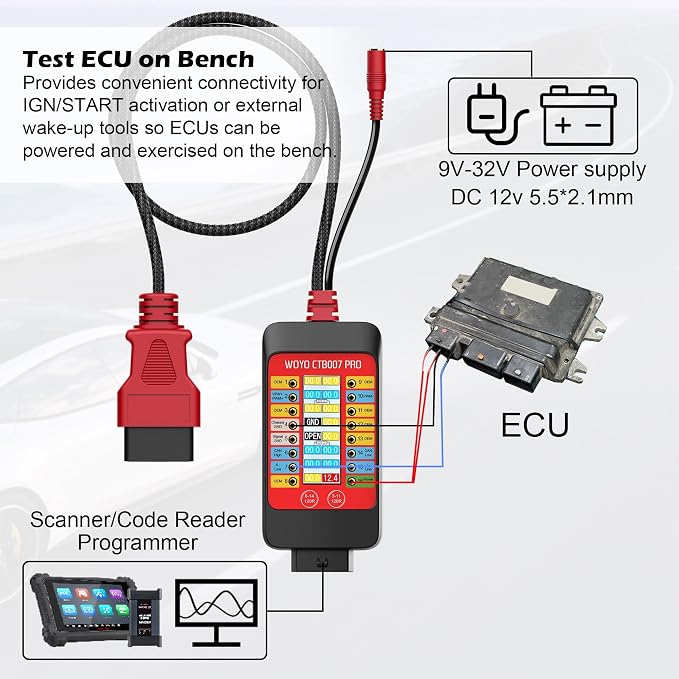

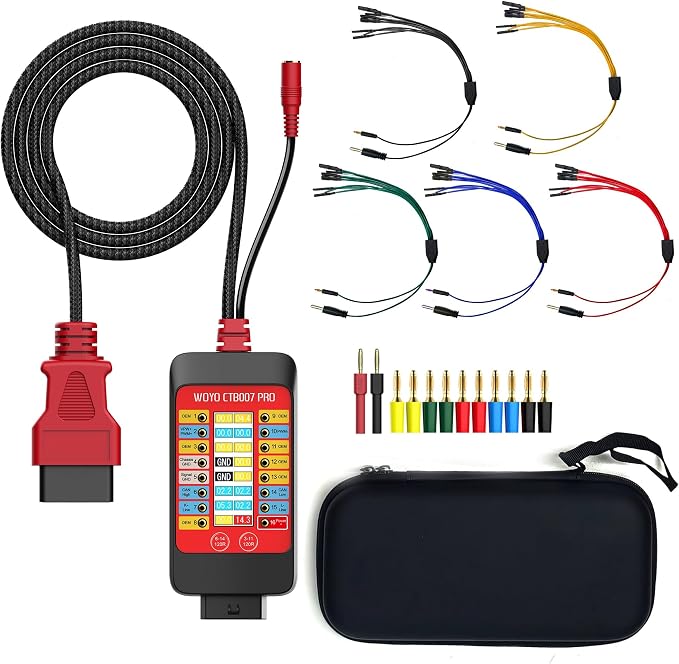

TEST ECU ON BENCH: CTB007 PRO with built-in 120Ω Resistance switch for HS-CAN (PIN6&14) and OEM/MS-CAN (PIN3&11), improving signal integrity during bench testing and single-ECU scenarios. Package also within 5pcs ECU breakout leads.
VOLTAGE PROTECTION: Includes audible alarms for both high and low voltage conditions across 12V and 24V systems for PIN16. CTB007 PRO also has reverse polarity protection, the Maximum Load Current is 2.0A.

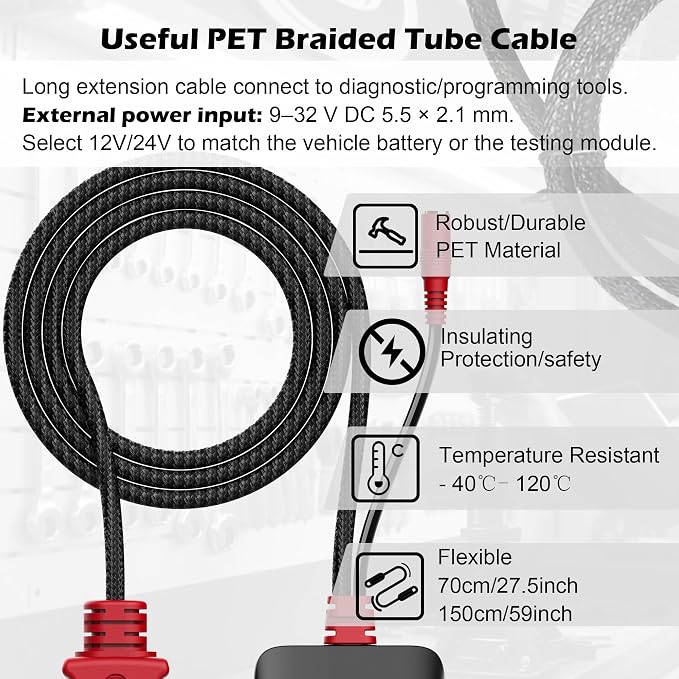

PRACTICAL DESIGN: CTB007 PRO within the 27.5inch/59inch OBD 2 extension cable, convenient external power input (9-32V DC).
Battery Replacement Memory Saver: Maintains vehicle power (12 V/24 V) during battery changes so vehicle settings are preserved.
Overview
Brand : WOYO
Power Source : 12V/24V Battery Powered or DC 9V-32V power supply
