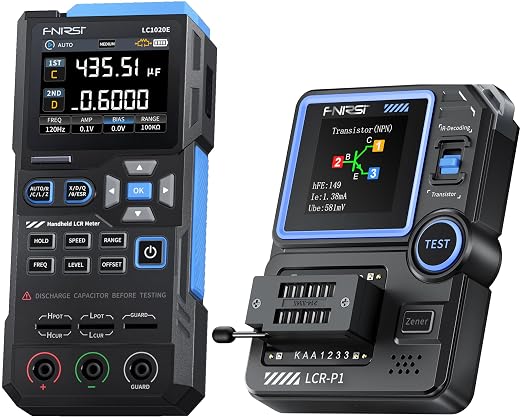

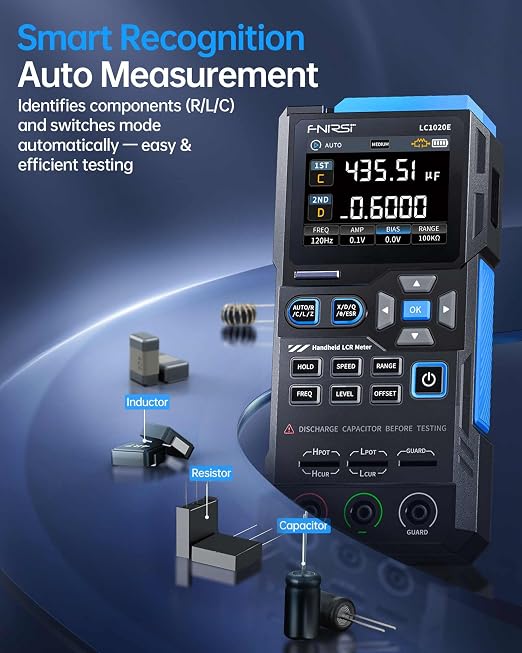

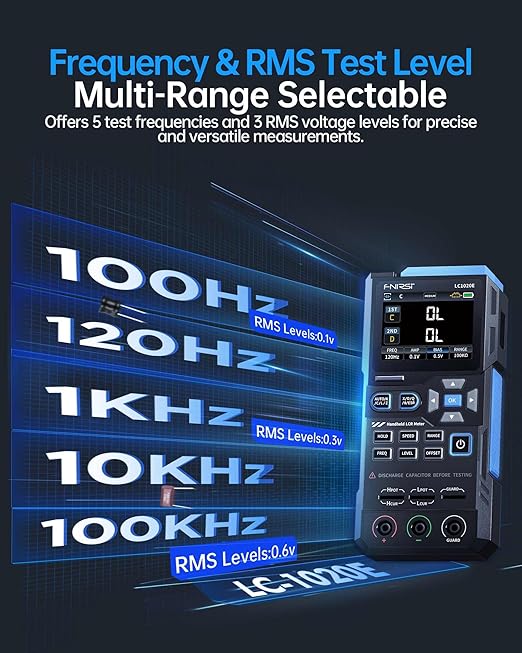

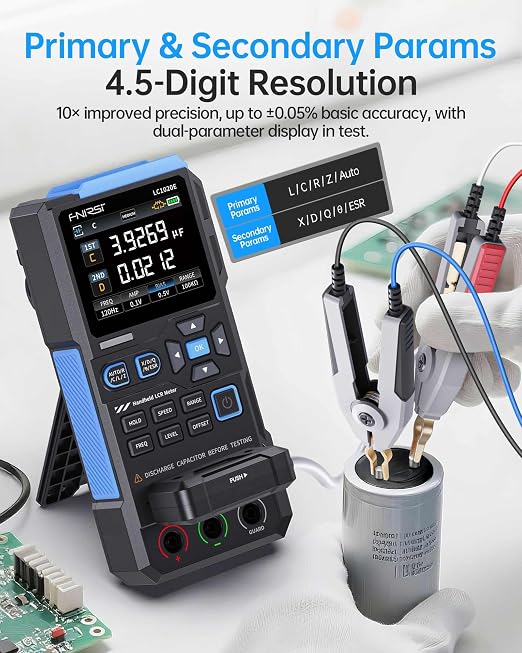

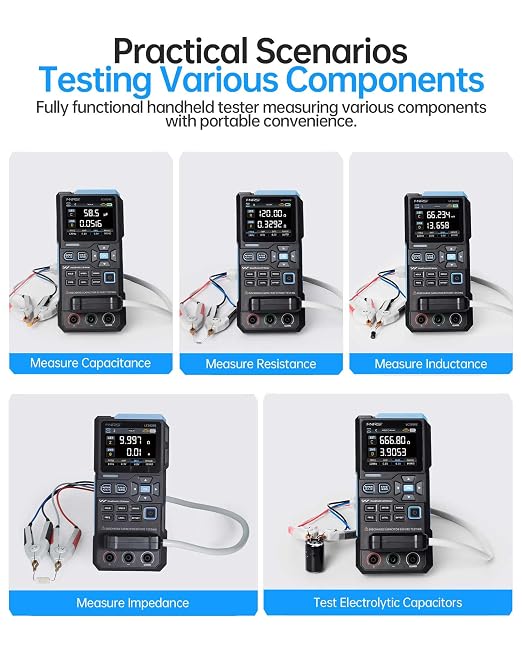

【Dual Parameter】FNIRSI LC1020E LCR Meter supports AUTO, Capacitance, Resistance, and Inductance with main/secondary parameters (X/D/Q/θ/ESR) shown simultaneously. Frequencies: 100Hz/120Hz/1kHz/10kHz/100kHz. 19,999-count display ensures precise readings.

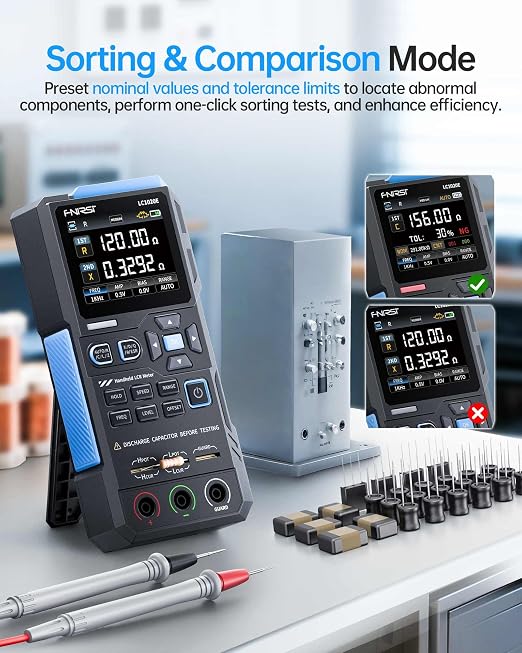

【Smart Sorting】ESR Meter with Sorting & Comparison Mode calculates relative error (%) using preset nominal/tolerance (0.1%–99.9%) for accurate component screening. Alerts via sound/LED. Supports Capacitors 1pF–100mF, Resistors 10mΩ–10MΩ, Inductors 1µH–100H.
【Reliable Testing】Capacitance meter supports open/short calibration, adjustable test voltage (0.1/0.3/0.6V) and internal bias (0.0/0.5V). Records if components meet preset nominal/tolerance, tracking success/fail counts. Data hold locks readings. 100Ω output ensures accuracy. Speed: Fast (4/s), Medium (2/s), Slow (1/s).

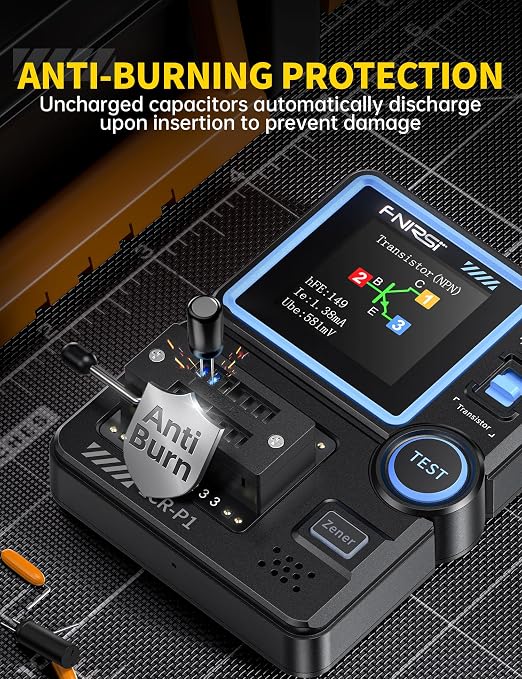

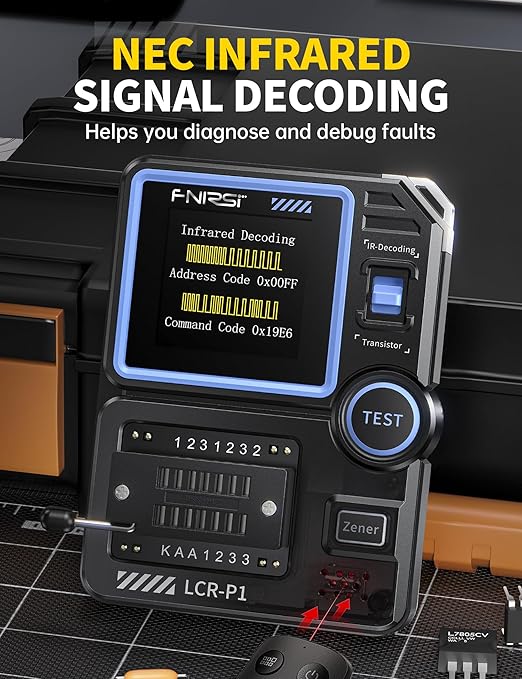

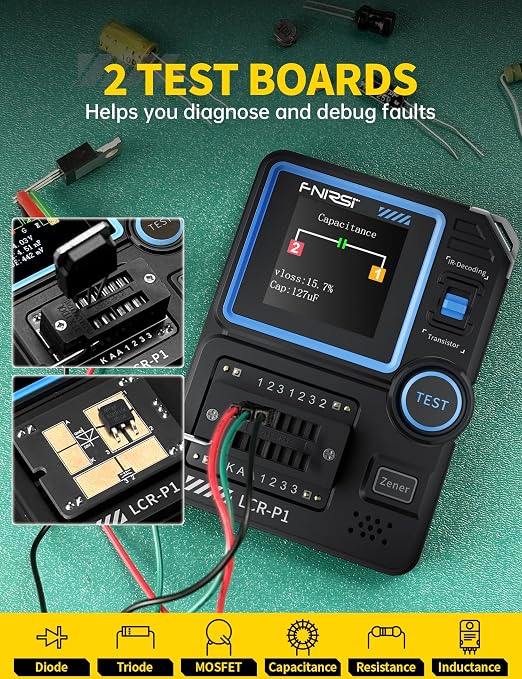

Transistor Capacitor Tester: FNIRSI LCR-P1 transistor tester can be used for the measurement and analysis of patch component, NPN, PNP, triode, MOS, field effect transistor (FET), diode, Zener diode, capacitor, resistor, inductor, battery, etc.
Transistor Capacitor Tester: FNIRSI LCR-P1 transistor tester can be used for the measurement and analysis of patch component, NPN, PNP, triode, MOS, field effect transistor (FET), diode, Zener diode, capacitor, resistor, inductor, battery, etc.
Overview
Brand : FNIRSI
Style : LCR Meter and Transistor Tester
Unit Count : 1.0 Count
Compatible Devices : Any device containing compatible electronic components
