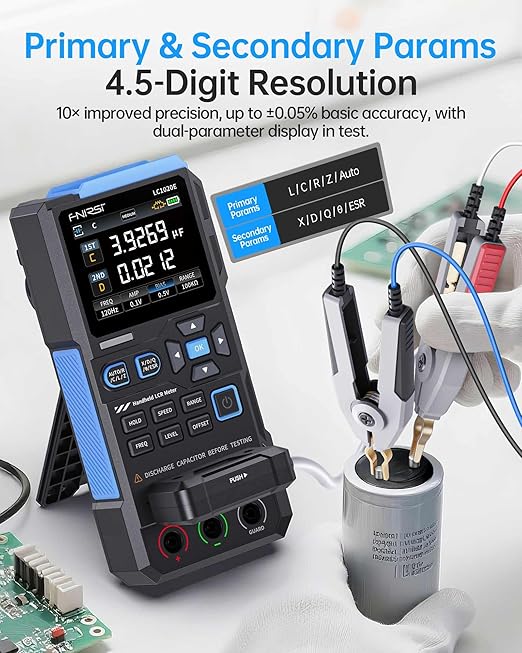

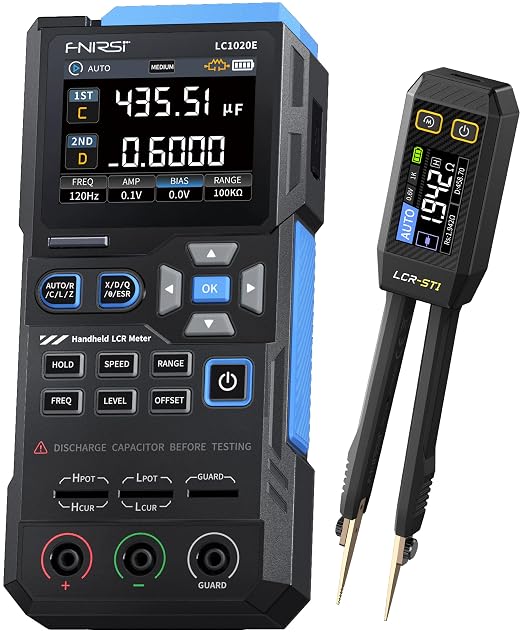

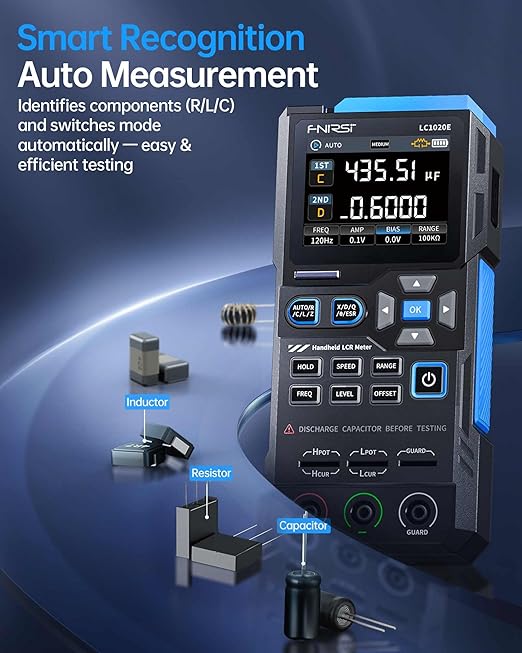

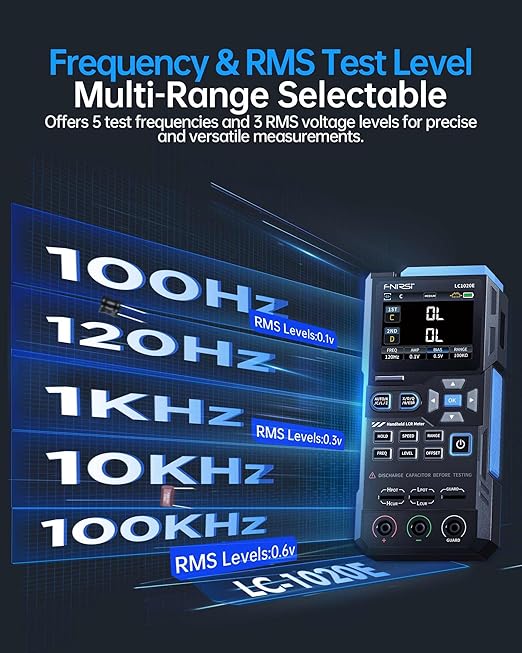

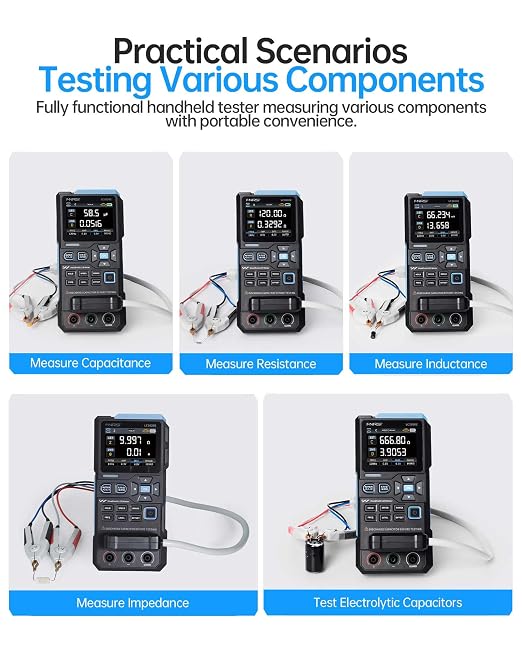

【Dual Parameter】FNIRSI LC1020E LCR Meter supports AUTO, Capacitance, Resistance, and Inductance with main/secondary parameters (X/D/Q/θ/ESR) shown simultaneously. Frequencies: 100Hz/120Hz/1kHz/10kHz/100kHz. 19,999-count display ensures precise readings.
【Smart Sorting】ESR Meter with Sorting & Comparison Mode calculates relative error (%) using preset nominal/tolerance (0.1%–99.9%) for accurate component screening. Alerts via sound/LED. Supports Capacitors 1pF–100mF, Resistors 10mΩ–10MΩ, Inductors 1µH–100H.
【Reliable Testing】Capacitance meter supports open/short calibration, adjustable test voltage (0.1/0.3/0.6V) and internal bias (0.0/0.5V). Records if components meet preset nominal/tolerance, tracking success/fail counts. Data hold locks readings. 100Ω output ensures accuracy. Speed: Fast (4/s), Medium (2/s), Slow (1/s).

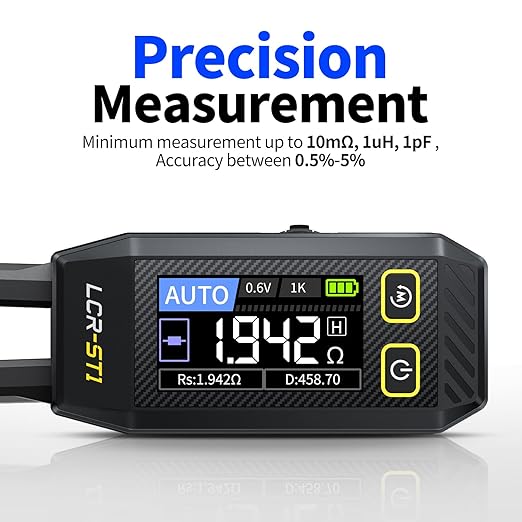

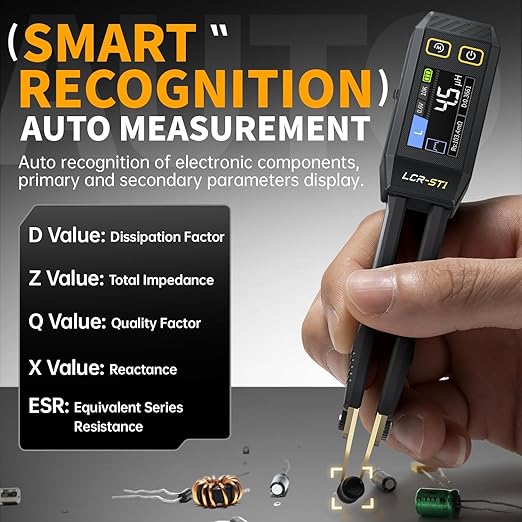

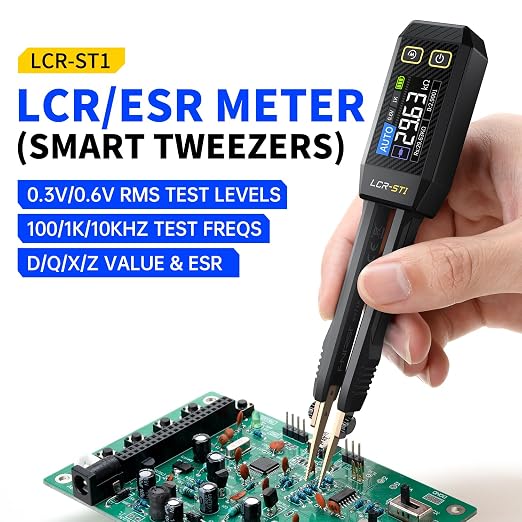

【LCR Tweezer Tester】The FNIRSI LCR-ST1 is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes.
【Measurement Range】3 test frequencies – 100 Hz, 1 kHz, 10 kHz. 2 test voltage - 0.3 Vrms, 0.6 Vrms. R: 10 mΩ to 10 MΩ / C: 1 pF to 22 mF / L:1 uH to 10 H.
