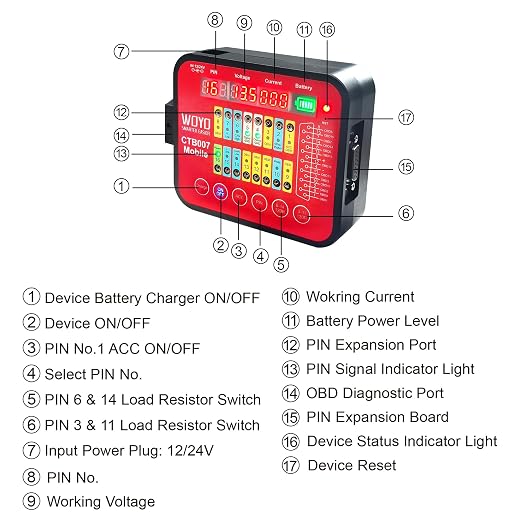

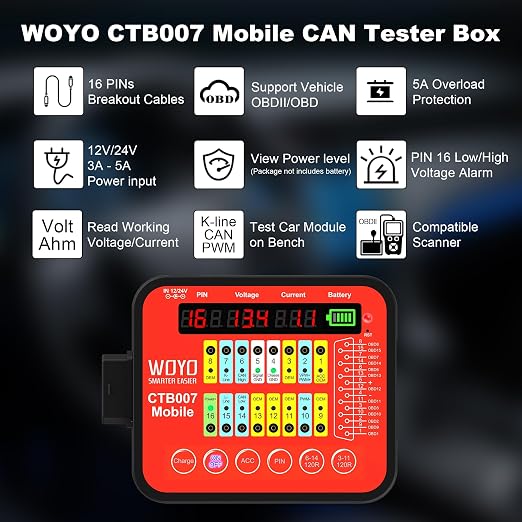

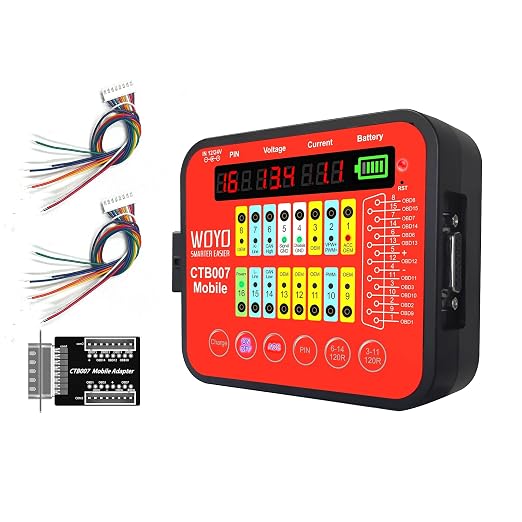

ECU Circuit Board Testing Tool on Bench, WOYO CTB007 Mobile with Built-in Resistor, OBD2 Diagnostic Tool, Digital Voltage of 16 PINs, Automotive CAN Tester Box, Support DC and Battery Power

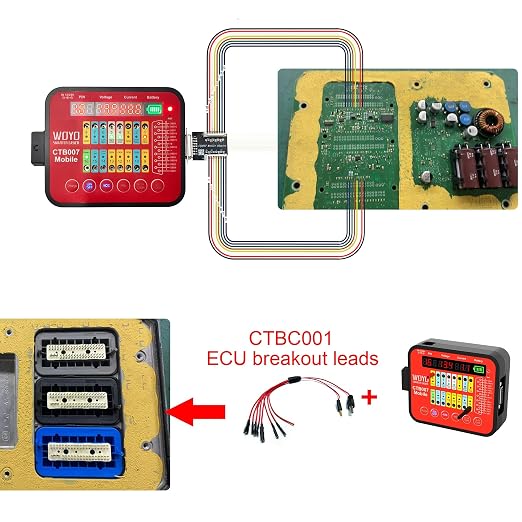

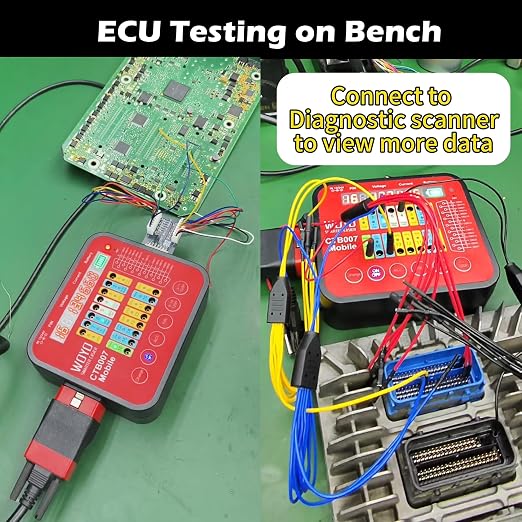

PROFESSIONAL ECU TESTING TOOL ON BENCH: When you fixed the ECU circuit board, you can test it with CTB007 MOBILE on bench before you cover it. Our device within built-in 120 ohm resistor.(PIN 6 and 14, 3 and 11)

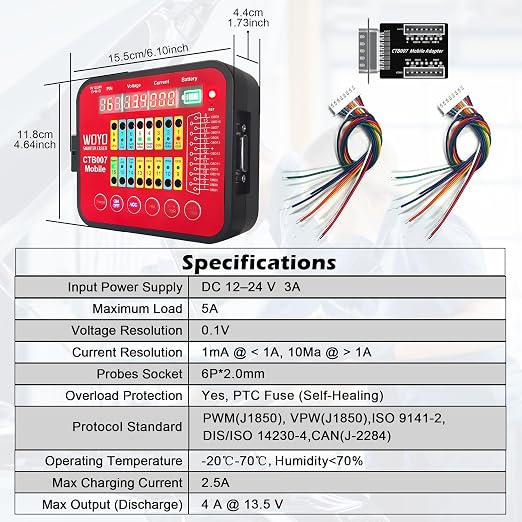

POWER SPECIFICATIONS: Features 12V/24V DC power input with 3A-5A capacity.(Package not included the batteries and power).

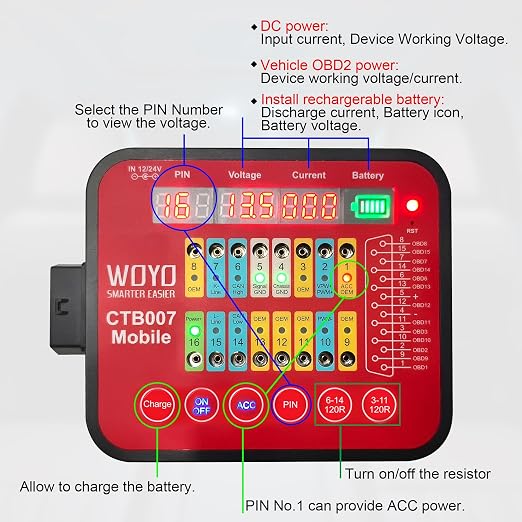

PROTECTION FEATURES:Displays designated pin voltages and communication signals (e.g., protocol activity) in real time for rapid fault identification. PIN 16 low/high voltage alarm for safe operation.
PROVIDE ACC (accessory) IGNITION: One-touch IGN/Start activation or an external wake-up interface to power the ECU on a bench and run tests.

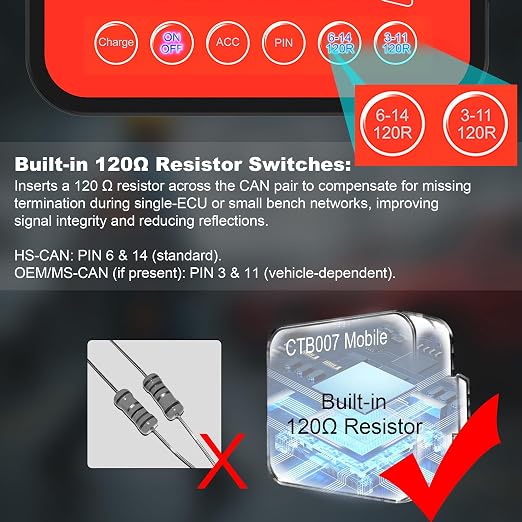

120 Ω TERMINATION SWITCHES: Inserts a 120 Ω resistor in single-ECU or small bench networks to compensate for missing termination, improving signal integrity and reducing reflections. Use termination only for bench setups or when termination is missing; turn it off during normal in-vehicle use to avoid over-termination.
Overview
Brand : WOYO
Power Source : DC Power Or Battery Power Or Vehicle Obd2 Power
Color : black and red
Item dimensions L x W x H : 6.1 x 4.64 x 1.73 inches
