About This

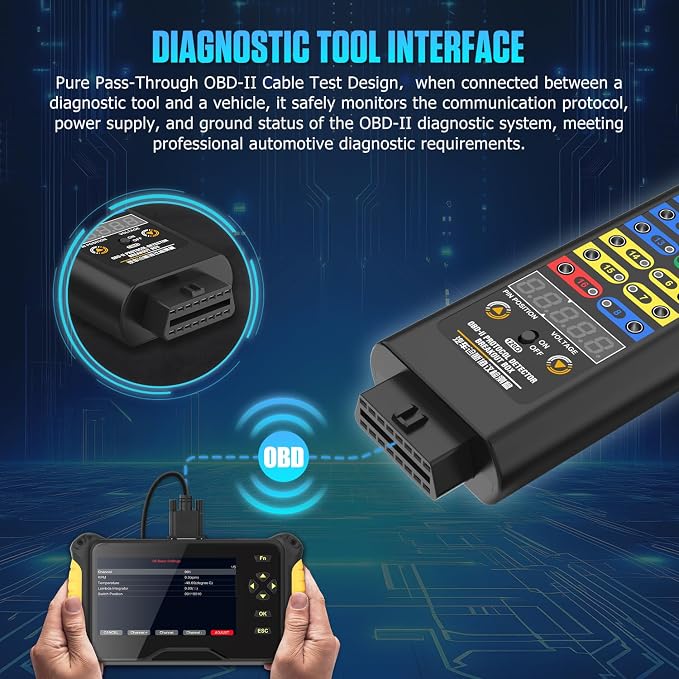

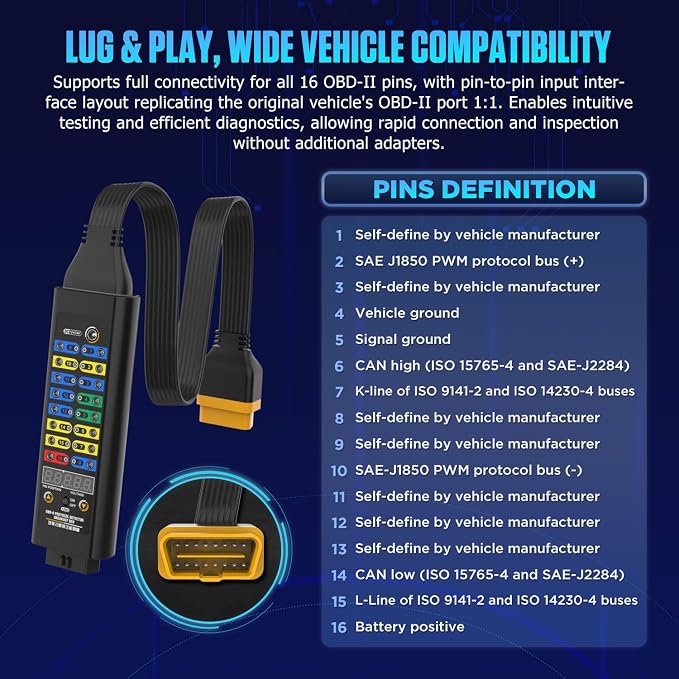

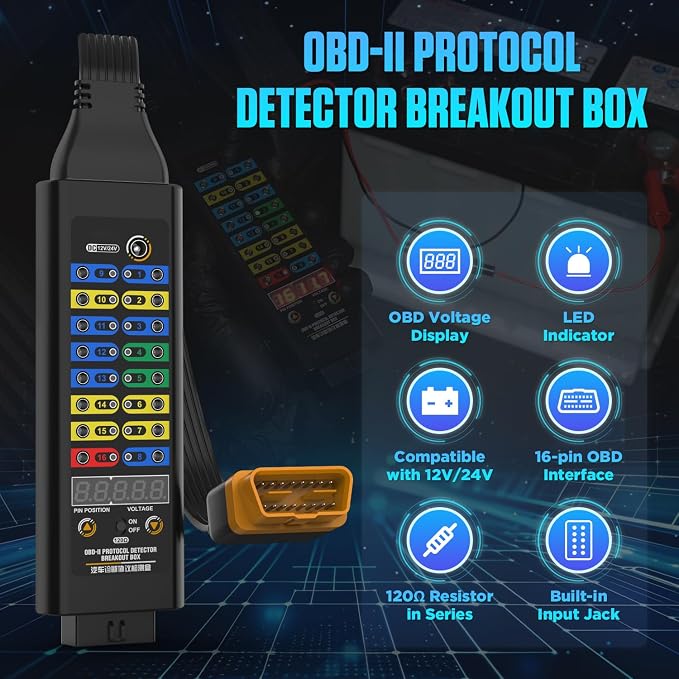

• Professional Pass-Through Design & Full OBD-II Protocol Compatibility：This OBD2 breakout box features a professional pass-through data line test design, securely connecting the OBD-II scanner to the vehicle’s onboard diagnostic system for real-time monitoring of communication protocols, power and ground lines. It fully supports mainstream automotive protocols, and achieves full 16-pin connection of the OBD-II interface with its 1:1 restored input jack layout matching the original vehicle’s OBD-II interface. This design ensures intuitive and efficient testing, meeting all professional automotive diagnostic needs of repair technicians and testing institutions without any additional adaptation
• Versatile Expansion & Stable Power Supply For Comprehensive Testing:In addition to basic OBD-II system detection, the product has a variety of expansion functions to meet comprehensive testing needs. The universal input jack supports the connection of various professional testing instruments, realizing multi-dimensional measurement of the vehicle’s on-board electrical system, and the independent DC power supply interface can provide stable power support for the vehicle ECU during testing, avoiding the impact of vehicle battery power loss on the test results and ensuring the accuracy and reliability of the detection data

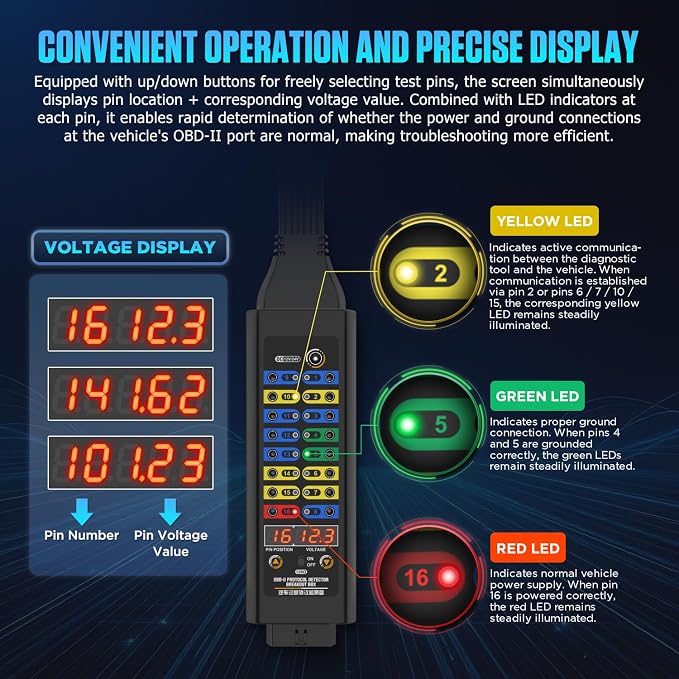

• Intuitive Operation & Real-Time Accurate Data Display:Equipped with up and down buttons for free selection of the pin to be tested, the clear screen synchronously displays the pin position and its corresponding voltage value. LED indicators on each pin can quickly identify the normal or abnormal status of the power and ground of the vehicle’s OBD-II interface, which greatly improves the efficiency of fault location and troubleshooting for automotive diagnostic work

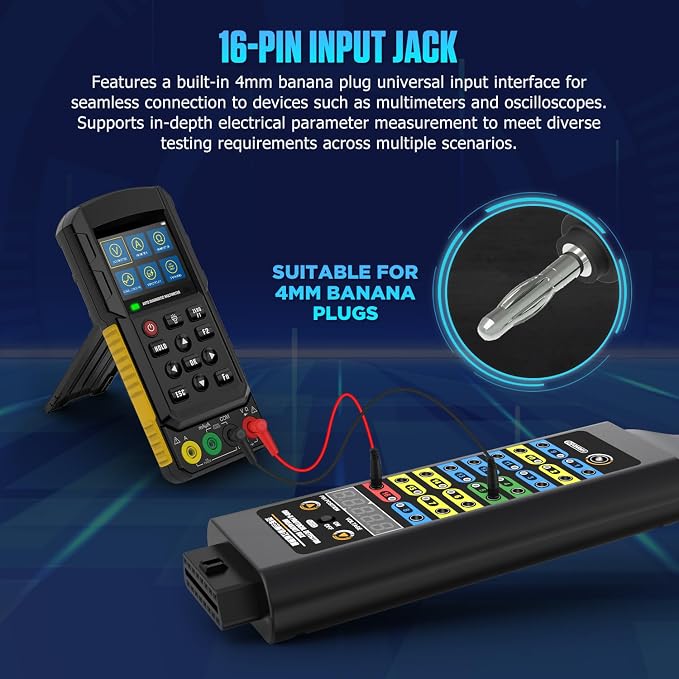

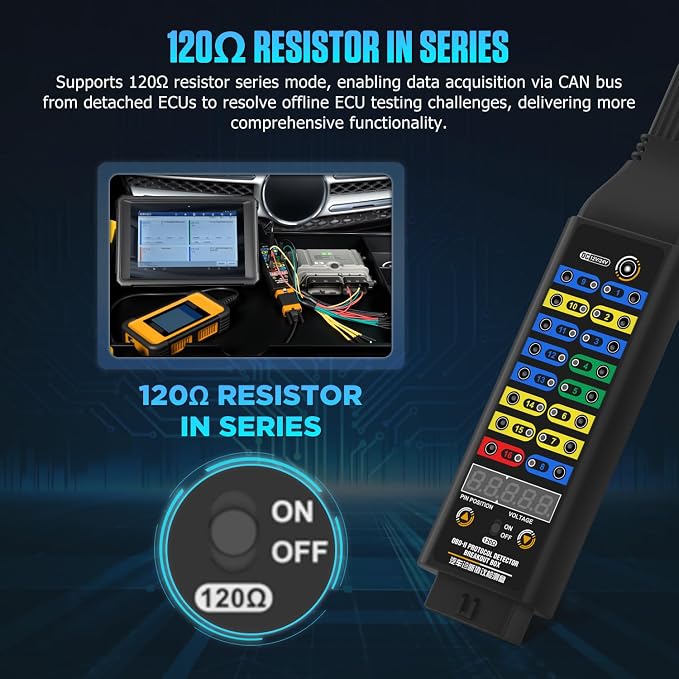

• Versatile Testing Interfaces & Offline ECU Detection Function:Built-in universal 4mm banana jack enables seamless connection to multimeters, oscilloscopes and other professional testing equipment, supporting in-depth electrical parameter measurement to meet diverse on-site testing needs. The 120Ω resistor series mode is also available to assist in collecting data from the removed ECU via the CAN bus, perfectly solving the problem of offline ECU detection and making diagnostic functions more comprehensive
• High-Quality Hardware & Exquisite Craftsmanship For Long-Term Durability：The OBD-II extension cable is made of elastic thermoplastic TPU material with multi-stranded connection data technology, which ensures faster and more stable data transmission, and has excellent performance of high elasticity, high strength, anti-bending and wear resistance, adapting to the complex and harsh use environment of auto repair workshops. The product shell is made of high-quality sheet metal, with a sturdy structure and exquisite overall workmanship.

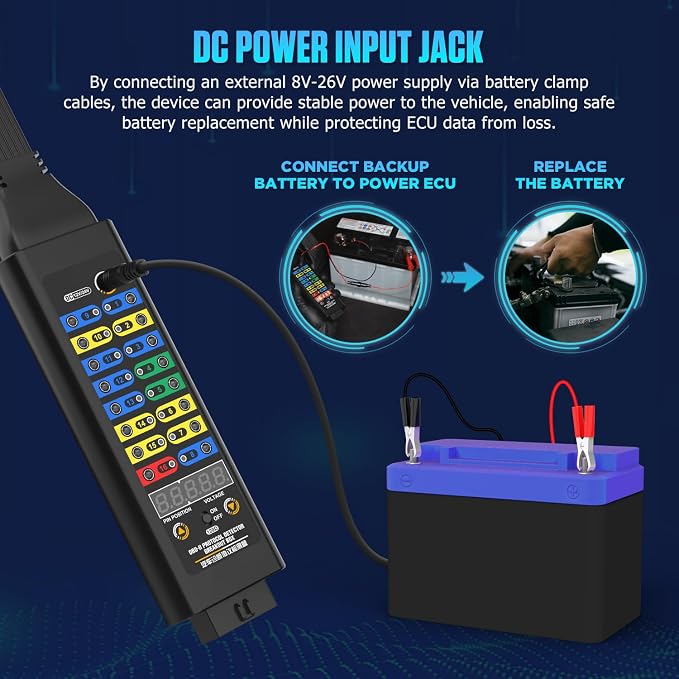

• Wide Adaptability & Multiple Safety Designs For Worry-Free Use：Boasts a wide DC 6V~30V operating voltage range, compatible with almost all vehicle models on the market, and an extensive operating temperature of -20~70°C (-4~158°F) enabling stable use across all regions and seasons. The built-in DC power interface connects to a backup battery to supply power to the vehicle ECU, preventing power loss and ensuring uninterrupted testing. Equipped with multiple safety protections, effectively avoiding damage to the vehicle’s data communication system and related circuits caused by improper operation for safe and reliable professional use

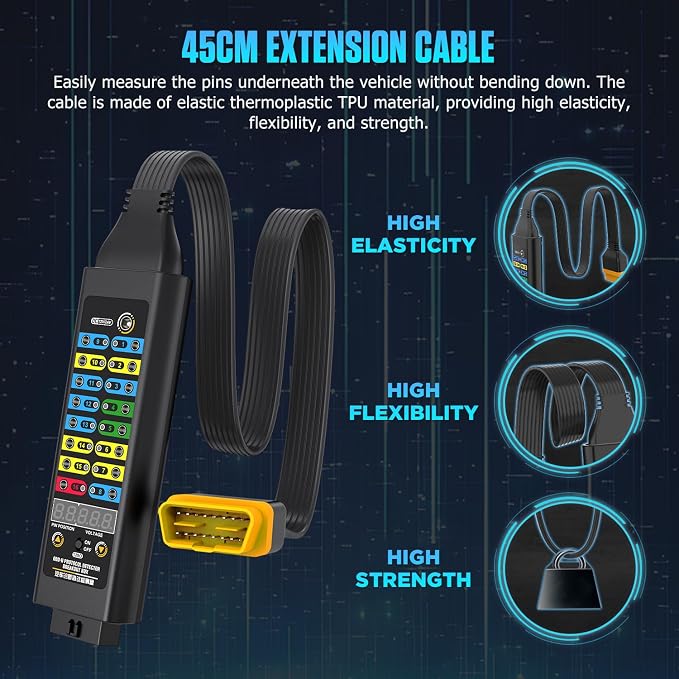

• Humanized Design & Professional Grade Positioning For Diverse Scenarios:Exclusively designed for professional auto repair personnel, automotive testing institutions and auto repair teaching, it is easy to operate with basic professional knowledge, widely applicable to vehicle fault diagnosis, on-board system maintenance, ECU detection and other professional scenarios. The 45cm long OBD-II extension cable features flexible routing, which does not occupy the limited operation space inside the car and is perfectly adapted to the narrow operating environment of the vehicle’s OBD interface position

Overview

• Brand : LINXINO
• Power Source : Corded Electric
• Operating System : Windows 10
• Screen Size : 17.7
• Automotive Fit Type : Universal Fit
