About This

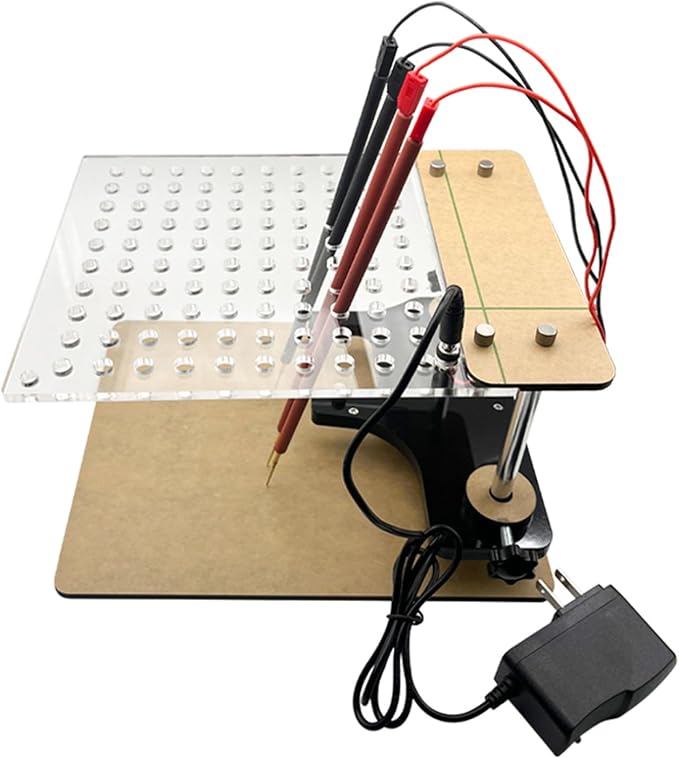

• 【Professional-Grade ECU Diagnostic & Bench Test Tool】This BDM Frame Test Board is designed for automotive technicians and DIY users, providing stable support for ECU module inspection, data reading, and fault diagnostics. The kit includes 4 precision probe pins and built-in LED lighting for clear visibility during bench testing, helping you work efficiently even in low‑light workshop environments. The sturdy structure ensures reliable signal contact and simplifies routine ECU diagnostic operations.
• 【Broad Compatibility with Diagnostic Tools】Fully compatible with mainstream automotive diagnostic tools and standard OBD2 scanners, supporting connection with 22 types of BDM adapters. This versatile test frame works with a wide range of vehicle ECU systems for domestic, European, and Asian models, making it suitable for cars, light trucks, and various control module testing scenarios.
• 【Sturdy Construction for Stable & Accurate Testing】The heavy-duty reinforced frame design ensures secure, stable contact during ECU data reading and module inspection, reducing signal interruptions and connection errors. Adjustable probe holders and a fixed mounting platform maintain consistent alignment for reliable data transmission. Built to withstand daily workshop use, it offers long service life and stable performance.

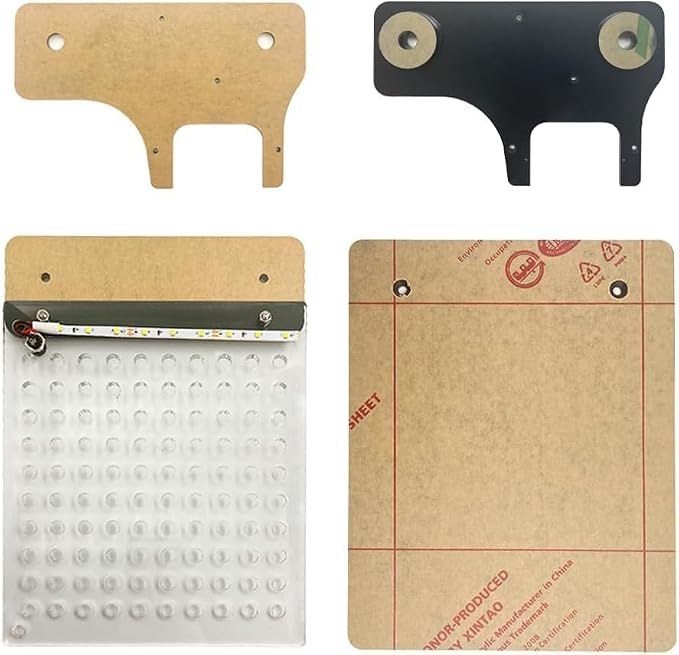

• 【All-In-One Kit for Efficient Diagnostic Workflow】This complete BDM Frame Set includes a test board, 4 probe pins, LED assembly, power adapter, and mounting hardware. No extra tools are required for most standard module inspection tasks, saving time and cost. The user-friendly design is suitable for experienced technicians and beginners alike, simplifying routine ECU diagnostic procedures.
• 【Versatile for Multiple Automotive Diagnostic Applications】Ideal for ECU module testing, fault code diagnosis, firmware verification, and brush testing. This BDM test frame provides stable connectivity and precision for professional repair shops, maintenance facilities, and home garages. It supports comprehensive control module inspection and data reading for a wide range of vehicle systems.

Overview

• Brand : VZG
• Power Source : Corded Electric
• Product Dimensions : 5.9"L x 3.94"W x 0.75"H
• Operating System : Scanner
• Automotive Fit Type : Vehicle Specific Fit
