About This

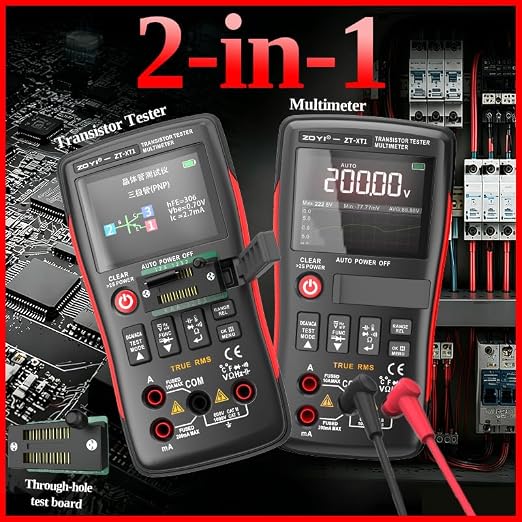

• 【2 IN 1 TRANSISTOR TESTER&MULTIMETER】：The ZT-XT1 is a newly launched high-precision 2-in-1 instrument from ZOYI&ZOTEK, integrating a digital multimeter and an automatic transistor tester. No need to switch between separate devices; it handles circuit maintenance, electronics DIY and component testing all at once

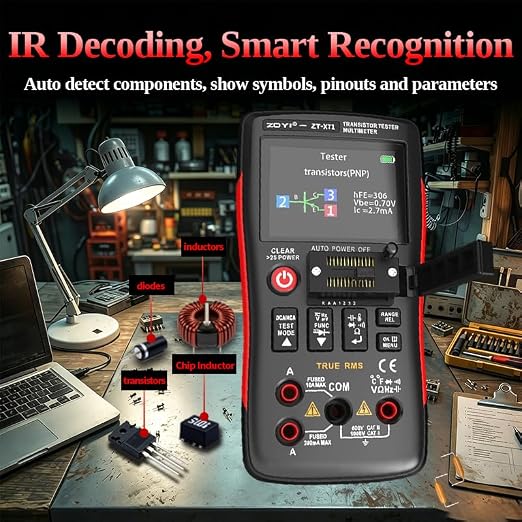

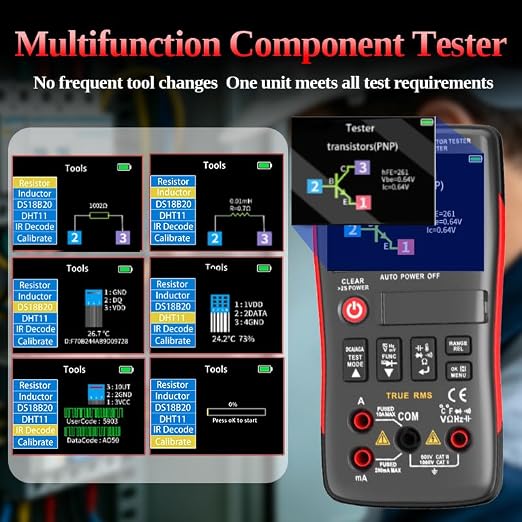

• 【AUTOMATIC TRANSISTOR TESTER】：Automatically identify–Triode: 10<β<600, Diode: Forward voltage drop<4.5V, Zener Diode: 0.01~32V, FET: JFET,IGBT,MOSFET, Thyristor: SCR/TRIAC, Resistor: 0.01~30MΩ, Capacitor: 1pF~100mF, Inductor: 10uH~1000mH, DS18B20:0~85℃, DHT11:0~60℃ 5%~95%

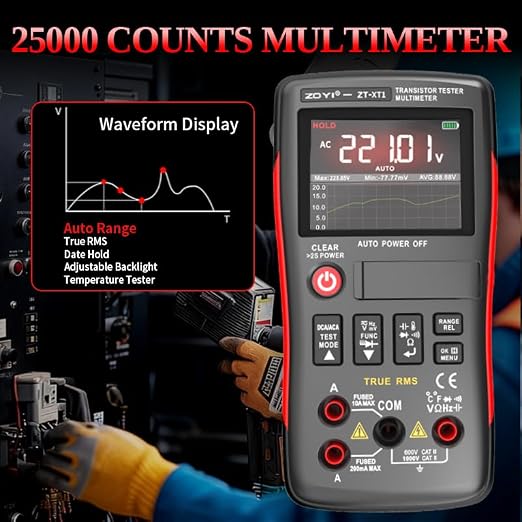

• 【25000 COUNTS MULTIMETER】：ZT-XT1 25000-count 1000KHz Multimeter with auto&manual range, True RMS measures up to 1000V DC voltage and 750V AC voltage, 10A AC/DC current, 250 MOhms resistance and, electrical tester also tests temperature, capacitance, frequency, duty-cycle, wire on-off, and test diodes and continuity
• 【EASY OPERATE】: For Transistor Tester, the ZT-XT1 built-in automatic identification, infrared decoding and auto-calibration functions. For Multimeter, the ZT-XT1 can detect Max/Min/AVG/Freq of measured values, automatically generate waveform curves and record changes of measured signals. It is a precision instrument extremely and user-friendly even for beginners
• 【SAFETY TIPS】: ZT-XT1 complies with IEC standards, with measurement categories CAT III 1000V and CAT IV 600V. Note: The measured voltage/current shall not exceed the rated maximum test values. Disconnect all power sources and discharge capacitors before measuring electronic components

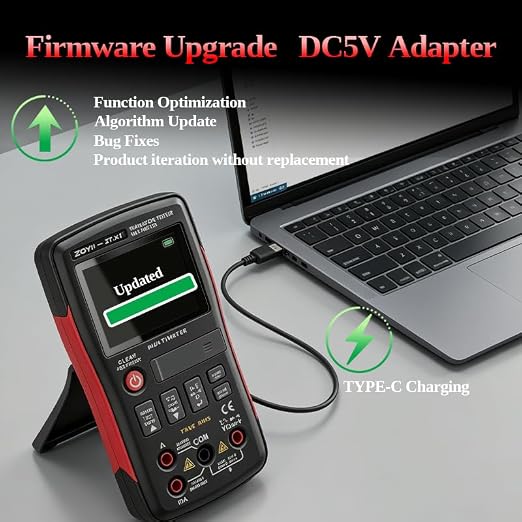

• 【AFTER-SALES SERVICE】：ZOYI & ZOTEK provides 36-month product after-sales service, 24-hour online email support, product firmware upgrade service and lifetime technical support.
• 【Zener Diode】：Under default mode, press and hold the FUNC key to enable Zener diode measurement mode, then insert the Zener diode to start testing.

Overview

• Brand : ZOYI
• Power Source : Battery Powered
• Color : black
• Unit Count : 1.0 Count
• Number of Items : 2
