About This

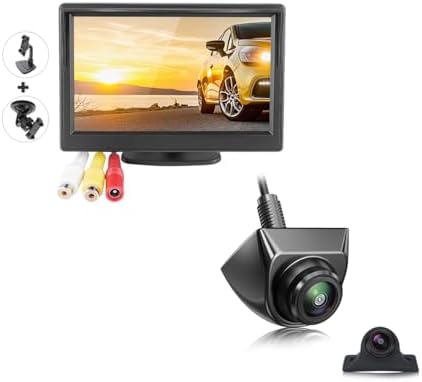

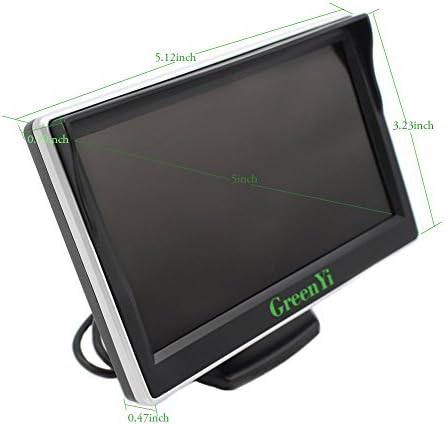

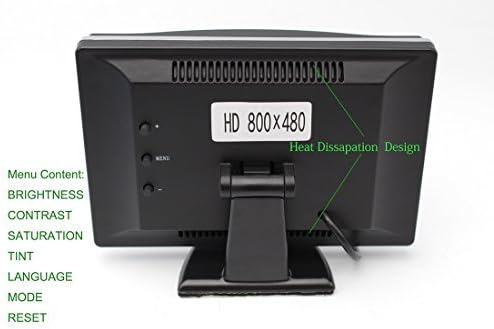

• 5Inch AHD TFT Screen Monitor---Provide better clarity for AHD backup cameras, show better image than other monitors, higher brightness and resolution than other monitors, support both AHD and CVBS video signal format cameras

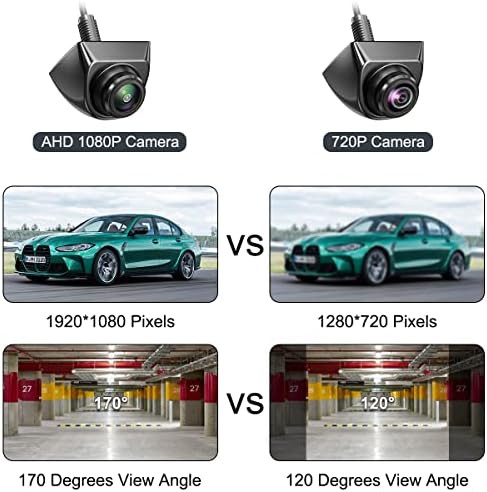

• AHD 1080P Car Backup Camera---1920x1080 pixels resolution rear view camera with AHD video signal which provides more stable video signal transmission, less interference and delay than CVBS video signal cameras. High definition which is better than 99% reverse cameras, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect, 0.01 Lux starlight night vision ensures high clarity image at any time

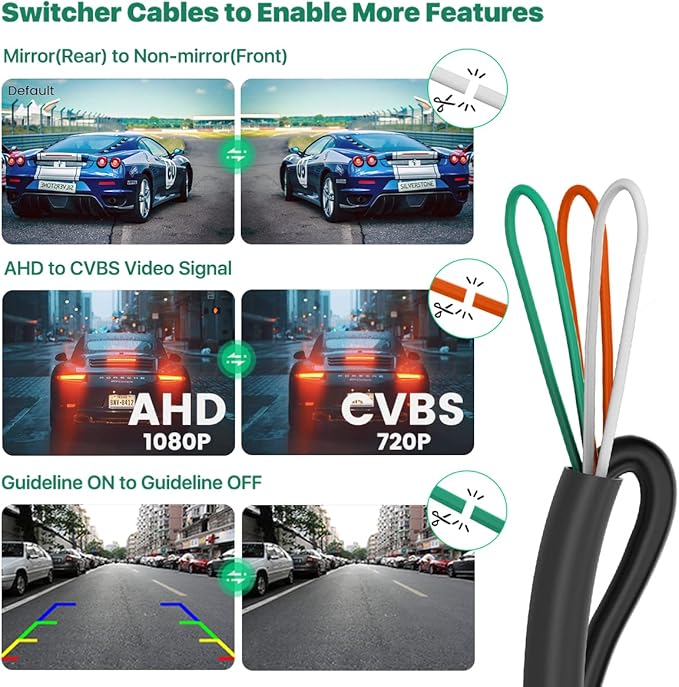

• Three Switcher Cables Camera ---Cut white cable to switch mirror image(rear view) to non-mirror image(front view). Cut orange cable to switch AHD video signal to CVBS video signal, its output video signal is AHD by default, if you need it to connect with a CVBS monitor, please cut the orange cable on the camera. Cut green cable to turn off the guide line. Please reconnect power supply after cutting any cable, you can also connect it back after cutting the cable if needed
• Monitor with Two Brackets for Different Installation---One for dashboard mounting, you can fix it on a flat position where you think convenient. The other for windshield mounting, you can choose a suitable location on the windshield to fix it

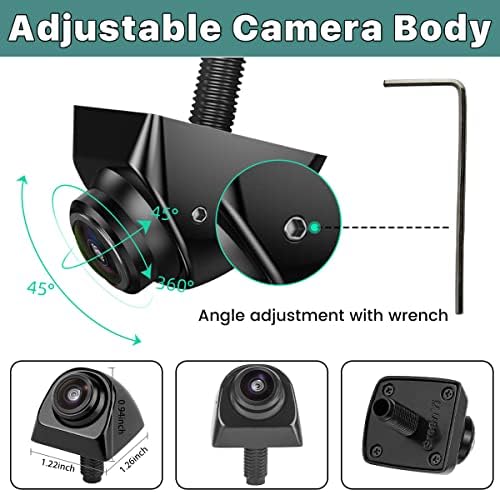

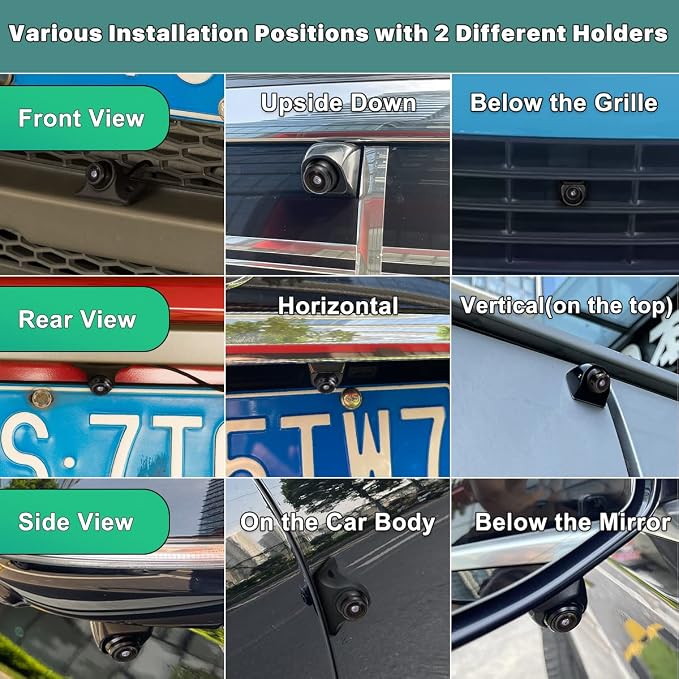

• Versatile Vehicle Front / Rear / Side View Camera---You can install the rv blind spot camera at any position you want with vertical(upside down) or horizontal mounting as the camera body is 360-degree-rotatable and there is an extra silicone shell for you if you don’t want to drill a big hole: front bumper/grille, rear deck lid/rear top/trunk handle/fender/5th wheel/tailgate, below the side mirror or on the car body, etc
