About This

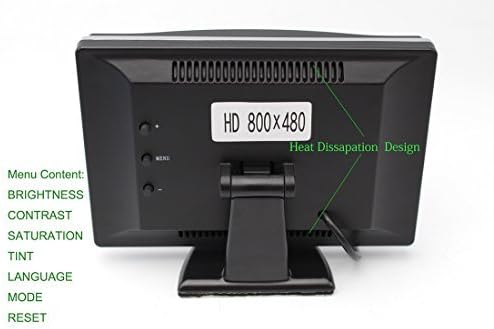

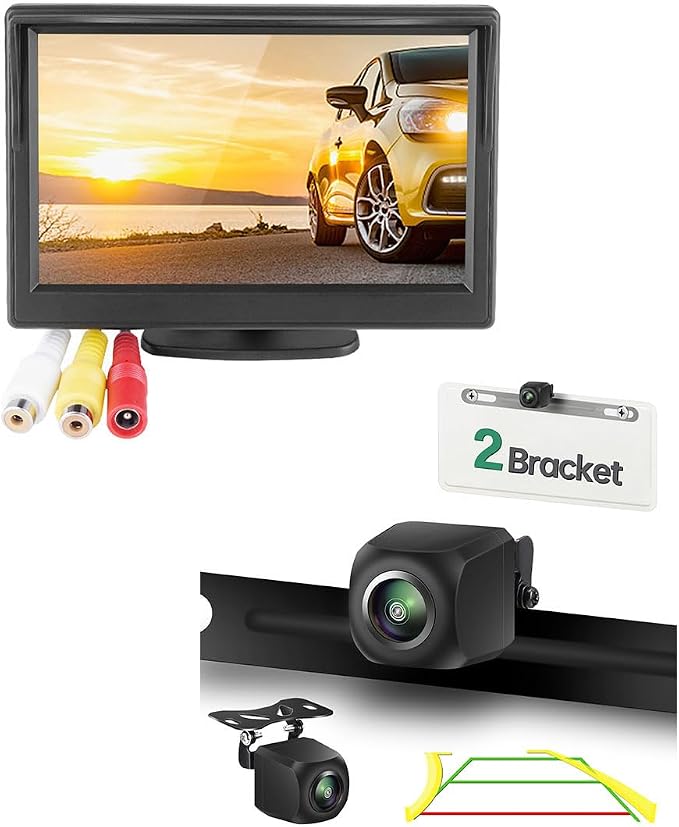

• 5Inch AHD TFT Screen Monitor---Provide better clarity for AHD backup cameras, show better image than other monitors, higher brightness and resolution than other monitors, support both AHD and CVBS video signal format cameras
• AHD 1080P High Definition Backup Camera---1054 sensor chip, 1920*1080 Pixels, 0.01 flux to support high quality night vision image, 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof, works properly under car washing or bad weather, fantastic night vision effect, can be used on Truck, SUV, Minivan, Camper, RV, Pickup and so on.

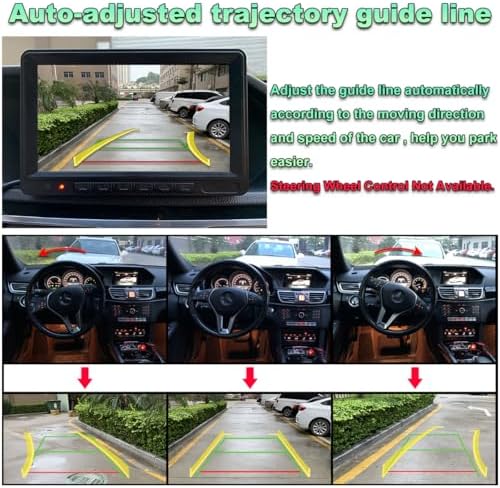

• Back Up Camera With Movable Guideline---Applying new chip, our back up camera can show trajectory guide line without extra device, its guide line automatically changes according to the car’s moving direction.

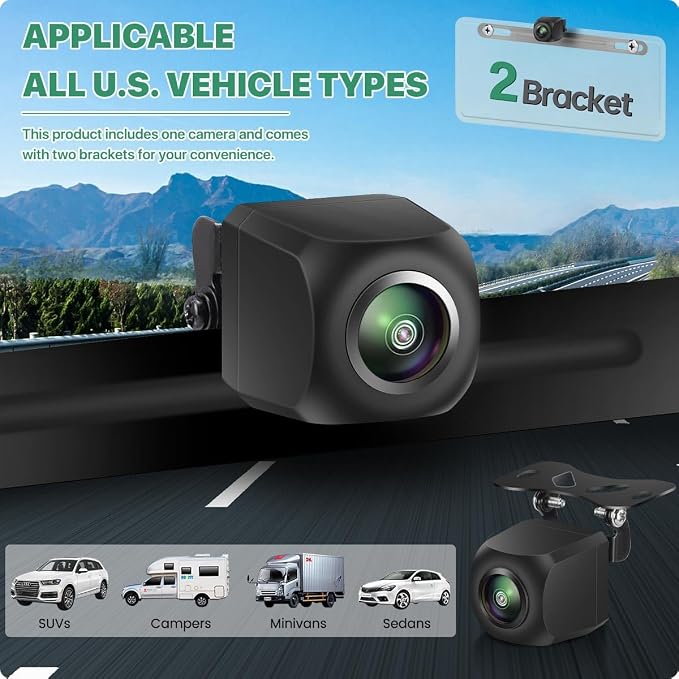

• CAN ONLY BE USED AS REAR VIEW Camera & Different Installation Methods For Your Choice---This license plate camera is with guideline and shows mirror image used as reverse camera by default. There maybe two guide lines shown on your head unit, please change the setting of your device to turn off the original one. For our license plate camera, you can install it behind of the license plate, or you may apply the mini bracket and install it above the license plate.

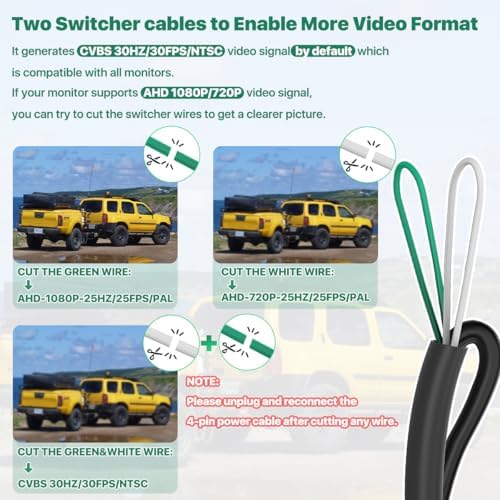

• Dynamic Trajectory Guide Line Rearview Camera with Switcher Cables--- It generates CVBS 30HZ/30FPS/NTSC video signal by default. Cut the green wire to make the camera generate AHD-1080P-25HZ/25FPS/PAL video signal. Cut the white wire to make the camera generate AHD-720P-25HZ/25FPS/PAL video signal. Cut both switcher cables to make the camera generate CVBS 30HZ/30FPS/NTSC video signal.
